21.4. logstash 配置项

21.4.1. input

21.4.1.1. 本地文件

input {
  file {
    type => "syslog"
    path => [ "/var/log/maillog", "/var/log/messages", "/var/log/secure" ]
    start_position => "beginning"
  }
}
output {
  stdout { codec => rubydebug }
  elasticsearch {
    hosts => ["127.0.0.1:9200"]
  }
}


21.4.1.2. TCP/UDP

input {
  file {
    type => "syslog"
    path => [ "/var/log/secure", "/var/log/messages", "/var/log/syslog" ]
  }
  tcp {
    port => "5145"
    type => "syslog-network"
  }
  udp {
    port => "5145"
    type => "syslog-network"
  }
}
output {
  elasticsearch {
    hosts => ["127.0.0.1:9200"]
  }
}


21.4.1.3. Redis

input {
  redis {
    host => "127.0.0.1"
    port => "6379"
    key => "logstash:demo"
    data_type => "list"
    codec  => "json"
    type => "logstash-redis-demo"
    tags => ["logstashdemo"]
  }
}

output {
  elasticsearch {
    hosts => ["127.0.0.1:9200"]
  }
}



指定 Database 10


root@netkiller /etc/logstash/conf.d % cat spring-boot-redis.conf
input {
 redis {
  codec => json
  host => "localhost"
  port => 6379
  db => 10
  key => "logstash:redis"
  data_type => "list"
 }
}

output {
  stdout { codec => rubydebug }
  elasticsearch {
    hosts => ["127.0.0.1:9200"]
    index => "logstash-api"
  }
}

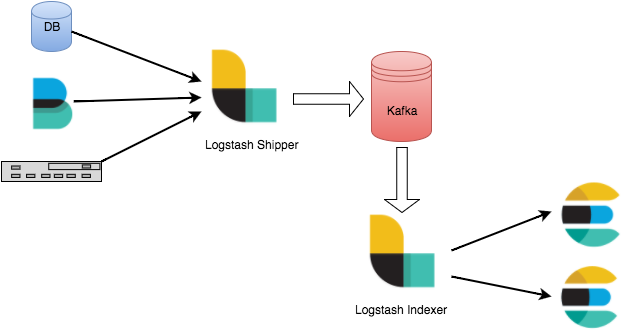

21.4.1.4. Kafka


input {
  kafka {
   zk_connect => "kafka:2181"
   group_id => "logstash"
   topic_id => "apache_logs"
   consumer_threads => 16
  }
}


21.4.1.5. jdbc

root@netkiller /etc/logstash/conf.d % cat jdbc.conf
input {
  jdbc {
    jdbc_driver_library => "/usr/share/java/mysql-connector-java.jar"
    jdbc_driver_class => "com.mysql.jdbc.Driver"
    jdbc_connection_string => "jdbc:mysql://localhost:3306/cms"
    jdbc_user => "cms"
    jdbc_password => "123456"
    schedule => "* * * * *"
    statement => "select * from article where id > :sql_last_value"
    use_column_value => true
    tracking_column => "id"
    tracking_column_type => "numeric"
    record_last_run => true
    last_run_metadata_path => "/var/tmp/article.last"
  }
  jdbc {
    jdbc_driver_library => "/usr/share/java/mysql-connector-java.jar"
    jdbc_driver_class => "com.mysql.jdbc.Driver"
    jdbc_connection_string => "jdbc:mysql://localhost:3306/cms"
    jdbc_user => "cms"
    jdbc_password => "123456"
    schedule => "* * * * *"	#定时cron的表达式,这里是每分钟执行一次
    statement => "select * from article where ctime > :sql_last_value"
    use_column_value => true
    tracking_column => "ctime"
    tracking_column_type => "timestamp"
    record_last_run => true
    last_run_metadata_path => "/var/tmp/article-ctime.last"
  }

}
output {
    elasticsearch {
    	hosts => "localhost:9200"
        index => "information"
        document_type => "article"
        document_id => "%{id}"
        action => "update"
        doc_as_upsert => true
    }
}



21.4.2. filter

21.4.3. output

21.4.3.1. file 写入文件

output {
    file {
        path => "/path/to/%{host}/%{+yyyy}/%{+MM}/%{+dd}.log.gz"
        message_format => "%{message}"
        gzip => true
    }
}


21.4.3.2. elasticsearch

output {
  stdout { codec => rubydebug }
  elasticsearch {
    hosts => ["127.0.0.1:9200"]
    index => "logging"
  }
}


21.4.3.2.1. 自定义 index

配置实现每日切割一个 index


index => "logstash-%{+YYYY.MM.dd}"


"_index" : "logstash-2017.03.22"



index 自定义 logstash-%{type}-%{+YYYY.MM.dd}


input {

    redis {
        data_type => "list"
        key => "logstash:redis"
        host => "127.0.0.1"
        port => 6379
        threads => 5
        codec => "json"
    }
}
filter {

}
output {

    elasticsearch {
        hosts => ["127.0.0.1:9200"]
        index => "logstash-%{type}-%{+YYYY.MM.dd}"
        document_type => "%{type}"
        workers => 1
        flush_size => 20
        idle_flush_time => 1
        template_overwrite => true
    }
    stdout{}
}


21.4.3.3. exec 执行脚本

output {
    exec {
        command => "sendsms.php \"%{message}\" -t %{user}"
    }
}


21.4.3.4. stdout
output {
	stdout { codec => rubydebug }
}
