前言
经过三个月的努力《PostgreSQL 实用实例参考》正式版终于推出了。因为最近换了工作，新公司的工作也很忙所以文档进展很慢，从最初几十页写到现在200页的文档，每天写文档的时间越来越少，有时一周也就只写2页，甚至一周一字未对。
正式版推出了，然后就是不断的修正。可能这段时间《PostgreSQL 实用实例参考》更新会更慢些。因为我还有其它文档要写：《OpenLDAP 文档》、《PHP + Corba + Python文档》、《JBuilder + Weblogic + PostgreSQL 开发EJB》。。。。。
文档中所有例子，都是在工作总结出来的，如有错误请指正。本人爱写错别字（哈哈）如果你发现了有错字，请发邮件给我netkiller(at)9812(dot)net修正文档。
300页之后不再推出HTML格式的文档了，之后的文档以PDF、PS（PostScript）格式为主，我是使用Microsoft Word写文档，处理300页的文档很困难，在保存文档或将doc文件转成其它格式的文件时经常会出现无响应。我也考虑过使用docbook / latex，或Page Maker。前者非所见即所得，要用户使用XML撰写，通过make一类的命令可以生成多种格式的文档，docbook也是UNIX手册的标准格式。后者Page Maker不用说了，Adobe出品，生成PDF更好些。
这是我第一次写一篇如此长的文档，没有经验，写的不好，不敢称为“书”，所以我叫它“文档”。
1.1 本文档的读者对象
文档面向有一定数据库基础用户。在这里我假设你对数据有一定认识，能够使用create创建数据与表，能够使用select、insert、update等语句操作数据库记录。
不管是谁，我希望这本文档都能对你有所帮助。
1.2 本文档主要内容
第一章 主要介绍PostgreSQL
第二章 是开发中遇到的一些问题
附录中一些SQL脚本文件，可供用户参考。
1.3 怎样使用本文档
边看、边做、边试验，然后总结，多动脑。有问题先查查这本文档，如果文档中没有提到，再考虑其它方式，或与我联系。
作者简介
作者信息：
陈景峰，昵称：netkiller, UNIX like爱好者,研究方向群集系统、网络安全、数据仓库与数据挖掘、LDAP、J2EE，Corba，企业解决方案。
主页地址：
ICQ:101888222
Yahoo:snetkiller
AIM:xnetkiller
网易泡泡：openunix@163.com
E-Mail: openunix@163.com
有问题最好给我发Email或去下面的Newsgroup里讨论
news://news.cdut.edu.cn/cn.lang.java
news://news.cdut.edu.cn/cn.lang.python
Web Newsgroup:
http://202.103.190.130:8080/news
我常去的BBS：
目录
2.4 PostgreSQL
8.0 beta for windows版本安装
13.2.3.1 setCharacterEncoding()
方案

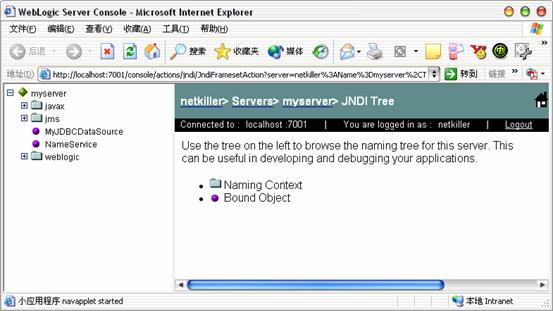

13.3 Tomcat JNDI Datasource 配置
13.5.1 Create

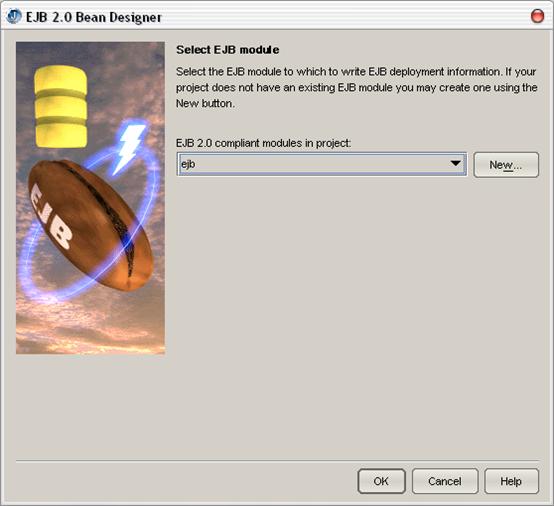

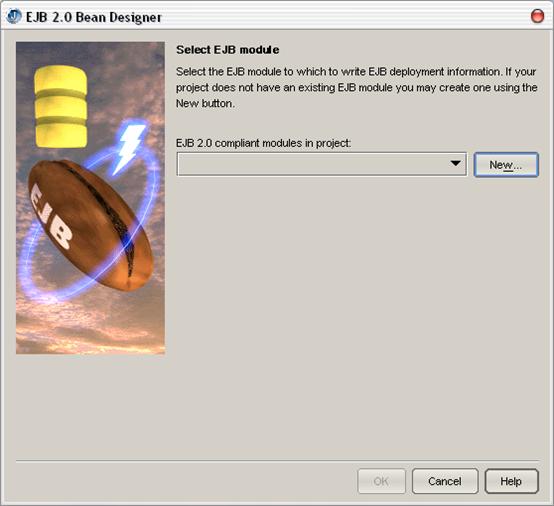

Java Entity Bean (not EJB CMP)
14.2 set
CLIENT_ENCODING TO 'GB18030';方案
14.5 在标准I/O上使用
Linux iconv 命令方案

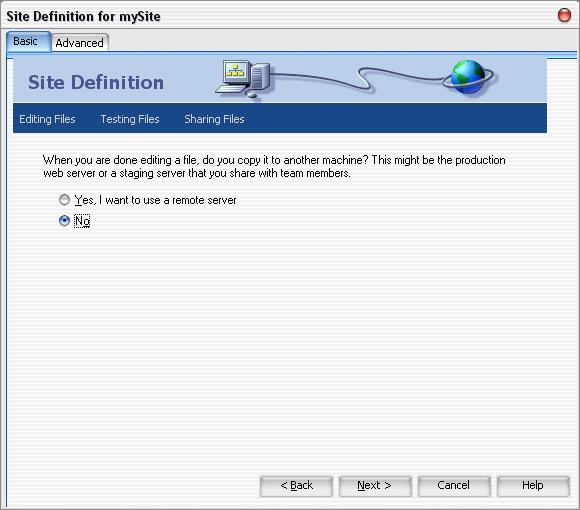

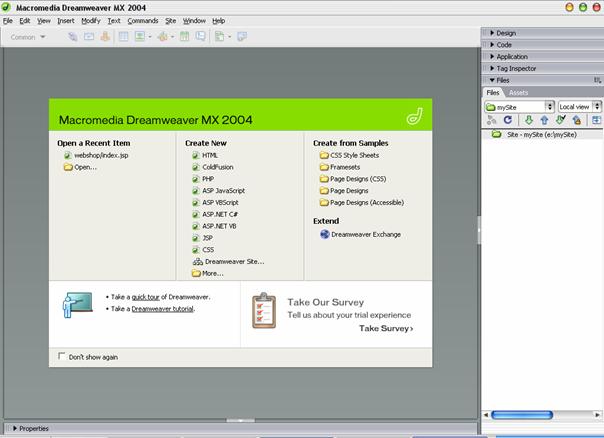

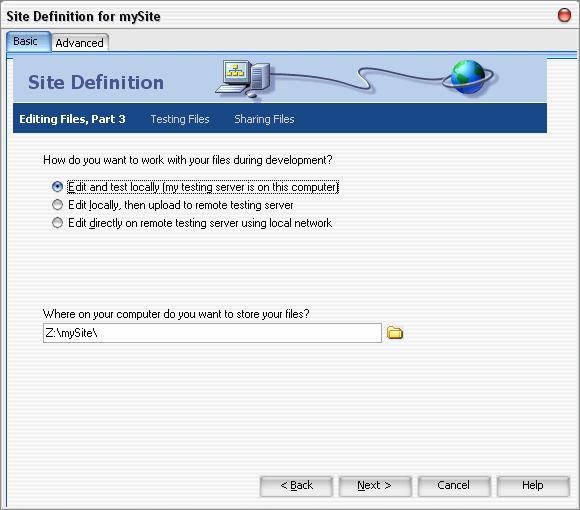

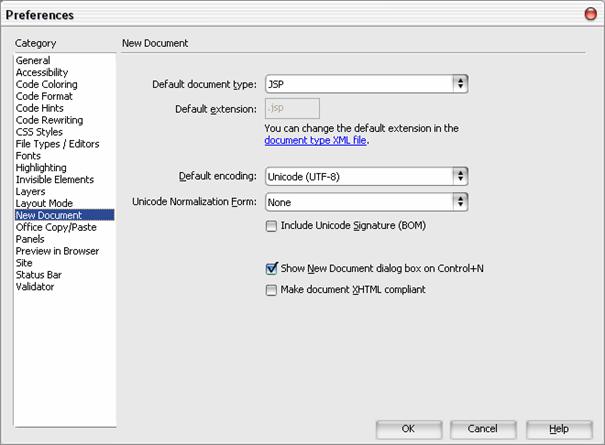

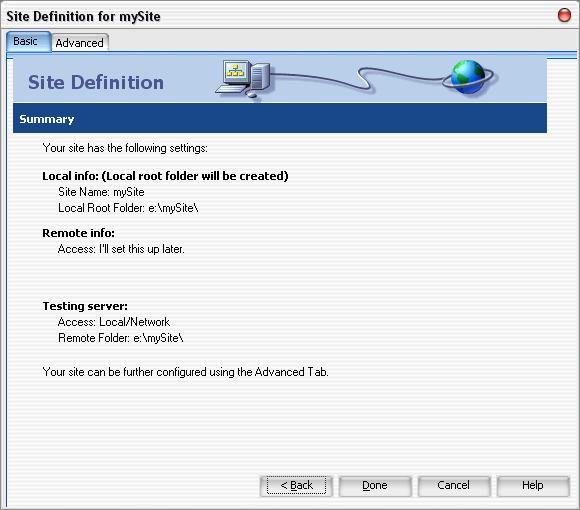

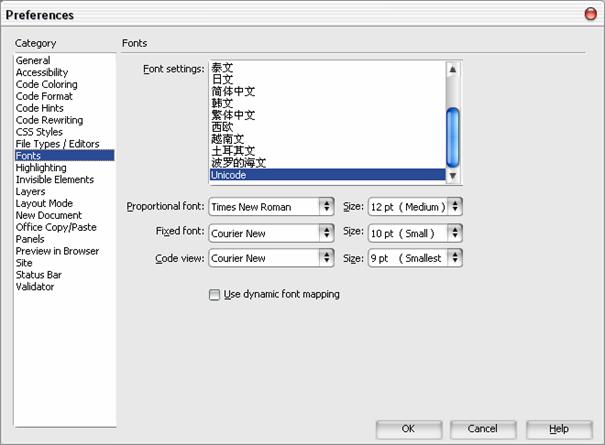

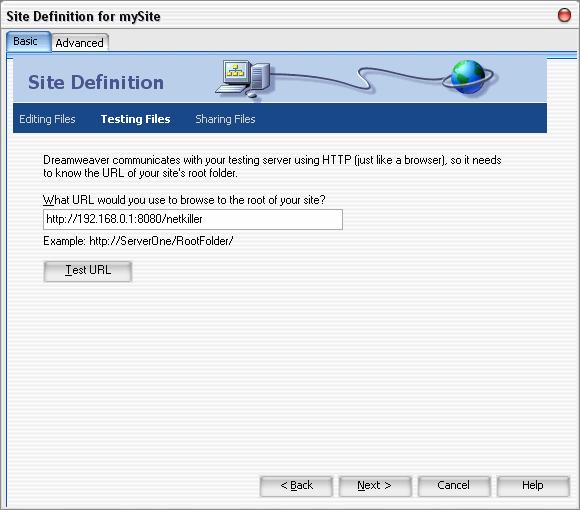

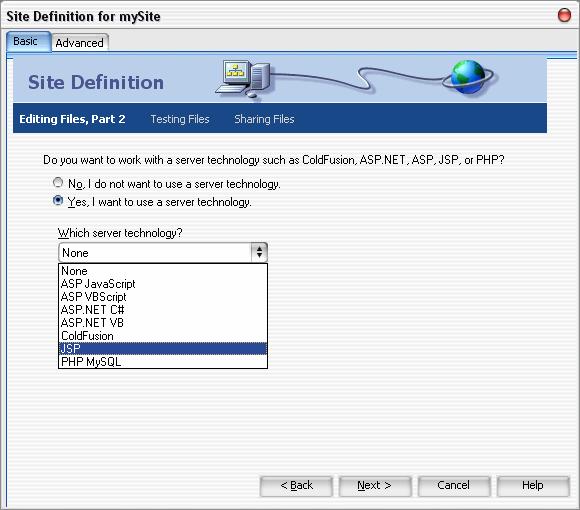

15.1 Macromedia
Dreamweaver MX 2004 JSP开发环境的配置

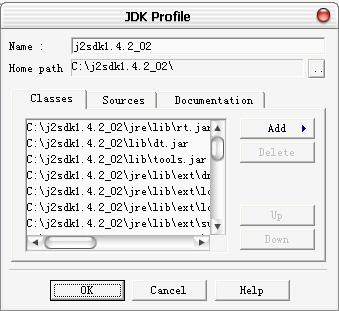

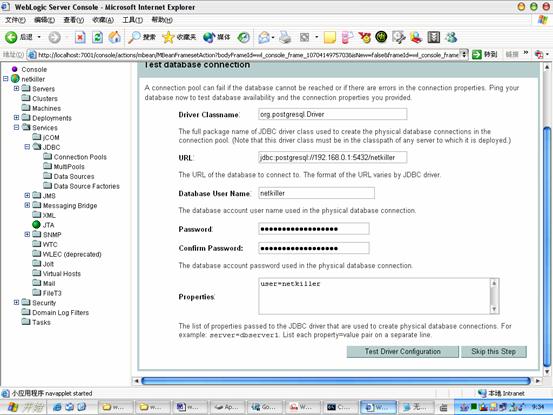

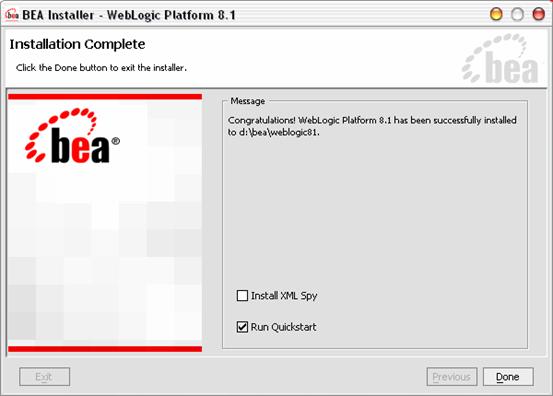

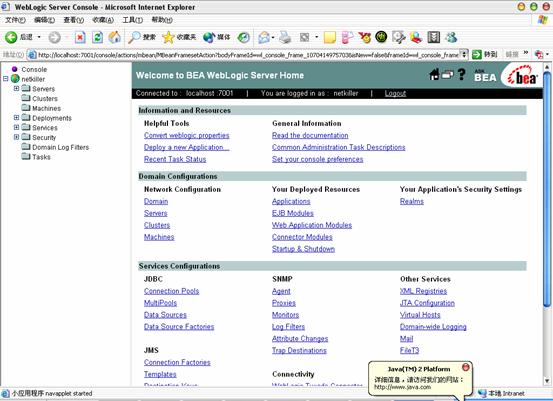

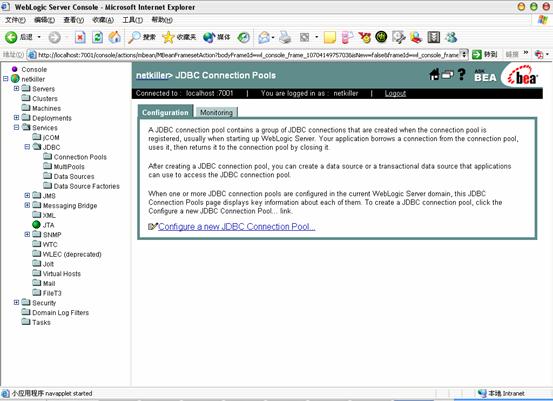

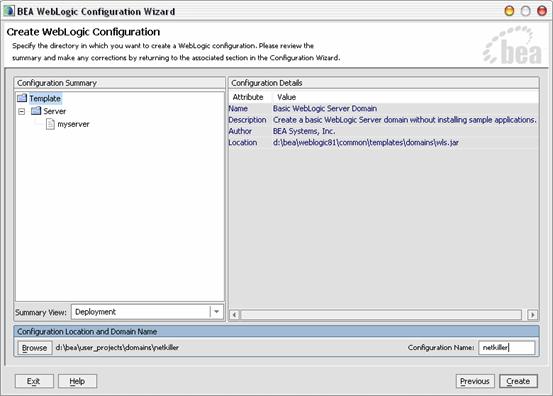

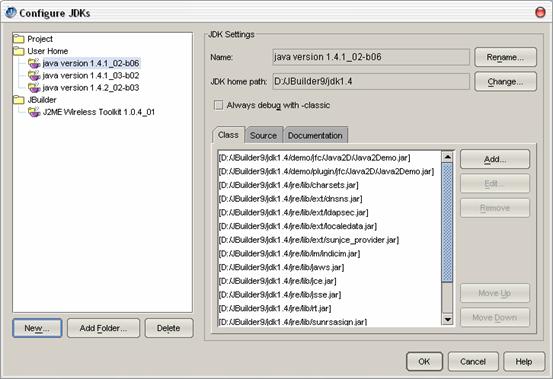

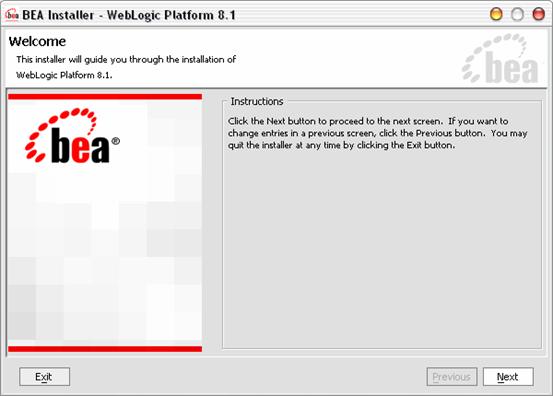

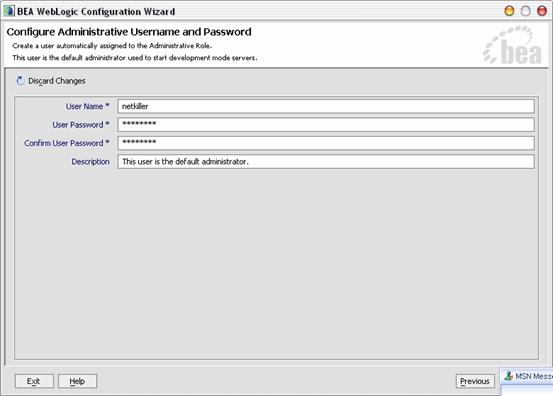

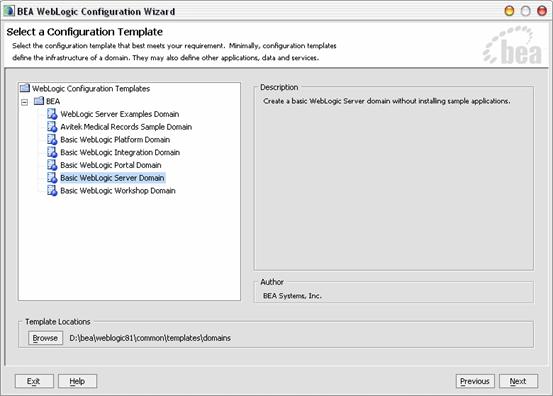

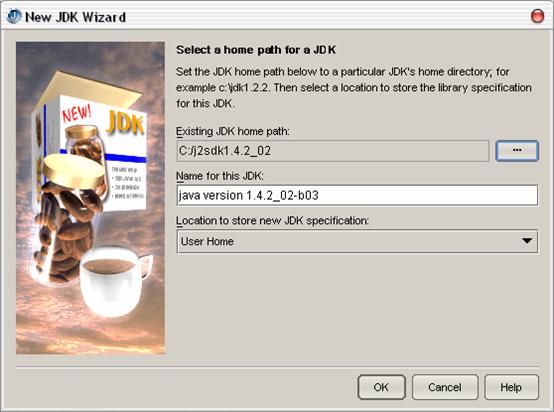

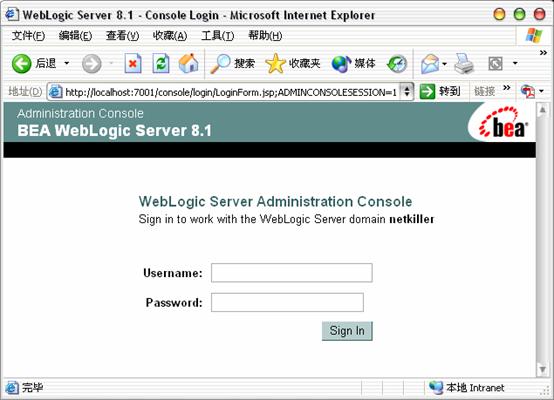

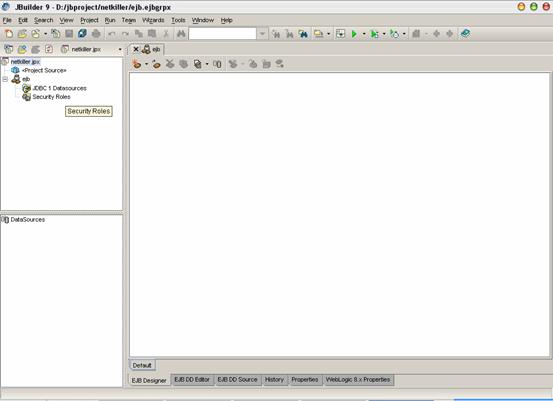

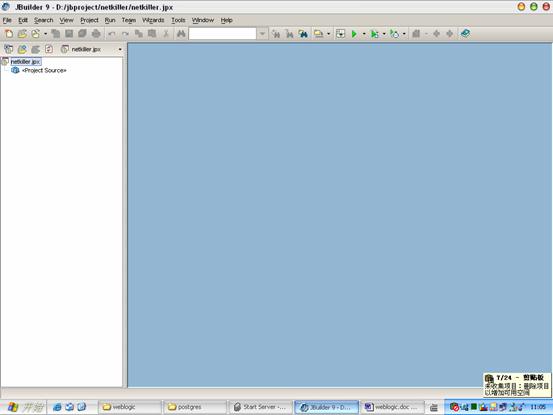

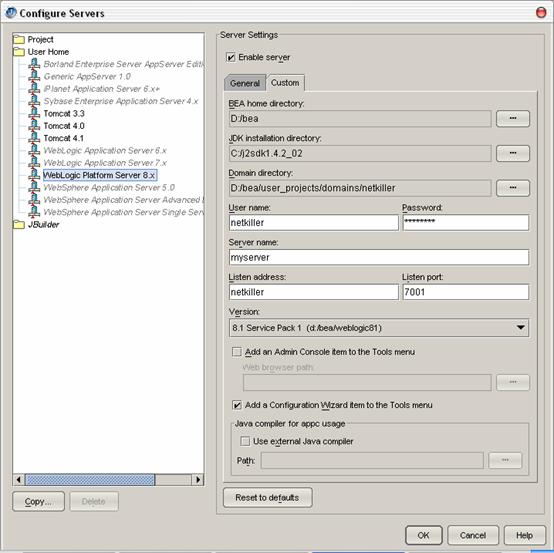

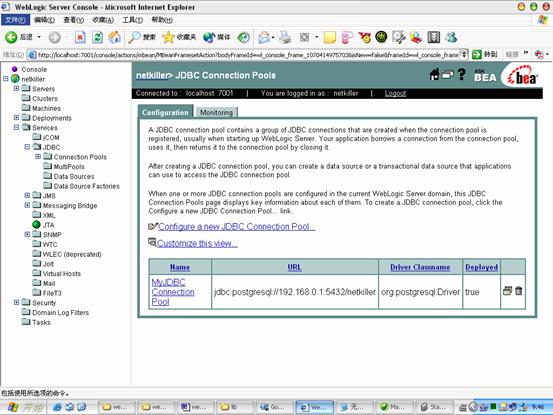

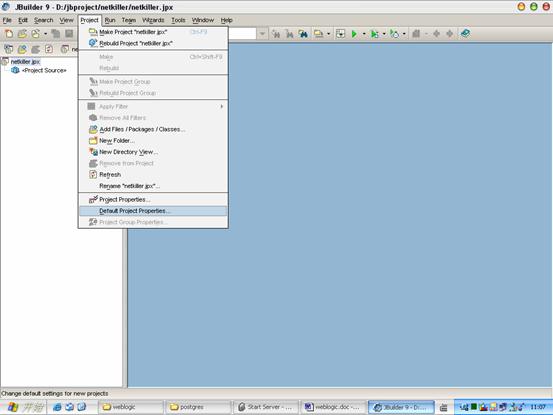

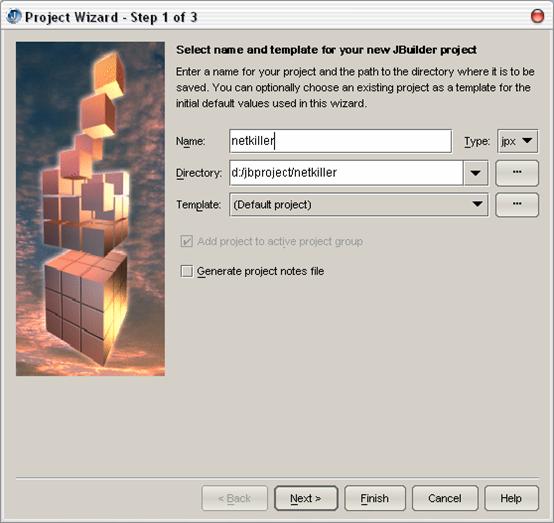

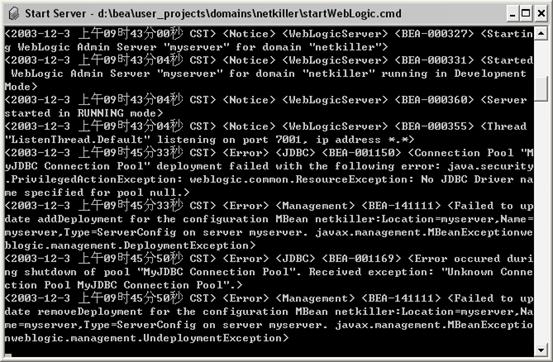

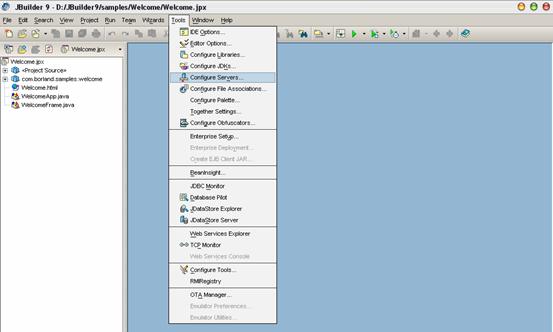

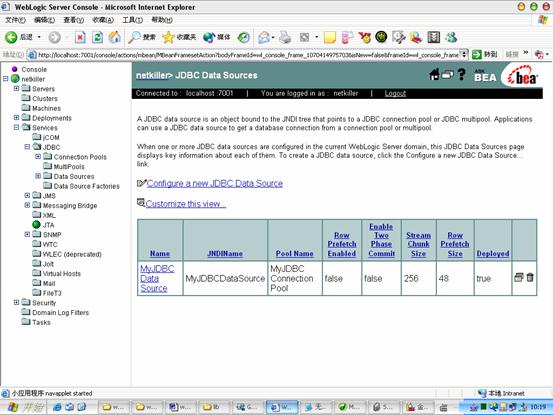

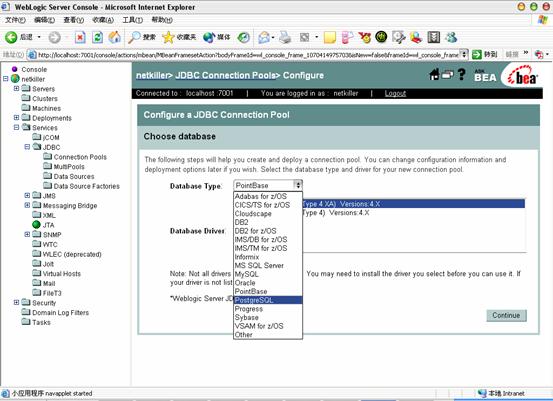

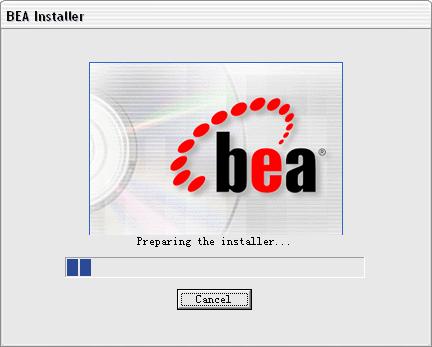

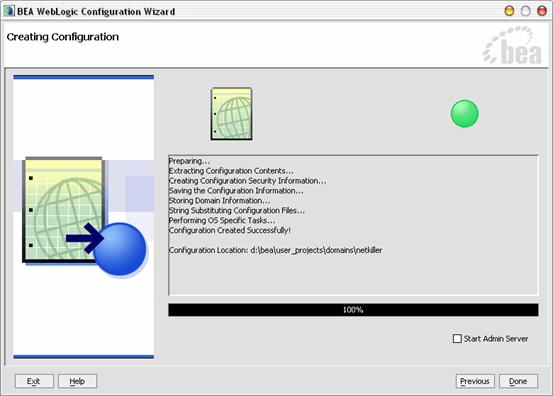

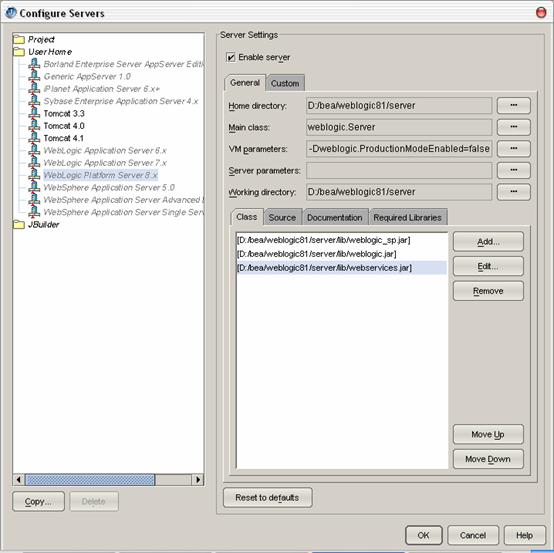

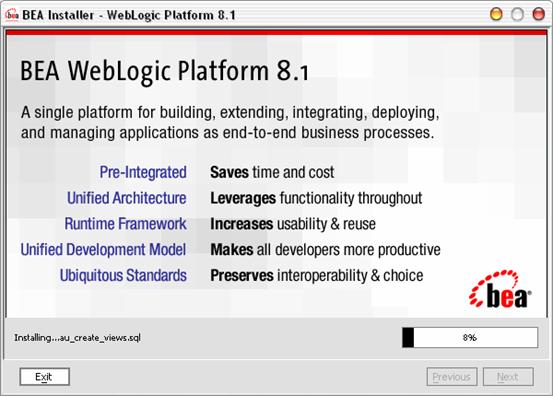

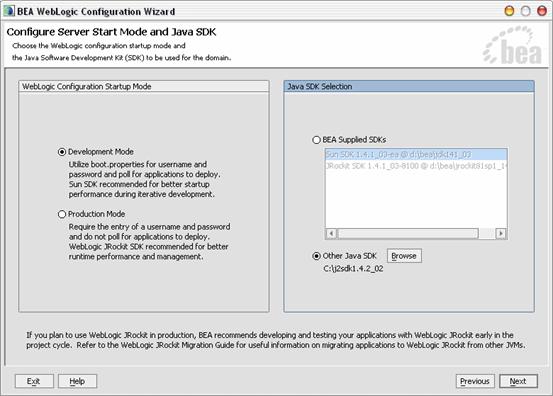

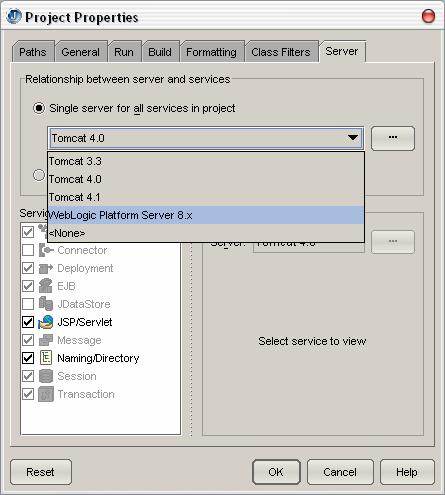

15.4 JBuilder
+ Weblogic + PostgreSQL开发环境
16.5 PostgreSQL
RPM 包安装后，为何没有5432端口
16.6 PostgreSQL
7.4.2 rhel3(高级服务器版,俗称AS3)
16.9 OpenLDAP-PostgreSQL
HOWTO
第一章 PostgreSQL
PostgreSQL Wins
Linux Journal Editors Choice Award
Posted on
Posted by press at postgresql.org
PostgreSQL has won the 2004 Linux Journal Editors' Choice Award for the best
DBMS!
Linux Journal's Editors' Choice Awards are well-known as the premiere forum
recognizing outstanding product developments and achievements in the Linux market,
and winners of the sixth annual awards are featured in the August 2004 issue of
Linux Journal.
Check out the full article.
1 简介
我接触PostgreSQL是2000年，但项目中使用PostgreSQL是2003年，2000当时应该是5.x，6.x版本我并没有深入地研究这个数据库，还是主要使用MS Sql Server 7/2000 、Oracle 8。
因为很多企业难以支付MS Sql Server 7/2000 、Oracle 8这笔费用，所以Free Database是最佳选择。但大多免费的数据库，功能有限、性能也差，跟本不能满足我们的需求。
1.4 关于性能
有一段时间里我们使用MySQL，实在不好用，功能太少，它只实现了SQL92 中不到30%的功能。除了select、insert、update、delete还有什么功能？一味强调速度快，真的是这样吗？MySQL数据量增加很大时，速度下划很快。
几万条记录时速度最快，几十万记录时速度不同了，几百万时就开始慢了。PostgreSQL 随着数据量增大时，速度变化差距不象MySQL那么大。
有些朋友在网上说（触发器、游标、外键、视图）影响性能。这里要说明一下如果适当的使用视图、子查询、触发器、游标……会让你开发更轻松。
注：关于游标，很多SQL书中这样写“游标就是指向一行的指针”在PostgreSQL有些不同，它是返回一个结果集，对结果集next 操作返回一行。
Phpbuilder上有一篇文章是写PostgreSQL 与 MySQL 大家可以去看看。
1.5 为什么说postgresql是最先进的开源数据库？
1.
技术领先：
很多新技术都是它提出的
如：pl过程语言．在其它数据系统中都有自己的专用PL语言。而PostgreSQL中支持很多种PL语言（pl/tcl,pl/python,pl/perl,pl/php,pl/shell/pl/pgsql,pl/java.......）
还有面象对象(ORDBMS)他实现的也很早．
他的数据类型支持很全．如几何型,数组．．．在其它RDBMS中是没有的．
总是有新的技术、思想加入其中
2. 在开源ORDBMS中PostgreSQL功能最强．也最完善
1.6 PostgreSQL对SQL99的支持
|
SQL-3/SQL99 |
√ |
|
PRIMARY KEY主键 |
√ |
|
FOREIGN KEY外键 |
√ |
|
Schema 模式 |
√ |
|
TOAST大对象 |
√ |
|
View视图 |
√ |
|
正则表达式 |
√ |
|
subquery子查询 |
√ |
|
TRIGGER触发器 |
√ |
|
RULE规则 |
√ |
|
FUNCTION过程/函数 |
√ |
|
CURSOR游标 |
√ |
|
PLSQL 过程语言 |
√（PL/pgSQL,PL/Tcl,PL/Perl,PL/Python,plPHP等等） |
|
OLTP表的锁定、事务隔离 |
√ |
|
权限 |
√（用户、组） |
|
Object对象支持 |
√（ORDBMS） |
|
|
√ |
其它：
|
连接 |
进程方式 |
|
SSL |
√ |
|
群集（HA，数据同步复制。。。） |
√ |
|
ODBC |
√ |
|
JDBC |
√ |
|
裸设备 |
目前不支持 |
|
下面是一些限制： 一行，一个表，一个库的最大尺寸是多少？ |
|
|
一个数据库最大尺寸？ |
无限制（存在 32TB 的数据库） |
|
一个表的最大尺寸？ |
32TB |
|
一行的最大尺寸？ |
1.6TB |
|
一个字段的最大尺寸? |
1GB |
|
一个表里最大行数？ |
无限制 |
|
一个表里最大列数？ |
跟列类型有关,250-1600 |
|
一个表里的最大索引数量？ |
无限制 |
当然，实际上没有真正的无限制，还是要受可用磁盘空间、可用内存/交换区的制约。表的最大尺寸 32 TB 不需要操作系统对大文件的支持。大表用多个 1 GB 的文件存储，因此文件系统尺寸的限制是不重要的。如果缺省的块大小增长到 32K ，最大的表尺寸和最大列数可以增加。
这里引用http://www.pgsqldb.org/postgres-faq.html4.5详细请登录网站查看。
2 PostgreSQL 数据库
2.1 PostgreSQL分区
PostgreSQL 最好自己单独一个分区，如果你有两块硬盘建议你给它单独一块硬盘。
|
[chen@linux chen]$ df Filesystem 1K-blocks Used Available Use% Mounted on /dev/sda9 1004024 99892 853128 11% / /dev/sda1 101089 9498 86372 10% /boot /dev/sda2 120952116 7648124 107159936 7% /home none 515400 0 515400 0% /dev/shm /dev/sda10 2522048 33260 2360672 2% /tmp /dev/sda7 5036284 2238244 2542208 47% /usr /dev/sda6 5036284 1919140 2861312 41% /var /dev/sda5 40313964 99444 38166636 1% /var/lib/pgsql /dev/sda3 60476068 212532 57191508 1% /cvsroot [chen@linux chen]$ [chen@linux chen]$ df -m Filesystem
/dev/sda9 980 98 833 11% / /dev/sda1 99 10 84 10% /boot /dev/sda2 118117 7469 104648 7% /home none 503 0 503 0% /dev/shm /dev/sda10 2463 33 2305 2% /tmp /dev/sda7 4918 2186 2482 47% /usr /dev/sda6 4918 1875 2794 41% /var /dev/sda5 39369 98 37272 1% /var/lib/pgsql /dev/sda3 59059 208 55851 1% /cvsroot [chen@linux chen]$ |
2.2 RPM包安装
|
[root@linux software]# ls -1 postgresql- postgresql-contrib- postgresql-debuginfo- postgresql-devel- postgresql-docs- postgresql-jdbc- postgresql-libs- postgresql-pl- postgresql-python- postgresql-server- postgresql-tcl- postgresql-test- [root@linux software]# rpm -Uvh --nodeps `ls -1` Preparing... ########################################### [100%] 1:postgresql-test ########################################### [ 8%] 2:postgresql
########################################### [ 17%]
3:postgresql-contrib
########################################### [ 25%]
4:postgresql-debuginfo
########################################### [ 33%]
5:postgresql-devel
########################################### [ 42%]
6:postgresql-docs
########################################### [ 50%]
7:postgresql-jdbc
########################################### [ 58%]
8:postgresql-libs
########################################### [ 67%]
9:postgresql-pl
########################################### [ 75%]
10:postgresql-python
########################################### [ 83%]
11:postgresql-server
########################################### [ 92%]
12:postgresql-tcl
########################################### [100%] [root@linux software]# rpm -qa|grep postgre postgresql-devel- postgresql- postgresql-python- postgresql-contrib- postgresql-jdbc- postgresql-server- postgresql-debuginfo- postgresql-libs- postgresql-tcl- postgresql-test- postgresql-pl- postgresql-docs- [root@linux software]# [root@linux software]# service postgresql start Starting postgresql service: [ OK ] [root@linux software]# su postgres bash-2.05b$ createdb CREATE DATABASE bash-2.05b$ psql Welcome
to psql Type: \copyright for distribution terms \h for help with SQL commands \? for help on internal slash commands \g or terminate with semicolon to execute query \q to quit postgres=# \q bash-2.05b$ bash-2.05b$ vi /var/lib/pgsql/data/postgresql.conf #======================================================================== # # Connection Parameters # #tcpip_socket = false tcpip_socket = true #ssl = false #max_connections = 32 max_connections = 128 #superuser_reserved_connections = 2 #port = 5432 #hostname_lookup = false #show_source_port = false #unix_socket_directory = '' #unix_socket_group = '' #unix_socket_permissions = 0777 # octal #virtual_host = '' #krb_server_keyfile = '' # # Shared Memory Size # #shared_buffers = 64 # min max_connections*2 or 16, 8KB each shared_buffers = 256 # min max_connections*2 or 16, 8KB each #max_fsm_relations = 1000 # min 10, fsm is free space map, ~40 bytes #max_fsm_pages = 10000 # min 1000, fsm is free space map, ~6 bytes #max_locks_per_transaction = 64 # min 10 #wal_buffers = 8 # min 4, typically 8KB each bash-2.05b$ vi /var/lib/pgsql/data/pg_hba.conf host all all 127.0.0.1 255.255.255.255 md5 bash-2.05b$ psql Welcome
to psql Type: \copyright for distribution terms \h for help with SQL commands \? for help on internal slash commands \g or terminate with semicolon to execute query \q to quit postgres=# CREATE USER netkiller WITH PASSWORD 'chen'; CREATE USER postgres=# CREATE DATABASE netkiller WITH OWNER = netkiller TEMPLATE = template0 ENCODING = 'UNICODE'; CREATE DATABASE postgres=# \du List of database users User name | User ID | Attributes -----------+---------+---------------------------- netkiller | 100 | postgres | 1 | superuser, create database (2 rows) postgres=# \l List of databases Name | Owner | Encoding -----------+-----------+----------- netkiller | netkiller | UNICODE postgres | postgres | SQL_ASCII template0 | postgres | SQL_ASCII template1 | postgres | SQL_ASCII (4 rows) postgres=# \q bash-2.05b$ bash-2.05b$ createlang plpgsql netkiller bash-2.05b$ bash-2.05b$ exit exit [root@linux software]# service postgresql restart [ OK ] Starting postgresql service: [ OK ] [root@linux software]# [root@linux software]# psql -h127.0.0.1 -Unetkiller netkiller Password: Welcome
to psql Type: \copyright for distribution terms \h for help with SQL commands \? for help on internal slash commands \g or terminate with semicolon to execute query \q to quit netkiller=> |
注意：
1.
程序安装我使用了一个小技巧。（我懒哈哈）rpm -Uvh --nodeps `ls -1`
安装一定要加—nodeps，ls -1 这里是减号，阿拉伯数字1，不是英文字母“l” (L)
2. postgres只能用于UNIX Domain Socket方式登陆(/tmp/.s.PGSQL.5432)，不能在TCP/IP Socket模式下登陆。
|
[root@linux software]# ls -la /tmp total 68 drwxrwxrwt 11 root root 4096 Nov 11 16:29 . drwxr-xr-x 22 root root 4096 Nov 5 14:49 .. srwx------ 1 root nobody 0 Nov 5 11:34 .fam_socket drwxrwxrwt 2 xfs xfs
4096 Nov 5 14:49
.font-unix drwx------ 2 root root 4096 Nov 5 19:06 .gconfd srw-rw-rw- 1 root root 0 Nov 5 14:49 .gdm_socket drwxrwxrwx 2 bin bin 4096 Nov 5 14:49 .iroha_unix drwx------ 2 root root 4096 Nov 5 19:14 kde-root drwx------ 2 root root 16384 Nov 5 18:46 lost+found drwxr-xr-x 2 root root 4096 Nov 5 18:55 .mozilla drwx------ 2 root root 4096 Nov 5 11:38 orbit-root drwxr-xr-x 2 root root 4096 Nov 5 19:14 .qt -rw------- 1 root root 1024 Nov 5 18:52 .rnd srwxrwxrwx 1 postgres postgres 0 Nov 11 16:29 .s.PGSQL.5432 -rw------- 1 postgres postgres 26 Nov 11 16:29 .s.PGSQL.5432.lock -r--r--r-- 1 root root 11 Nov 5 14:49 .X0-lock drwxrwxrwt 2 root root 4096 Nov 5 14:49 .X11-unix [root@linux software]# file /tmp/.s.PGSQL.5432 /tmp/.s.PGSQL.5432: socket |
使用file命令可以查看文件类型，所以/tmp/.s.PGSQL.5432显示类型为/tmp/.s.PGSQL.5432: socket
[root@linux software]# psql -h127.0.0.1 –Upostgres db会提示
Password:
psql: FATAL: Password authentication failed for user "postgres"
|
[root@linux software]# psql -h127.0.0.1 -Upostgres netkiller Password: Password: Password: Password: Password: Password: Password: psql: FATAL: Password authentication failed for user "postgres" |
解决方法是创建一个用户。
3.
登陆提示
[root@linux software]# psql -h127.0.0.1 -Unetkiller netkiller
psql: FATAL: No pg_hba.conf entry for host 127.0.0.1, user netkiller, database netkiller
编辑/var/lib/pgsql/data/pg_hba.conf文件加入
host all all 127.0.0.1 255.255.255.255 md5
2.3 APT 安装
Apt 是Debian Linux安装风格
去下而网站可以找到APT软件包
输入：apt 搜索即可
http://www.rpmfind.net/linux/rpm2html/search.php?query=apt
|
[root@linux root]# cd /usr/local/src/ [root@linux src]# wget ftp://194.199.20.114/linux/freshrpms/redhat/9/apt/apt-0.5.5cnc6-fr1.i386.rpm [root@linux
src]# rpm -ivh apt- warning:
apt- Preparing... ########################################### [100%] 1:apt ########################################### [100%] [root@linux src]# apt-get update Get:1 http://ayo.freshrpms.net redhat/9/i386 release [1171B] Fetched 1171B in 6s (170B/s) Get:1 http://ayo.freshrpms.net redhat/9/i386/os pkglist [1357kB] Get:2 http://ayo.freshrpms.net redhat/9/i386/os release [140B] Get:3 http://ayo.freshrpms.net redhat/9/i386/updates pkglist [487kB] Get:4 http://ayo.freshrpms.net redhat/9/i386/updates release [153B] Get:5 http://ayo.freshrpms.net redhat/9/i386/freshrpms pkglist [151kB] Get:6 http://ayo.freshrpms.net redhat/9/i386/freshrpms release [157B] Fetched
1995kB in Reading Package Lists... Done Building Dependency Tree... Done [root@linux src]# [root@linux src]# apt-get check Reading Package Lists... Done Building Dependency Tree... Done You might want to run `apt-get -f install' to correct these. The following packages have unmet dependencies: postgresql-python: Depends: mx but it is not installed E: Unmet dependencies. Try using -f. [root@linux src]# [root@linux src]# apt-get -f install Reading Package Lists... Done Building Dependency Tree... Done Correcting dependencies... Done The following extra packages will be installed: mx The following NEW packages will be installed: mx 0 packages upgraded, 1 newly installed, 0 removed and 146 not upgraded. Need to get 609kB of archives. After unpacking 2266kB of additional disk space will be used. Do you want to continue? [Y/n] Get:1
http://ayo.freshrpms.net redhat/9/i386/os mx Fetched
609kB in Executing RPM (-Uvh)... Preparing... ########################################### [100%] 1:mx ########################################### [100%] [root@linux src]# [root@linux src]# apt-get install postgresql-server |
如果是Debian Linux 系统直接
|
[root@linux src]# apt-get install postgresql-server |
2.4 PostgreSQL 8.0 beta for windows版本安装
PostgreSQL 8.0 beta版windows版本安装包下载地址：
http://laser.dyndns.zhengmai.net.cn/download/postgresql-8.0-beta1.msi
下载后双击postgresql开始安装，只下一步，下一步，即可。
配置D:\PostgreSQL\8.0-beta1\data\pg_hba.conf 文件，建议使用UltraEdit工具。
|
host all all 192.168.0.1 255.255.255.255 md5 |
注：我的环境是Windows XP SP2
启动PostgreSQL 8.0服务器:
Ø 开始à所有程序àPostgreSQL 8.0-beta1à Start service
停止PostgreSQL 8.0服务器:
Ø 开始à所有程序àPostgreSQL 8.0-beta1à Stop service
进入psql控制台:
Ø 开始à所有程序àPostgreSQL 8.0-beta1à psql to template1

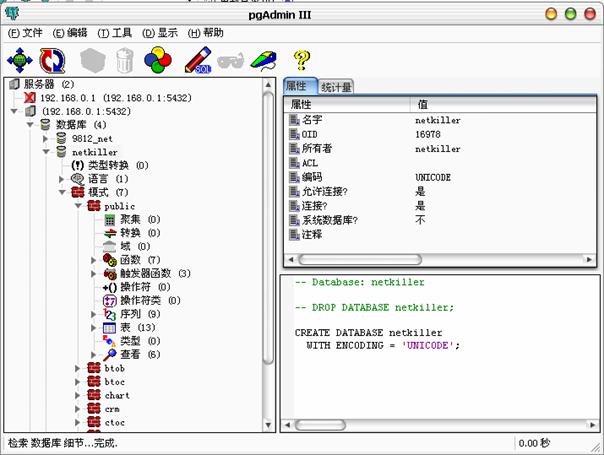

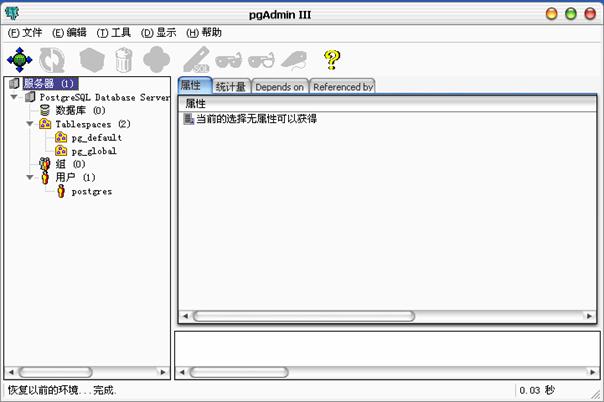

2.4.1 运行pgAdmin III
Ø 开始à所有程序àPostgreSQL 8.0-beta1àpgAdmin III
pgAdmin III的一般操作顺序是：
1. 新建一个用户（用于tcp/ip socket的PostgreSQL帐号，而非系统用户postgres是一个系统帐号，不能用于tcp/ip连接，它是用来管理数据的用户）
2. 新建一个表空间，用于存放数据
3. 新建一个数据库实例
4. 新建一个PL过程语言（一般是pl/pgsql）
5. 新建一个模式(Schema)
6. 创建表，视图，触发器等等

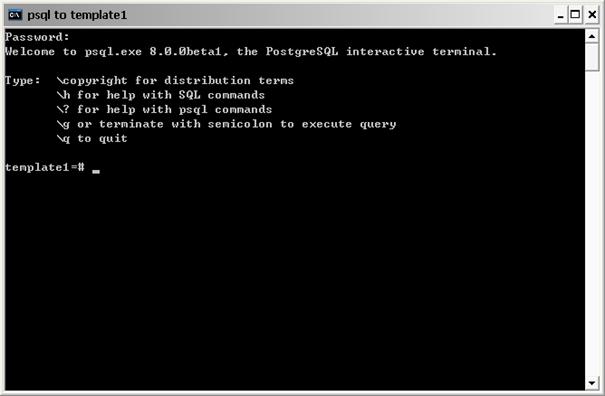

2.4.2 psql控制台：
网上有很多朋友问我，PostgreSQL 8.0的psql在那，他默认打开template1数据库，如何打开其它数据等等问题。
步骤，开始à所有程序àPostgreSQL 8.0-beta1à psql to template1进入PostgreSQL 8.0 psql控制台，输入postgres用户的密码登录。
使用“\l”列出数据
使用“\c”连接到其它数据库。
\c 数据库
数据库所有者，接提示输入密码即可。
|
Password: Welcome
to psql.exe Type: \copyright for distribution terms \h for help with SQL commands \? for help with psql commands \g or terminate with semicolon to execute query \q to quit template1=# \l List of databases Name | Owner | Encoding -----------+----------+---------- netkiller | chen | UNICODE template0 | postgres | UNICODE template1 | postgres | UNICODE (3 rows) template1=# \c netkiller chen Password: You are now connected to database "netkiller" as user "chen". netkiller=# |

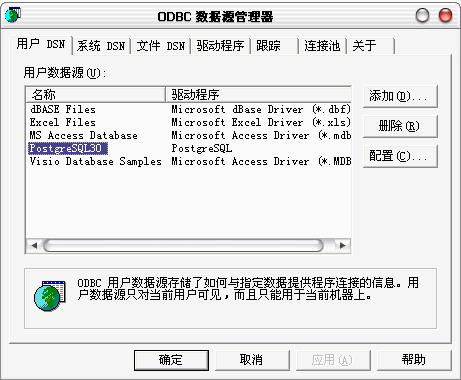

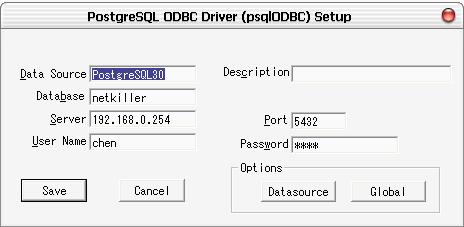

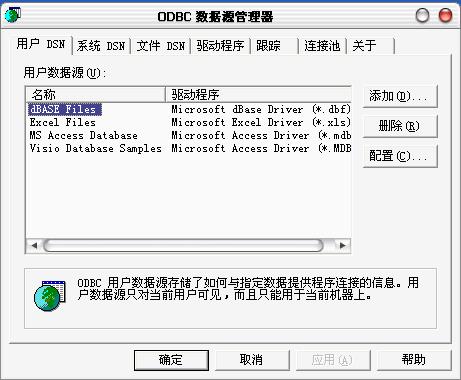

2.4.3 ODBC
1. 开始à控制面板à管理工具à数据源 (ODBC)
2. 单击“添加”按钮

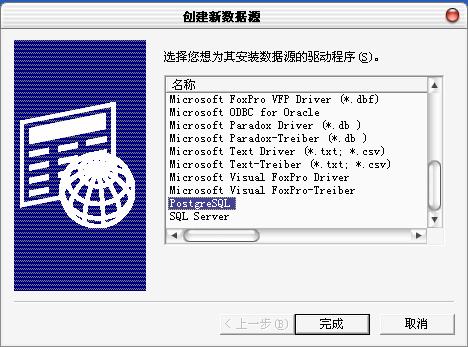

3. 列表中选择PostgreSQLà单击“完成”按钮
4. 单击Save保存
5. 单击“确定”按钮
2.4.4 从Unix/Linux 登录到Windows
|
[root@linux root]# psql -h 192.168.0.254 -U chen netkiller Password: Welcome
to psql Type: \copyright for distribution terms \h for help with SQL commands \? for help on internal slash commands \g or terminate with semicolon to execute query \q to quit netkiller=# |
2.4.5 从Windows 登录到 Unix/Linux
|
D:\PostgreSQL\8.0-beta1\bin>psql.exe -h 192.168.0.1 -U netkiller netkiller Password: Welcome
to psql.exe Type: \copyright for distribution terms \h for help with SQL commands \? for help with psql commands \g or terminate with semicolon to execute query \q to quit netkiller=> |
2.5 数据库备份方案
2.5.1 备份数据库脚本
脚本功能是，首先备份数据库、然后打包、压缩为tar.gz、最后上传到指定位置并删除临时文件。
|
[root@linux root]# cat backup.sh #!/bin/bash FTPHOST=ftp.9812.net USER=netkiller PASSWD=xxx echo "Starting Backup PostgreSQL ... " #big5 gb2312 gb18030 … export PGCLIENTENCODING=gb18030 su - postgres -c pg_dumpall > pgsql-backup.`date +%Y-%m-%d.%H:%M:%S`.dmp tar zcvf pgsql-backup.`date +%Y-%m-%d`.tar.gz *.dmp echo "Upload File ..." ftp -n ${FTPHOST} <<! user ${USER} ${PASSWD} binary prompt mkdir backup cd backup mput *.tar.gz close bye ! echo "Remove temp file ..." rm -rf pgsql-backup.*.dmp rm -rf pgsql-backup.????-??-??.tar.gz [root@linux root]# |
如果您没有一台专用于备份数据的机器（有静态IP的机器）。上面的备份脚本可更改为：
|
[root@linux root]# cat backup.sh #!/bin/bash echo "Starting Backup PostgreSQL ... " su - postgres -c pg_dumpall > pgsql-backup.`date +%Y-%m-%d.%H:%M:%S`.dmp tar zcvf pgsql-backup.`date +%Y-%m-%d`.tar.gz *.dmp echo "Remove temp file ..." rm -rf pgsql-backup.*.dmp [root@linux root]# |
2.5.2 下载备份脚本
|
[root@linux root]# cat getbackup.sh #!/bin/bash FTPHOST=ftp.9812.net USER=netkiller PASSWD=xxx wget ftp://${USER}:${PASSWD}@${FTPHOST}/backup/* ftp -n ${FTPHOST} <<! user ${USER} ${PASSWD} binary prompt cd backup mdelete * close bye ! [root@linux root]# |
2.5.3 保证备份数据的安全-PGP/GPG加密
数据库中的内容有些是不能提供给用户的，如其它用户的资料，密码。在数据库中的数据，你可以通过权限来限制用户操作。将数据库备份（导出）到本地SQL文本文件中(xxxx.sql包括DDL，DML) ，一但备份落入他手，后果不可设想，他很容易得用你的数据，因为你备份的数据是文本文件，没有任何加密措施。
这里介绍GnuPG 以下简称GPG，GPG与PGP兼容。由于PGP使用了许多专利算法，属于美国加密出口限制之列。而GnuPG是GPL软件。
GPG使用非对称加密算法，安全程度很高。所谓非对称加密算法，就是每一个用户都拥有一对密钥：公钥和私钥。其中，私钥由用户保存，公钥提供给internet上的用户。
设：
陈景峰的帐号：chen
小明的帐号：ming
以下为chen 帐号的操作：
1. 查看当前文件夹
|
[chen@linux chen]$ ls -la total 56 drwx------ 4 chen chen 4096 Dec 12 20:38 . drwxr-xr-x 7 root root 4096 Nov 12 11:47 .. -rw------- 1 chen chen 4953 Dec 10 14:05 .bash_history -rw-r--r-- 1 chen chen 24 Feb 11 2003 .bash_logout -rw-r--r-- 1 chen chen 191 Feb 11 2003 .bash_profile -rw-r--r-- 1 chen chen 124 Feb 11 2003 .bashrc -rw-r--r-- 1 chen chen 5531 Feb 4 2003 .canna -rw-r--r-- 1 chen chen 847 Feb 20 2003 .emacs -rw-r--r-- 1 chen chen 120 Feb 27 2003 .gtkrc drwxr-xr-x 3 chen chen 4096 Aug 12 2002 .kde -rw------- 1 chen chen 594 Dec 10 09:38 .viminfo drwxr-xr-x 2 chen chen 4096 Nov 5 19:16 .xemacs [chen@linux chen]$ |
2. 生成密钥（公钥、私钥）
使用GPG之前必须生成密钥（公钥、私钥）操作步骤。
# gpg --gen-key
|
[chen@linux chen]$ gpg --gen-key gpg
(GnuPG) This program comes with ABSOLUTELY NO WARRANTY. This is free software, and you are welcome to redistribute it under certain conditions. See the file COPYING for details. gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information gpg: /home/chen/.gnupg: directory created gpg: new configuration file `/home/chen/.gnupg/gpg.conf' created gpg: keyblock resource `/home/chen/.gnupg/secring.gpg': file open error gpg: keyring `/home/chen/.gnupg/pubring.gpg' created Please select what kind of key you want: (1) DSA and ElGamal (default) (2) DSA (sign only) (5) RSA (sign only) Your selection? 回车 DSA keypair will have 1024 bits. About to generate a new ELG-E keypair. minimum keysize is 768 bits default keysize is 1024 bits highest suggested keysize is 2048 bits What keysize do you want? (1024) 回车 Requested keysize is 1024 bits Please specify how long the key should be valid. 0 = key does not expire <n> = key expires in n days <n>w = key expires in n weeks <n>m = key expires in n months <n>y = key expires in n years Key is valid for? (0) 回车 Key does not expire at all Is this correct (y/n)? y You need a User-ID to identify your key; the software constructs the user id from Real Name, Comment and Email Address in this form: "Heinrich Heine (Der Dichter) <heinrichh@duesseldorf.de>" Real name: netkiller Email address: openunix@163.com Comment: 陈景峰的密钥 （注：输入中文终端要支持UTF-8） You are using the `utf-8' character set. You selected this USER-ID: "netkiller (陈景峰的密钥) <openunix@163.com>" Change (N)ame, (C)omment, (E)mail or (O)kay/(Q)uit?o Enter passphrase:输入密钥口令 Repeat passphrase:输入密钥口令 You need a Passphrase to protect your secret key. We need to generate a lot of random bytes. It is a good idea to perform some other action (type on the keyboard, move the mouse, utilize the disks) during the prime generation; this gives the random number generator a better chance to gain enough entropy. +++++++++++++++.+++++++++++++++.+++++++++++++++.+++++++++++++++.+++++++++++++++.++++++++++++++++++++++++++++++++++++++++.++++++++++++++++++++.....>+++++..................+++++ Not enough random bytes available. Please do some other work to give the OS a chance to collect more entropy! (Need 290 more bytes) We need to generate a lot of random bytes. It is a good idea to perform some other action (type on the keyboard, move the mouse, utilize the disks) during the prime generation; this gives the random number generator a better chance to gain enough entropy. ..+++++.+++++.++++++++++.+++++++++++++++.+++++++++++++++++++++++++..+++++++++++++++.++++++++++++++++++++.+++++.+++++++++++++++.+++++...++++++++++>+++++............................................................>+++++.............>.+++++.....<+++++............+++++^^^ gpg: /home/chen/.gnupg/trustdb.gpg: trustdb created public and secret key created and signed. key marked as ultimately trusted. pub 1024D/B Key fingerprint =
0058 5847 7598 sub [chen@linux chen]$ |
3. 查看生成密钥
|
[chen@linux chen]$ ls -la total 52 drwx------ 5 chen chen 4096 Dec 12 20:47 . drwxr-xr-x 7 root root 4096 Dec 12 20:44 .. -rw-r--r-- 1 chen chen 24 Dec 12 20:44 .bash_logout -rw-r--r-- 1 chen chen 191 Dec 12 20:44 .bash_profile -rw-r--r-- 1 chen chen 124 Dec 12 20:44 .bashrc -rw-r--r-- 1 chen chen 5531 Dec 12 20:44 .canna -rw-r--r-- 1 chen chen 847 Dec 12 20:44 .emacs drwx------ 2 chen chen 4096 Dec 12 20:52 .gnupg -rw-r--r-- 1 chen chen 120 Dec 12 20:44 .gtkrc drwxr-xr-x 3 chen chen 4096 Dec 12 20:44 .kde -rw------- 1 chen chen 61 Dec 12 20:45 .Xauthority drwxr-xr-x 2 chen chen 4096 Dec 12 20:44 .xemacs [chen@linux chen]$ ls .gnupg/ gpg.conf pubring.gpg pubring.gpg~ random_seed secring.gpg trustdb.gpg |
4. 证书的回收
当您的密钥（gpg --gen-key）生成之后，建议您立即做一个公钥回收证书，如果您忘记了您的私钥口令或者您的私钥丢失或者被盗，您可以发布这个证书来声明以前的公钥不再有效。
gpg --output revoke.asc --gen-revoke netkiller （netkiller 你在生成密钥时输入的Real name:）
gpg --output revoke.asc --gen-revoke openunix@163.com （使用邮件地址也可以）
|
[chen@linux chen]$ gpg --output revoke.asc --gen-revoke netkiller gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information sec 1024D/B Create a revocation certificate for this key? y Please select the reason for the revocation: 0 = No reason specified 1 = Key has been compromised 2 = Key is superseded 3 = Key is no longer used Q = Cancel (Probably you want to select 1 here) Your decision? Enter an optional description; end it with an empty line: > :( cancel > Reason for revocation: Key has been compromised :( cancel Is this okay? Please select the reason for the revocation: 0 = No reason specified 1 = Key has been compromised 2 = Key is superseded 3 = Key is no longer used Q = Cancel (Probably you want to select 1 here) Enter an optional description; end it with an empty line: > :( cancel > Is this okay? y You need a passphrase to unlock the secret key for user: "netkiller (陈景峰的密钥) <openunix@163.com>" 1024-bit
DSA key, ID B ASCII armored output forced. Revocation certificate created. Please move it to a medium which you can hide away; if Mallory gets access to this certificate he can use it to make your key unusable. It is smart to print this certificate and store it away, just in case your media become unreadable. But have some caution: The print system of your machine might store the data and make it available to others! [chen@linux chen]$ ls revoke.asc [chen@linux chen]$ cat revoke.asc -----BEGIN PGP PUBLIC KEY BLOCK----- Version: GnuPG v Comment: A revocation certificate should follow iFIEIBECABIFAj/Zv08LHQI6KCBjYW5jZWwACgkQrAfIc7AIR8X3agCcDBjqRkFx QUzcZ/1Gyf1/jjFis04An2rYQz2XrCode08Y78Fj63RVNKD9 =ovDh -----END PGP PUBLIC KEY BLOCK----- [chen@linux chen]$ |
5. 密钥列表
gpg --list-key
|
[chen@linux chen]$ gpg --list-key gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information /home/chen/.gnupg/pubring.gpg ----------------------------- pub 1024D/B sub [chen@linux chen]$ |
6. 输出公钥
以ASCII字符格式输出公钥：gpg --output netkiller.gpg --armor --export netkiller
以二进制格式输出公钥：gpg --output netkiller.gpg --export netkiller
下面是以ASCII字符格式输出（其实就是做了一下BASE64编码）：
|
[chen@linux chen]$ gpg --output netkiller.gpg --armor --export netkiller gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information [chen@linux chen]$ ls netkiller.gpg revoke.asc [chen@linux chen]$ cat netkiller.gpg -----BEGIN PGP PUBLIC KEY BLOCK----- Version: GnuPG v mQGiBD/ZuhgRBACBRuWYRtJ8+8VmnYUgNy7TS/nVl0sHrsGD2kgIWVUuZYgKSUoM vT4MUHWdd52yesovAV61qsVCfUz+O76ovhQrUzv4jp+bkIOKcc7E07Z2MZmc1BqR +Gavb3gsJM6DmOLcRiU 5WS1CIGnvGDFUiGY6VhdamsD/jdiqSIcwFt2x6VMjzeWkHHM5wNYHuBJnp9DPd rn3uEq+tSex8ZXRyzHGj+N4SKezhEYal1D762kDxjGYltk5Xce5dXQBn9fulEDhD OzOp78GvIvJ/m33D/J6xECbXUz8XsFFhxJ6QnVh/RURY+EvHE1Tmz/fRG69Rc1Uc JBqCA/0faHEkyDv+FWEsmFKjflDNqN5NHtdWzJZQZKD1Vb64oJ5CK6r fVpfk5OVXnfMSpLKc7aGA9X+mUMuNrGRNzzzsmVK6urWQovL/BfeukMgDBZXkLd8 fO7aA53XeBhmVC49atFPH8hsOeMdd0mombrzcvKczjMp0ThP9rQzbmV ICjpmYjmma/ls7DnmoTlr4bpkqUpIDxuZXRraWxsZXJAOTgxMi5uZXQ+iFkEExEC ABkFAj/ZuhgECwcDAgMVAgMDFgIBAh4BAheAAAoJEKwHyHOwCEfFBqMAn0HoK9Xc zvzVkFODVZPWUskzwAhqAJ4rbgYEjSN1/CrdUBzTMtecGu9P+7kBDQQ/2boaEAQA zhoIDY866/GWUUpuarpVKcN1ijn+ 6V4zZwP5PcBScYxQpM MKh+HOanAJ9tWcSy6KW83JKG2NS/0U6OSGGDSoNLElMAAwUD/iGBjPfXD5jsepg+ Z9J1RefM5/R1nnBEeOROnWyaczIU1okswlyluAthi+2+ijpEULaqSQ+ZjtuBjcMp kE5UKKql6yBAk2CqJMVkVLlDbPFqbidkAqGp5riKWKc487jR6iZjIAhHvXL0xPIQ erBmEpi4UT7RlaCAmYwvZ1nxGP3eiEYEGBECAAYFAj/ZuhoACgkQrAfIc7AIR8U0 xACfT5pZ+0YjSp9z0/9jPwDfhw7J1bcAnjqxP+uKfkuDHnXRyYFErTN+7iHE =CII0 -----END PGP PUBLIC KEY BLOCK----- [chen@linux chen]$ |
二进制格式输出：
|
[chen@linux chen]$ gpg --output bin-netkiller.gpg --export netkiller gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information [chen@linux chen]$ ls bin-netkiller.gpg netkiller.gpg revoke.asc [chen@linux chen]$ |
7. 使用file命令识别文件
|
[chen@linux chen]$ ls bin-netkiller.gpg netkiller.gpg revoke.asc [chen@linux chen]$ file bin-netkiller.gpg bin-netkiller.gpg: data [chen@linux chen]$ file netkiller.gpg netkiller.gpg: PGP armored data public key block [chen@linux chen]$ file revoke.asc revoke.asc: PGP armored data public key block [chen@linux chen]$ |

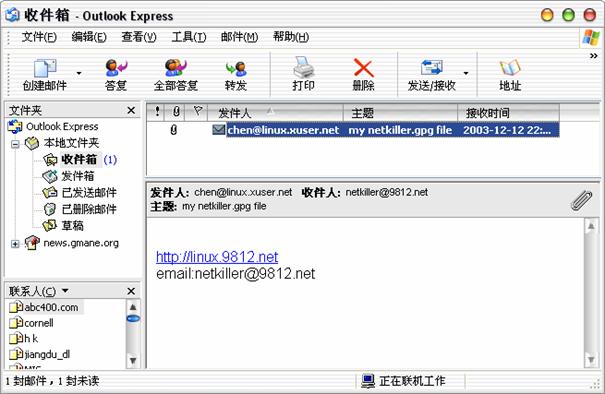

8. 发布公钥
你可以将你的公钥放在主页上下载，也可以mail给别人。
|
[chen@linux chen]$ pine PINE 4.44 MAIN MENU
Folder: INBOX No Messages ? HELP - Get help using Pine C COMPOSE MESSAGE - Compose and send a message I MESSAGE INDEX - View messages in current folder L FOLDER LIST - Select a folder to view A ADDRESS BOOK - Update address book S SETUP - Configure Pine Options Q QUIT - Leave the Pine program Copyright 1989-2002. PINE is a trademark of the [Folder "INBOX" opened with 0 messages] ? Help P PrevCmd R RelNotes O
OTHER CMDS > [ListFldrs] |
|
PINE 4.44 COMPOSE MESSAGE
Folder: INBOX No Messages To : openunix@163.com Cc : Attchmnt: Subject : 这是我的证书 ----- Message Text ----- Attchmnt ^G Get Help ^X Send ^R Rich Hdr ^Y PrvPg/Top ^K Cut Line ^O Postpone ^C Cancel ^D Del Char ^J Attach ^V NxtPg/End ^U UnDel Line^T To Files |
光标至于Attchmnt:上按^J -> 再按 ^T
|
File to attach: ^G Get Help ^T To Files ^C Cancel TAB Complete |
|
PINE 4.44
BROWSER Dir:
/home/chen ..
(parent dir) .gnupg
(dir) .kde
(dir) mail
(dir) .xemacs (dir) .addressbook 0 B .addressbook.lu 2.3 KB .bash_logout 24 B .bash_profile 191 B .bashrc 124 B bin-netkiller.gpg 909 B .canna 5.5 KB .emacs 847 B .gtkrc 120 B netkiller.gpg 1.3 KB .pinerc 14 KB revoke.asc 275 B .Xauthority 61 B [ Searched to end of directory ] ? Get Help E Exit Brwsr - Prev Pg D Delete C Copy S [Select] W Where is Spc Next Pg R Rename A Add |
选择netkiller.gpg 回车
|
Attachment comment: my netkiller.gpg file ^G Get Help ^C Cancel |
输入注释信息
|
PINE 4.44 COMPOSE MESSAGE Folder: INBOX No Messages To : openunix@163.com Cc : Attchmnt: 1. /home/chen/netkiller.gpg (1.3 KB) "my netkiller.gpg file" Subject : my netkiller.gpg file ----- Message Text ----- http://linux.9812.net email:openunix@163.com [File /home/chen/netkiller.gpg attached as type TEXT/PLAIN] ^G Get Help ^X Send ^R Rich Hdr ^Y PrvPg/Top ^K Cut Line ^O Postpone ^C Cancel ^D Del Char ^J Attach ^V NxtPg/End ^U UnDel Line^T To Files |
|
Send message?y ? Help Y [Yes] ^C Cancel N No |
选择y回车
|
PINE 4.44 MAIN MENU
Folder: INBOX No Messages PINE 4.44 COMPOSE MESSAGE Folder: INBOX No Messages To : openunix@163.com Cc : Attchmnt: 1. /home/chen/netkiller.gpg (1.3 KB) "my netkiller.gpg file" Subject : 这是我的证书 ----- Message Text ----- Attchmnt [Sending mail | 0% |] |
发送成功
|
PINE 4.44 MAIN MENU Folder: INBOX No Messages ? HELP - Get help using Pine C COMPOSE MESSAGE - Compose and send a message I MESSAGE INDEX - View messages in current folder L FOLDER LIST - Select a folder to view A ADDRESS BOOK - Update address book S SETUP - Configure Pine Options Q QUIT - Leave the Pine program Copyright 1989-2002. PINE is a trademark of the [Message sent and copied to "sent-mail".] ? Help P PrevCmd R RelNotes O
OTHER CMDS > [ListFldrs] |
9. 将公钥给其它用户
|
[chen@linux chen]$ cp netkiller.gpg /tmp |
以下是ming帐号的操作：
10. 获得公钥
|
[ming@linux ming]$ cp /tmp/netkiller.gpg . [ming@linux ming]$ ls netkiller.gpg [ming@linux ming]$ |
11. 导入公钥
|
[ming@linux ming]$ gpg --import netkiller.gpg gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information gpg: /home/ming/.gnupg: directory created gpg: new configuration file `/home/ming/.gnupg/gpg.conf' created gpg: keyblock resource `/home/ming/.gnupg/secring.gpg': file open error gpg: keyring `/home/ming/.gnupg/pubring.gpg' created gpg: /home/ming/.gnupg/trustdb.gpg: trustdb created gpg:
key B gpg: Total number processed: 1 gpg: imported: 1 [ming@linux ming]$ gpg --list-key gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information /home/ming/.gnupg/pubring.gpg ----------------------------- pub 1024D/B sub [ming@linux ming]$ |
12. 确认密钥
导入密钥以后，使用数字签名来验证此证书是否合法。
|
[ming@linux ming]$ gpg --fingerprint netkiller gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information pub 1024D/B Key fingerprint =
0058 5847 7598 sub [ming@linux ming]$ |
13. 密钥签名
导入密钥之后，可以使用(gpg -—sign-key netkiller) 进行签名，签名的主要目的是证明您完全信任这个证书的合法性。
|
[ming@linux ming]$ gpg --gen-key gpg
(GnuPG) This program comes with ABSOLUTELY NO WARRANTY. This is free software, and you are welcome to redistribute it under certain conditions. See the file COPYING for details. gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information Please select what kind of key you want: (1) DSA and ElGamal (default) (2) DSA (sign only) (5) RSA (sign only) Your selection? DSA keypair will have 1024 bits. About to generate a new ELG-E keypair. minimum keysize is 768 bits default keysize is 1024 bits highest suggested keysize is 2048 bits What keysize do you want? (1024) Requested keysize is 1024 bits Please specify how long the key should be valid. 0 = key does not expire <n> = key expires in n days <n>w = key expires in n weeks <n>m = key expires in n months <n>y = key expires in n years Key is valid for? (0) Key does not expire at all Is this correct (y/n)? y You need a User-ID to identify your key; the software constructs the user id from Real Name, Comment and Email Address in this form: "Heinrich Heine (Der Dichter) <heinrichh@duesseldorf.de>" Real name: ming Name must be at least 5 characters long Real name: mings Email address: mings@9812.net Comment: I am ming You selected this USER-ID: "mings (I am ming) <mings@9812.net>" Change (N)ame, (C)omment, (E)mail or (O)kay/(Q)uit? o You need a Passphrase to protect your secret key. Enter passphrase: passphrase not correctly repeated; try again. We need to generate a lot of random bytes. It is a good idea to perform some other action (type on the keyboard, move the mouse, utilize the disks) during the prime generation; this gives the random number generator a better chance to gain enough entropy. +++++++++++++++.++++++++++++++++++++++++++++++.++++++++++....++++++++++.++++++++++++++++++++.+++++++++++++++..+++++++++++++++++++++++++.++++++++++.....>..+++++...........................+++++ We need to generate a lot of random bytes. It is a good idea to perform some other action (type on the keyboard, move the mouse, utilize the disks) during the prime generation; this gives the random number generator a better chance to gain enough entropy. +++++++++++++++++++++++++..++++++++++++++++++++.+++++++++++++++++++++++++++++++++++..+++++++++++++++...+++++++++++++++++++++++++++++++++++>+++++..................+++++^^^^^^^^^^^^^^^ public and secret key created and signed. key marked as ultimately trusted. pub 1024D/3D9CE6DF Key fingerprint = sub [ming@linux ming]$ gpg --sign-key netkiller gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information pub 1024D/B sub (1). netkiller (陈景峰的密钥) <openunix@163.com> pub 1024D/B Primary key fingerprint: 0058 5847 7598
netkiller (陈景峰的密钥) <openunix@163.com> How carefully have you verified the key you are about to sign actually belongs to the person named above? If you don't know what to answer, enter "0". (0) I will not answer. (default) (1) I have not checked at all. (2) I have done casual checking. (3) I have done very careful checking. Your selection? 3 Are you really sure that you want to sign this key with your key: "mings (I am ming) <mings@9812.net>" I have checked this key very carefully. Really sign? y You need a passphrase to unlock the secret key for user: "mings (I am ming) <mings@9812.net>" 1024-bit
DSA key, ID 3D9CE6DF, created Enter passphrase: （注这里输入mings的口令） [ming@linux ming]$ [ming@linux ming]$ gpg --list-key gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information /home/ming/.gnupg/pubring.gpg ----------------------------- pub 1024D/B sub pub 1024D/3D9CE6DF sub [ming@linux ming]$ |
14. 检查签名
|
[chen@linux chen]$ gpg --check-sigs netkiller gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information pub 1024D/B sig!3 B sub sig! B [ming@linux ming]$ gpg --check-sigs netkiller gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information pub 1024D/B sig!3 B sig! sub sig! B [ming@linux ming]$ [chen@linux chen]$ [ming@linux ming]$ gpg --check-sigs netkiller gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information pub 1024D/B sig!3 B sub sig! B [ming@linux ming]$ |
15. 加密和解密
加密：
|
[ming@linux ming]$ pg_dump -Unetkiller -h127.0.0.1 >pgsql-dump.sql Password: [ming@linux ming]$ 加签名： [ming@linux ming]$ gpg -sear netkiller pgsql-dump.sql gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information You need a passphrase to unlock the secret key for user: "mings (I am mings) <mings@9812.net>" 1024-bit
DSA key, ID gpg: checking the trustdb gpg: checking at depth 0 signed=1 ot(-/q/n/m/f/u)=0/0/0/0/0/1 gpg: checking at depth 1 signed=0 ot(-/q/n/m/f/u)=1/0/0/0/0/0 [ming@linux ming]$ |
|
不加签名： [ming@linux ming]$ gpg -ear netkiller pgsql-dump.sql gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information [ming@linux ming]$ ls netkiller.gpg pgsql-dump.sql pgsql-dump.sql.asc [ming@linux ming]$ |
加密完成，将文件pgsql-dump.sql.asc发给chen (邮件，WEB/FTP下载。。。都可以，不用担心被其它人得到对你不利，现在这个文件已经加密了。)
以下为chen帐号解密操作：
|
[chen@linux chen]$ gpg -d pgsql-dump.sql.asc > pgsql-dump.sql gpg: WARNING: using insecure memory! gpg: please see http://www.gnupg.org/faq.html for more information You need a passphrase to unlock the secret key for user: "netkiller (陈景峰的密钥) <openunix@163.com>" 1024-bit
ELG-E key, ID 0B Enter passphrase: gpg:
encrypted with 1024-bit ELG-E key, ID 0B "netkiller (陈景峰的密钥) <openunix@163.com>" [chen@linux chen]$ |
2.6 备份计划
2.6.1 服务器端计划
因为每天凌晨1:00-5:00这段时间访问的人比较少，所以我选择服务器端每天凌晨3：00开始备份，您也可以在其它时间段备份，根据您的需求而定。
|
[root@linux etc]# cat crontab SHELL=/bin/bash PATH=/sbin:/bin:/usr/sbin:/usr/bin MAILTO=root HOME=/ # run-parts 01 * * * * root run-parts /etc/cron.hourly 02 4 * * * root run-parts /etc/cron.daily 22 4 * * 0 root run-parts /etc/cron.weekly 42 4 1 * * root run-parts /etc/cron.monthly 0 3 * * * root /usr/local/backup/backup.sh |
2.6.2 客户端计划
客户端每天零晨4：00点开始下载备份数据。为什么是4：00下载呢？因为服务器备份要一段时间，如果服务器还没有备份完成，这边是不能下载的。所以计划在3:00服务器开始备份，4：00时客户端开始下载已经备份好的数据。
|
[root@linux etc]# cat crontab SHELL=/bin/bash PATH=/sbin:/bin:/usr/sbin:/usr/bin MAILTO=root HOME=/ # run-parts 01 * * * * root run-parts /etc/cron.hourly 02 4 * * * root run-parts /etc/cron.daily 22 4 * * 0 root run-parts /etc/cron.weekly 42 4 1 * * root run-parts /etc/cron.monthly 0 4 * * * root /usr/local/backup/getbackup.sh |
2.7 数据恢复
|
[root@linux root]# su postgres bash-2.05b$ psql member -f pgsql-backup.xxxx-xx-xx.xx:xx:xx.dmp |
2.8 性能提升
2.8.1 共享内存
在 2.2 内核里缺省的共享内存限制（ SHMMAX 和 SHMALL）都是 32 MB，但是你可以在 proc 文件系统里修改这些值（不用重起）． 比如，要允许 128 MB：
方法1：
# echo 134217728 >/proc/sys/kernel/shmall
# echo 134217728 >/proc/sys/kernel/shmmax
|
[root@linux root]# cat /proc/sys/kernel/shmall 2097152 [root@linux root]# cat /proc/sys/kernel/shmmax 33554432 [root@linux root]# echo 134217728 >/proc/sys/kernel/shmall [root@linux root]# echo 134217728 >/proc/sys/kernel/shmmax [root@linux root]# cat /proc/sys/kernel/shmall 134217728 [root@linux root]# cat /proc/sys/kernel/shmmax 134217728 |
你可以把这些命令放到一个引导时运行的脚本中． 如rc.local文件
|
[root@linux root]# cat /etc/rc.d/rc.local #!/bin/sh # # This script will be executed *after* all the other init scripts. # You can put your own initialization stuff in here if you don't # want to do the full Sys V style init stuff. touch /var/lock/subsys/local /usr/local/jakarta-tomcat/bin/startup.sh /usr/local/apache/bin/apachectl start echo 134217728 >/proc/sys/kernel/shmall echo 134217728 >/proc/sys/kernel/shmmax |
方法2，使用 sysctl 命令来控制这些参数．
|
[root@linux root]# sysctl -w kernel.shmall=134217728 kernel.shmall = 134217728 [root@linux root]# sysctl -w kernel.shmmax=134217728 kernel.shmmax = 134217728 [root@linux root]# |
方法3，你可以在一个叫 /etc/sysctl.conf 的文件里面加下面这样的两行：
kernel.shmall = 134217728
kernel.shmmax = 134217728
|
[root@linux root]# cat /etc/sysctl.conf # Kernel sysctl configuration file for Red Hat Linux # # For binary values, 0 is disabled, 1 is enabled. See sysctl(8) and # sysctl.conf(5) for more details. # Controls IP packet forwarding net.ipv4.ip_forward = 0 # Controls source route verification net.ipv4.conf.default.rp_filter = 1 # Controls the System Request debugging functionality of the kernel kernel.sysrq = 0 # Controls whether core dumps will append the PID to the core filename. # Useful for debugging multi-threaded applications. kernel.core_uses_pid = 1 kernel.shmall = 134217728 kernel.shmmax = 134217728 |
通常在引导的时候会处理这个文件，但你也可以稍后明确调用sysctl．
2.8.2 最大连接
跟据你的需要来配置最大连接数，系统默认是32，配置需要修改两处。
max_connections = 100
shared_buffers = 200
shared_buffers = max_connections*2
|
[root@linux data]# cat postgresql.conf # # PostgreSQL configuration file # ----------------------------- # # This file consists of lines of the form: # # name = value # # (The '=' is optional.) White space may be used. Comments are introduced # with '#' anywhere on a line. The complete list of option names and # allowed values can be found in the PostgreSQL documentation. The # commented-out settings shown in this file represent the default values. # # Any option can also be given as a command line switch to the # postmaster, e.g. 'postmaster -c log_connections=on'. Some options # can be changed at run-time with the 'SET' SQL command. # # This file is read on postmaster startup and when the postmaster # receives a SIGHUP. If you edit the file on a running system, you have # to SIGHUP the postmaster for the changes to take effect, or use # "pg_ctl reload". #======================================================================== # # Connection Parameters # #tcpip_socket = false tcpip_socket = true #ssl = false #ssl = true #max_connections = 32 max_connections = 100 #superuser_reserved_connections = 2 #port = 5432 #hostname_lookup = false #show_source_port = false #unix_socket_directory = '' #unix_socket_group = '' #unix_socket_permissions = 0777 # octal #virtual_host = '' #krb_server_keyfile = '' # # Shared Memory Size # #shared_buffers = 64 # min max_connections*2 or 16, 8KB each shared_buffers = 200 # min max_connections*2 or 16, 8KB each #max_fsm_relations = 1000 # min 10, fsm is free space map, ~40 bytes #max_fsm_pages = 10000 # min 1000, fsm is free space map, ~6 bytes #max_locks_per_transaction = 64 # min 10 #wal_buffers = 8 # min 4, typically 8KB each # # Non-shared Memory Sizes # #sort_mem = 1024 # min 64, size in KB #vacuum_mem = 8192 # min 1024, size in KB # # Write-ahead log (WAL) # #checkpoint_segments = 3 # in logfile segments, min 1, 16MB each #checkpoint_timeout = 300 # range 30-3600, in seconds # #commit_delay = 0 # range 0-100000, in microseconds #commit_siblings = 5 # range 1-1000 # #fsync = true #wal_sync_method = fsync # the default varies across platforms: # # fsync, fdatasync, open_sync, or open_datasync #wal_debug = 0 # range 0-16 # # Optimizer Parameters # #enable_seqscan = true #enable_indexscan = true #enable_tidscan = true #enable_sort = true #enable_nestloop = true #enable_mergejoin = true #enable_hashjoin = true #effective_cache_size = 1000 # typically 8KB each #random_page_cost = 4 # units are one sequential page fetch cost #cpu_tuple_cost = 0.01 # (same) #cpu_index_tuple_cost = 0.001 # (same) #cpu_operator_cost = 0.0025 # (same) #default_statistics_target = 10 # range 1-1000 # # GEQO Optimizer Parameters # #geqo = true #geqo_selection_bias = 2.0 # range 1.5-2.0 #geqo_threshold = 11 #geqo_pool_size = 0 # default based on tables in statement, # range 128-1024 #geqo_effort = 1 #geqo_generations = 0 #geqo_random_seed = -1 # auto-compute seed # # Message display # #server_min_messages = notice # Values, in order of decreasing detail: # debug5, debug4, debug3, debug2, debug1, # info, notice, warning, error, log, fatal, # panic #client_min_messages = notice # Values, in order of decreasing detail: # debug5, debug4, debug3, debug2, debug1, # log, info, notice, warning, error #silent_mode = false #log_connections = false #log_pid = false #log_statement = false #log_duration = false #log_timestamp = false #log_min_error_statement = panic # Values in order of increasing severity: # debug5, debug4, debug3, debug2, debug1, # info, notice, warning, error, panic(off) #debug_print_parse = false #debug_print_rewritten = false #debug_print_plan = false #debug_pretty_print = false #explain_pretty_print = true # requires USE_ASSERT_CHECKING #debug_assertions = true # # Syslog # #syslog = 0 # range 0-2 #syslog_facility = 'LOCAL0' #syslog_ident = 'postgres' # # Statistics # #show_parser_stats = false #show_planner_stats = false #show_executor_stats = false #show_statement_stats = false # requires BTREE_BUILD_STATS #show_btree_build_stats = false # # Access statistics collection # #stats_start_collector = true #stats_reset_on_server_start = true #stats_command_string = false #stats_row_level = false #stats_block_level = false # # Lock Tracing # #trace_notify = false # requires LOCK_DEBUG #trace_locks = false #trace_userlocks = false #trace_lwlocks = false #debug_deadlocks = false #trace_lock_oidmin = 16384 #trace_lock_table = 0 # # Misc # #autocommit = true #dynamic_library_path = '$libdir' #search_path = '$user,public' #datestyle = 'iso, us' #timezone = unknown # actually, defaults to TZ environment setting #australian_timezones = false #client_encoding = sql_ascii # actually, defaults to database encoding #authentication_timeout = 60 # 1-600, in seconds #deadlock_timeout = 1000 # in milliseconds #default_transaction_isolation = 'read committed' #max_expr_depth = 10000 # min 10 #max_files_per_process = 1000 # min 25 #password_encryption = true #sql_inheritance = true #transform_null_equals = false #statement_timeout = 0 # 0 is disabled, in milliseconds #db_user_namespace = false # # Locale settings # # (initialized by initdb -- may be changed) LC_MESSAGES = 'en_US.UTF-8' LC_MONETARY = 'en_US.UTF-8' LC_NUMERIC = 'en_US.UTF-8' LC_TIME = 'en_US.UTF-8' |
重新启动数据：
|
[root@linux data]# service postgresql restart [ OK ] Starting postgresql service: [ OK ] |
查看配置是否正确：
|
[root@linux root]# psql -Uchen member Welcome
to psql Type: \copyright for distribution terms \h for help with SQL commands \? for help on internal slash commands \g or terminate with semicolon to execute query \q to quit member=> show max_connections; max_connections ----------------- 100 (1 row) |
2.8.3 vacuumdb
数据库2：00优化、3：00备份、4：00下载备份数据
|
[root@linux etc]# cat crontab SHELL=/bin/bash PATH=/sbin:/bin:/usr/sbin:/usr/bin MAILTO=root HOME=/ # run-parts 01 * * * * root run-parts /etc/cron.hourly 02 4 * * * root run-parts /etc/cron.daily 22 4 * * 0 root run-parts /etc/cron.weekly 42 4 1 * * root run-parts /etc/cron.monthly 0 2 * * * root /usr/local/pgsql/optimize.sh |
数据库vacuumdb优化脚本
|
[root@linux pgsql]# cat optimize.sh #!/bin/bash vacuumdb -hlocalhost -p5432 -Upostgres -a -f -z [root@linux pgsql]# |
2.8.4 数据库操作与性能
1. 分组插入数据
向数据库做大量Insert 操作时（注：非导入，在某些特殊环境中要做大量的插入操作，而 不是导入数据），如你有10000条记录要插入到数据库中，建议你将10000记录分组插入
|
第一组 |
begin; insert into …… insert into …… insert into …… ……. 1000条insert into ……. insert into …… commit; |
|
第二组 |
begin; insert into …… ……. 1000条insert into ……. insert into …… commit; |
|
第十组 |
begin; insert into …… ……. 1000条insert into ……. insert into …… commit; |
2. 通过copy from插入数据
|
pg_copy_from (PHP 4
>= pg_copy_from -- 根据数组将记录插入表中 说明 bool pg_copy_from ( resource connection, string table_name, array rows [, string delimiter [, string null_as]]) pg_copy_from() 将数组 rows 的内容作为记录插入表中。它在内部使用了 COPY FROM SQL 命令来插入记录。如果成功则返回 TRUE，失败则返回 FALSE。
参见 pg_copy_to()。 |
3.
操作之后使用重建索引
vacuumdb -hlocalhost -p5432 -Upostgres -a -f -z
2.8.5 硬件方面
1. 一般服务器
PC服务器有条件建议使用SATA（串行）硬盘。
没有条件可以买时下最快的ATA硬盘（也不是越快越好，还要稳定）
正常情况下几块ATA 66 (5400rpm)硬盘做RAID 0，要比一块ATA100(7200rpm)还要快。
RAID 是解决服务器硬盘瓶颈最佳方案。建议使用RAID０，RAID0速度最快，不安全，但速度诱人，只要做好备份，是没有问题的。
目前ＰＣ上ＡＴＡ只能做ＲＡＩＤ０（条带）和ＲＡＩＤ１（镜像）。ＳＡＴＡ可以做ＲＡＩＤ０，１，５，１０，５０。不过我还没见过ＳＴＡＴ 的ＲＡＩＤ卡，深圳赛格也没得卖。
2. 高档服务器
高档服务器中主流使用ＳＣＳＩ硬盘，公司也出得起￥￥￥买。所以干脆一次就配置５块SＣＳＩ硬盘。４块盘做ＲＡＩＤ５，剩余１块做热交换hotswap。
因为ＳＣＳＩ性能稳定，如果不满足RAID5速度，可以做ＲＡＩＤ０。
附表1
|
RAID级别 |
RAID 0 |
RAID 1 |
RAID 3 |
RAID 5 |
|
名称 |
条带 |
镜像 |
专用校验条带 |
分散校验条带 |
|
允许故障 |
否 |
是 |
是 |
是 |
|
冗余类型 |
无 |
副本 |
校验 |
校验 |
|
热备用操作 |
不可 |
可以 |
可以 |
可以 |
|
硬盘数量 |
一个以上 |
两个 |
三个以上 |
三个以上 |
|
可用容量 |
最大 |
最小 |
中间 |
中间 |
|
减少容量 |
无 |
50% |
一个磁盘 |
一个磁盘 |
|
读性能 |
高（盘的数量决定） |
中间 |
高 |
高 |
|
随机写性能 |
最高 |
中间 |
最低 |
低 |
|
连续写性能 |
最高 |
中间 |
低 |
最低 |
|
典型应用 |
无故障的迅速读写 |
允许故障的小檔、随机数据写入 |
允许故障的大檔、连续数据传输 |
允许故障的小檔、随机数据传输 |
|
可用容量 |
总的磁盘的容量 |
只能用磁盘容量的50% |
（n-1）/n的磁盘容量。其中n为磁盘数 |
（n-1）/n的总磁盘容量。其中n为磁盘数 |
附表2
|
RAID级别 |
RAID 10 |
RAID 30 |
RAID 50 |
|
名称 |
跨越镜像数组 |
跨越专用校验数组 |
跨越分散校验数组 |
|
允许故障 |
是 |
是 |
是 |
|
冗余类型 |
副本 |
校验 |
校验 |
|
热备用操作 |
可以 |
可以 |
可以 |
|
磁盘数量 |
|
|
|
|
跨越2个数组 |
4 |
6,8,10,12,14或16 |
6,8,10,12,14或16 |
|
跨越3个数组 |
6 |
9,12或15 |
9,12或15 |
|
跨越4个数组 |
8 |
12或16 |
12或16 |
|
可用容量 |
最小 |
中间 |
中间 |
|
减少容量 |
50% |
每个数组中一个磁盘 |
每个数组中一个磁盘 |
|
读性能 |
中间 |
高 |
高 |
|
随机写性能 |
中间 |
最低 |
低 |
|
连续写性能 |
中间 |
低 |
最低 |
|
典型应用 |
允许故障高速度小文件、随机数据写入 |
允许故障高速度大文件、连续数据传输 |
允许故障高速度小文件、随机数据传输 |
|
可用容量 |
磁盘容量的50% |
n-2/2的磁盘容量。其中n为磁盘数目 |
n-2/n的磁盘容量。其中n为磁盘数 |
3. 网络，光纤存储我没使用过，这里也不谈了。
2.8.6 磁盘性能
注：hdparm 有些参考只支持ATA硬盘。
|
[root@linux root]# hdparm hdparm - get/set hard disk parameters - version v5.2 Usage:
hdparm [options] [device]
.. Options: -a get/set fs readahead -A set drive read-lookahead flag (0/1) -b get/set bus state (0 == off, 1 == on, 2 == tristate) -B set Advanced Power Management setting (1-255) -c get/set IDE 32-bit IO setting -C check IDE power mode status -d get/set using_dma flag -D enable/disable drive defect-mgmt -E set cd-rom drive speed -f flush buffer cache for device on exit -g display drive geometry -h display terse usage information -i display drive identification -I detailed/current information directly from drive -Istdin similar to -I, but wants /proc/ide/*/hd?/identify as input -k get/set keep_settings_over_reset flag (0/1) -K set drive keep_features_over_reset flag (0/1) -L set drive doorlock (0/1) (removable harddisks only) -M get/set acoustic management (0-254, 128: quiet, 254: fast) (EXPERIMENTAL) -m get/set multiple sector count -n get/set ignore-write-errors flag (0/1) -p set PIO mode on IDE interface chipset (0,1,2,3,4,...) -P set drive prefetch count -q change next setting quietly -Q get/set DMA tagged-queuing depth (if supported) -r get/set readonly flag (DANGEROUS to set) -R register an IDE interface (DANGEROUS) -S set standby (spindown) timeout -t perform device read timings -T perform cache read timings -u get/set unmaskirq flag (0/1) -U un-register an IDE interface
(DANGEROUS) -v defaults; same as -mcudkrag for IDE drives -V display program version and exit immediately -w perform device reset (DANGEROUS) -W set drive write-caching flag (0/1) (DANGEROUS) -x tristate device for hotswap (0/1) (DANGEROUS) -X set IDE xfer mode (DANGEROUS) -y put IDE drive in standby mode -Y put IDE drive to sleep -Z disable Seagate auto-powersaving mode -z re-read partition table |
测试 /dev/hda 这块硬盘的cache与实际效能：
|
[root@linux root]# hdparm -Tt /dev/hda /dev/hda: Timing buffer-cache reads: 128 MB in 0.26 seconds =492.31 MB/sec Timing buffered disk reads: 64 MB in 2.28 seconds = 28.07 MB/sec [root@linux root]# |
关闭 DMA 模式！
|
[root@linux root]# hdparm -d0 /dev/hda /dev/hda: setting using_dma to 0 (off) using_dma = 0 (off) [root@linux root]# |
开启 DMA 模式在 DMA 66 ，并且开启 32 位存取模式
|
[root@linux
root]# hdparm -d1 -c3 -X66 /dev/hda /dev/hda: setting 32-bit IO_support flag to 3 setting using_dma to 1 (on) setting xfermode to 66 (UltraDMA mode2) IO_support = 3 (32-bit w/sync) using_dma = 1 (on) [root@linux
root]# |
因为可能这个程序比较早，没有后续版本，所以他只支持到66。
|
[root@linux root]# hdparm -d1 -c3 -X100 /dev/hda /dev/hda: setting 32-bit IO_support flag to 3 setting using_dma to 1 (on) setting xfermode to 100 (unknown, probably not valid) HDIO_DRIVE_CMD(setxfermode) failed: Input/output error IO_support = 3 (32-bit w/sync) using_dma = 1 (on) [root@linux root]# |
这是我的PC服务器A：
CPU：P4
内存：512MB
硬盘：70GB （ATA133）
|
[root@linux root]# hdparm -d1 -Tt -c3 /dev/hda /dev/hda: setting 32-bit IO_support flag to 3 setting using_dma to 1 (on) IO_support = 3 (32-bit w/sync) using_dma = 1 (on) Timing buffer-cache reads: 128 MB in 0.25 seconds =512.00 MB/sec Timing buffered disk reads: 64 MB in 2.28 seconds = 28.07 MB/sec [root@linux root]# |
这是一台深圳产的宝德PC服务器B：
CPU：P4
内存：1GB
ATA RAID 0 ：
|
[root@linux root]# hdparm -d1 -Tt -c3 /dev/sda /dev/sda: operation not supported on SCSI disks [root@linux root]# [root@linux root]# hdparm -Tt /dev/sda /dev/sda: Timing buffer-cache reads: 128 MB in 0.33 seconds =392.46 MB/sec Timing buffered disk reads: 64 MB in 1.00 seconds = 63.87 MB/sec [root@linux root]# hdparm -Tt /dev/sda /dev/sda: Timing buffer-cache reads: 128 MB in 0.33 seconds =392.46 MB/sec Timing buffered disk reads: 64 MB in 1.02 seconds = 62.77 MB/sec [root@linux root]# |
上面两台PC服务器，A最近配置的，B是半年前配置的，从对比可以看出两块ATA100的RAID0，与单块ATA133。前者慢，但我想如果用4块硬盘做RAID 0 性能一定会超过A
2.9 安全的TCP/IP联接
2.9.1 使用SSL进行安全的TCP/IP联接
1. 设置用户信息：
|
[root@linux8 root]# su - postgres -bash-2.05b$ ls data initdb.i18n -bash-2.05b$ cd data/ -bash-2.05b$ ls base pg_clog pg_ident.conf pg_xlog postmaster.opts global pg_hba.conf PG_VERSION postgresql.conf postmaster.pid -bash-2.05b$ openssl req -new -text -out server.req Using configuration from /usr/share/ssl/openssl.cnf Generating a 1024 bit RSA private key ....++++++ ............................................................++++++ writing new private key to 'privkey.pem' Enter PEM pass phrase: Verifying password - Enter PEM pass phrase: ----- You are about to be asked to enter information that will be incorporated into your certificate request. What you are about to enter is what is called a Distinguished Name or a DN. There are quite a few fields but you can leave some blank For some fields there will be a default value, If you enter '.', the field will be left blank. ----- Country Name (2 letter code) [GB]:CN State
or Province Name (full name) [ Locality
Name (eg, city) [Newbury]:Shen Zhen Organization Name (eg, company) [My Company Ltd]:Open Source Organization Organizational Unit Name (eg, section) []:technical Common Name (eg, your name or your server's hostname) []:www.9812.net Email Address []:openunix@163.com Please enter the following 'extra' attributes to be sent with your certificate request A challenge password []:chen An optional
company name []:netkiller -bash-2.05b$ ls base pg_clog pg_ident.conf pg_xlog postmaster.opts privkey.pem global pg_hba.conf PG_VERSION postgresql.conf postmaster.pid server.req -bash-2.05b$ |
注意上面的server.req文件，我们来看看它的内容：
|
-bash-2.05b$ cat server.req Certificate Request: Data: Version: 0 (0x0) Subject: C=CN, ST=Guang Zhou, L=Shen Zhen, O=Open Source Organization, OU=technical, CN=www.9812.net/Email=openunix@163.com Subject Public Key Info: Public Key Algorithm: rsaEncryption RSA Public Key: (1024 bit) Modulus (1024 bit):
00:a5:30:
0b:de:97:d0:
1b:f4:c7:9d:65:
57:f5:89:91:2e:80:
a3:a3:3d:76:da:89:c0:33:29:c5:a5:8b:
f4:3b:f3:7d:54:d4:65:fa:c8:c0:
03:8e:f0:61:d9:70:cf:fa:dd:e2:04:
Exponent: 65537 (0x10001) Attributes: challengePassword :chen unstructuredName :netkiller Signature Algorithm: md5WithRSAEncryption
09:
f5: 86:74:2e:2b:eb:ec:23:3b:dc:02:25:29:02:74:e7:92:76:ed: 34:e1:63:e9:ef:dc:12:33:31:84:31:ce:b3:d4:f2:49:92:a5:
a5:26:a2:d2:49:c3:7e:69:c7:1b:73:bb:59:8d:
4b:c4:41:02:b1: 85:75 -----BEGIN CERTIFICATE REQUEST----- MIICFzCCAYACAQAwgacxCzAJBgNVBAYTAkNOMRMwEQYDVQQIEwpHdWFuZyBaaG91 MRIwEAYDVQQHEwlTaGVuIFpoZW4xITAfBgNVBAoTGE9wZW4gU291cmNlIE9yZ2Fu aXphdGlvbjESMBAGA1UECxMJdGVjaG5pY2FsMRUwEwYDVQQDEwx3d3cuOTgxMi5u ZXQxITAfBgkqhkiG9w0BCQEWEm5ldGtpbGxlckA5ODEyLm5ldDCBnzANBgkqhkiG 9w0BAQEFAAOBjQAwgYkCgYEApTCa73WfQEDukE 9MedZXpT19d86iWPvrBX9YmRLoBM//GWHkIGAWSfmGkkwX/mDKWuuZxMKdujoz12 2onAMynFpYt64eX0O/N9VNRl+sjAHBEHHCQDjvBh2XDP+t3iBEoxwmMqX0TsSGgw RI0CAwEAAaAvMBMGCSqGSIb3DQEJBzEGEwRjaGVuMBgGCSqGSIb3DQEJAjELEwlu ZXRraWxsZXIwDQYJKoZIhvcNAQEEBQADgYEACUoc cA1fKGOCeTlrpa4Ce4fLhnQuK+vsIzvcAiUpAnTnknbtNOFj6e/cEjMxhDHOs9Ty SZKlLF4KPXP4H5WPcfkt7utKnIwTpSai0knDfmnHG3O7WY2cv92sS8RBArE8psnJ 6wCzdS3iqymzhXU= -----END CERTIFICATE REQUEST----- |
2. 生产秘钥文件：
|
-bash-2.05b$ openssl rsa -in privkey.pem -out server.key read RSA key Enter PEM pass phrase: writing RSA key -bash-2.05b$ ls base pg_clog pg_ident.conf pg_xlog postmaster.opts privkey.pem server.req global pg_hba.conf PG_VERSION postgresql.conf postmaster.pid server.key -bash-2.05b$ |
注意上面的privkey.pem ，server.key文件，我们来看看它们的内容：
|
-bash-2.05b$ cat privkey.pem -----BEGIN RSA PRIVATE KEY----- Proc-Type: 4,ENCRYPTED DEK-Info:
DES-EDE3-CBC,EE59B06E C8RnlMX5tF7CRdx/jxHk/2D4SUu+PVNfphwDbsytmUJIx5qMQAHxCy+NdIDZX AWIwaShdwFOaP6CMwrzBav54DW1/IlbF688X3DA6xUY1+ZvV4RU4t1O6EhEPINth 1KBqgtSw8lnu6HQa6aIFvZ lNxYjNTxSjA9x5IBzyJpaJJk kpLqfzx/wAaJxReB/EP95jLVkEmzyi6rqzsBLLgAl6mxGGN5kT34lfK4v9xuRWRz J2AlBJnloq8NTE48N sFYcrAhBGCK+4OXjn717AYeAYw+/JPrX0ZuDVFogVKNB9x/S15+y8yh2AgIUjpJ/ BOZ3LCxXyFznu4yBvxNoTOJT2xWuAXVk5AI3UftOfBAvRZdayAwh6LdoNG77ead1 hNwIAvS5LUiLG8KeAbQHlJuh51YCpmEBCsTqrZybMNoEAiCg0Gn/5tE5cfVmH3Ei LjhCTtRJ6oGx6dsYaY +z MlxPL1T4P3xEANG7hOlsabBiQ2kyCq1iiJCHBlfXxIm ErS68kMbv+Y5Tr+X3Ml1AMNEEU5YAn/O1wSoL5Cz0nIpKeknKAl/vA== -----END RSA PRIVATE KEY----- -bash-2.05b$ cat server.key -----BEGIN RSA PRIVATE KEY----- MIICXAIBAAKBgQClMJrvdZ9AQO6QTgb39wvel9AaLkjvTHvCzfL0MBv0x51lelPX 13zqJY++sFf1iZEugEz/8ZYeQgYBZJ+YaSTBf+YMpa65nEwp26OjPXbaicAzKcWl i3rh5fQ7831U1GX6yMAcEQccJAOO8GHZcM/63eIESjHCYypfROxIaDBEjQIDAQAB AoGABMbGBByLkUkPXN7UtsDO+A29t7QU SK1EpGqTT2dF5vQTxmCJeNe5d078YIFCbIQckgG2hLSsRyV8QclSguJLC5Tgvzua tTFdVH50UbyAtkifiR3wt5qBuIjtxz/v0ePJ2EdhcdCAqQUCQQDUarpjOof/hTKb wwOyJIVDycQs27dF+LiGD6YxD97WC6iZR5u7YukqzJk+GXi9EbjdQzybkp1oxDuF LQAFXJoDAkEAxxVCo1MgYiKtc2lqSr/q2j1R//sPQq5ajv7pvU1WGhx3xS2iZt /jzNx6ZUG7hxd5gi KAKesYixklPRHEYgRpGvBUhvkjeLt6wAdAM4GhPY1cJgQGTUBIIFD4azoQJAVjap xgrwoi78SFelVTupW9tkUGOL50eUJgrUdEsyd1pOr9AkXUJva9svDj/EesC0OqNi sp9zm8VvGJDdAlGttwJBAMEnnl9ZGglIBRbS7srVLHhXFYs+xkQgTW6bvcQ+aW+G MW/vpVcsFzSuaAtlBVoZ1ltCRGPSbVgQkp14yqGITQg= -----END RSA PRIVATE KEY----- |
上面的privkey.pem ，server.key文件内容一看就知道是BASE64编码的，我对它的内容也很好奇，将它解码看看内容是什么：
|
0?\[1][1]亖?泛u烜@类N鼢 迼?.H风{峦螋0羟漞zS鬃|?従痒鯄?€L駯‑Bd炜i$??ギ箿L)郏?v趬?)钮娲徨?髛T詄? $
|
看来是二制的，哈哈。
3. 产生证书文件：
|
-bash-2.05b$ openssl req -x509 -in server.req -text -key server.key -out server. crt Using configuration from /usr/share/ssl/openssl.cnf -bash-2.05b$ -bash-2.05b$ cat server.crt Certificate: Data: Version: 3 (0x2) Serial Number: 0 (0x0) Signature Algorithm: md5WithRSAEncryption Issuer: C=CN, ST=Guang Zhou, L=Shen Zhen, O=Open Source Organization, OU=technical, CN=www.9812.net/Email=openunix@163.com Validity Not Before: Oct 25 01:13:05 2003 GMT Not After : Nov 24 01:13:05 2003 GMT Subject: C=CN, ST=Guang Zhou, L=Shen Zhen, O=Open Source Organization, OU=technical, CN=www.9812.net/Email=openunix@163.com Subject Public Key Info: Public Key Algorithm: rsaEncryption RSA Public Key: (1024 bit) Modulus (1024 bit):
00:a5:30:
0b:de:97:d0:
1b:f4:c7:9d:65:
57:f5:89:91:2e:80:
a3:a3:3d:76:da:89:c0:33:29:c5:a5:8b:
f4:3b:f3:7d:54:d4:65:fa:c8:c0:
03:8e:f0:61:d9:70:cf:fa:dd:e2:04:
|
