第 18 章 Zabbix

目录

18.1. Installing and Configuring Zabbix
18.1.1. Ubuntu
18.1.2. CentOS Zabbix 2.4
18.1.3. Zabbix 3.x CentOS 7
18.2. web ui
18.2.1. 警告脚本
18.3. zabbix-java-gateway - Zabbix java gateway
18.4. zabbix-agent
18.4.1. Ubuntu
18.4.2. CentOS 7
18.4.3. zabbix_agentd 命令
18.4.4. Nginx status 监控
18.4.5. redis
18.4.6. MongoDB
18.4.6.1. 创建 Mongo 监控用户
18.4.6.2. Zabbix agentd 配置
18.4.6.3. Zabbix server 测试
18.4.7. PHP-FPM
18.4.7.1. 启用 php-fpm status 功能
18.4.7.2. 配置 nginx
18.4.7.3. 配置 Zabbix 代理
18.4.7.4. php-fpm 监控参数
18.4.8. Elasticsearch
18.4.8.1. 安装采集脚本
18.4.8.2. 配置Zabbix代理
18.4.9. Postfix
18.4.9.1. 安装采集脚本
18.4.9.2. userparameter_postfix.conf
18.4.10. TCP stats
18.4.10.1. 采集脚本
18.4.11. 应用依赖检查
18.4.12. Oracle
18.4.12.1. 采集脚本
18.4.12.2.

18.1. Installing and Configuring Zabbix

18.1.1. Ubuntu

neo@monitor:~$ apt-cache search zabbix
zabbix-agent - network monitoring solution - agent
zabbix-frontend-php - network monitoring solution - PHP front-end
zabbix-proxy-mysql - network monitoring solution - proxy (using MySQL)
zabbix-proxy-pgsql - network monitoring solution - proxy (using PostgreSQL)
zabbix-server-mysql - network monitoring solution - server (using MySQL)
zabbix-server-pgsql - network monitoring solution - server (using PostgreSQL)

GRANT ALL PRIVILEGES ON zabbix.* TO 'zabbix'@'localhost' IDENTIFIED BY 'chen' WITH GRANT OPTION;
FLUSH PRIVILEGES;

sudo apt-get install zabbix-server-mysql zabbix-frontend-php


如果上述过程中遇到一些问题,可以手工安装数据库


$ sudo mysql -uroot -p -e"create database zabbix;"
$ sudo mysql -uroot -p -e"grant all privileges on zabbix.* to zabbix@localhost identified by 'enter-password-here';"
$ mysql -uzabbix -p zabbix < /usr/share/zabbix-server/mysql.sql
$ mysql -uzabbix -p zabbix < /usr/share/zabbix-server/data.sql
$ sudo dpkg-reconfigure zabbix-server-mysql



cat >> /etc/services <<EOF

zabbix-agent    10050/tcp                       #Zabbix Agent
zabbix-agent    10050/udp                       #Zabbix Agent
zabbix-trapper  10051/tcp                       #Zabbix Trapper
zabbix-trapper  10051/udp                       #Zabbix Trapper
EOF



18.1.2. CentOS Zabbix 2.4


yum localinstall -y http://repo.zabbix.com/zabbix/2.4/rhel/7/x86_64/zabbix-release-2.4-1.el7.noarch.rpm

yum install -y zabbix-server-mysql zabbix-web-mysql

cd /usr/share/doc/zabbix-server-mysql-2.4.0/create/

mysql -uzabbix -p zabbix < schema.sql
mysql -uzabbix -p zabbix < images.sql
mysql -uzabbix -p zabbix < data.sql

cp /etc/zabbix/zabbix_server.conf{,.original}
vim /etc/zabbix/zabbix_server.conf <<EOF > /dev/null 2>&1
:%s/# DBPassword=/DBPassword=your_password/
:wq
EOF

systemctl start zabbix-server
systemctl restart httpd



18.1.3. Zabbix 3.x CentOS 7

安装脚本


#!/bin/bash
##################################################
# Author: Neo <netkiller@msn.com>
# Website http://netkiller.github.io
##################################################
yum localinstall -y http://repo.zabbix.com/zabbix/3.2/rhel/7/x86_64/zabbix-release-3.2-1.el7.noarch.rpm

yum install -y zabbix-server-mysql zabbix-web-mysql

# CREATE DATABASE `zabbix` /*!40100 COLLATE 'utf8_general_ci' */

zcat /usr/share/doc/zabbix-server-mysql-3.2.1/create.sql.gz | mysql -uzabbix -p zabbix

cp /etc/zabbix/zabbix_server.conf{,.original}
vim /etc/zabbix/zabbix_server.conf <<EOF > /dev/null 2>&1
:%s/# DBPassword=/DBPassword=your_password/
:wq
EOF

systemctl enable httpd
systemctl enable zabbix-server

systemctl start zabbix-server
systemctl restart httpd



配置php.ini文件 date.timezone = Asia/Hong_Kong

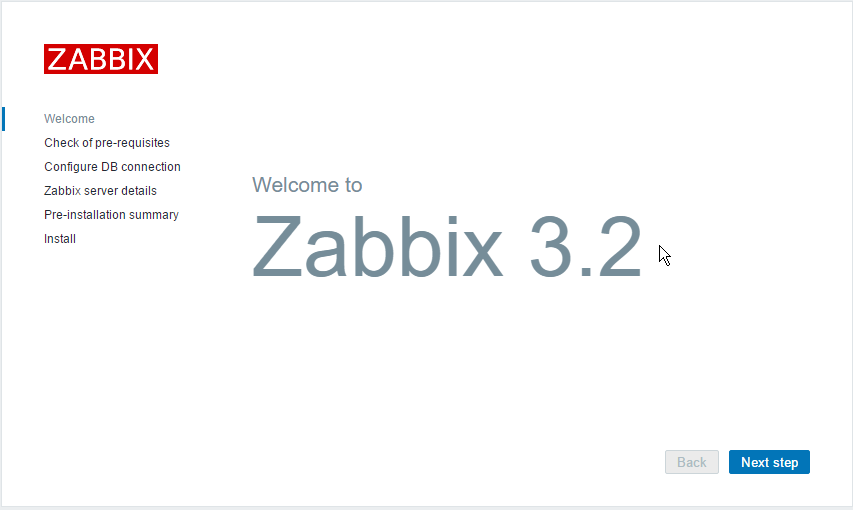

下一步

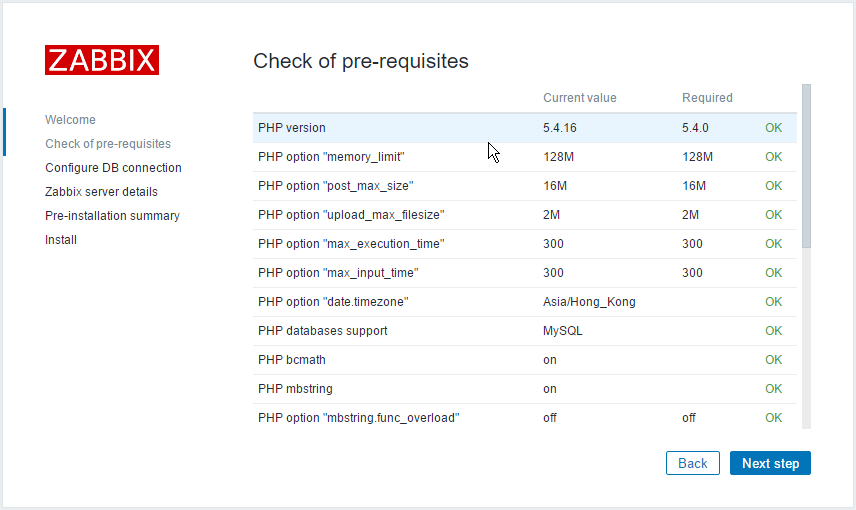

检查PHP模块与配置,如果未提示错误信息点击下一步按钮

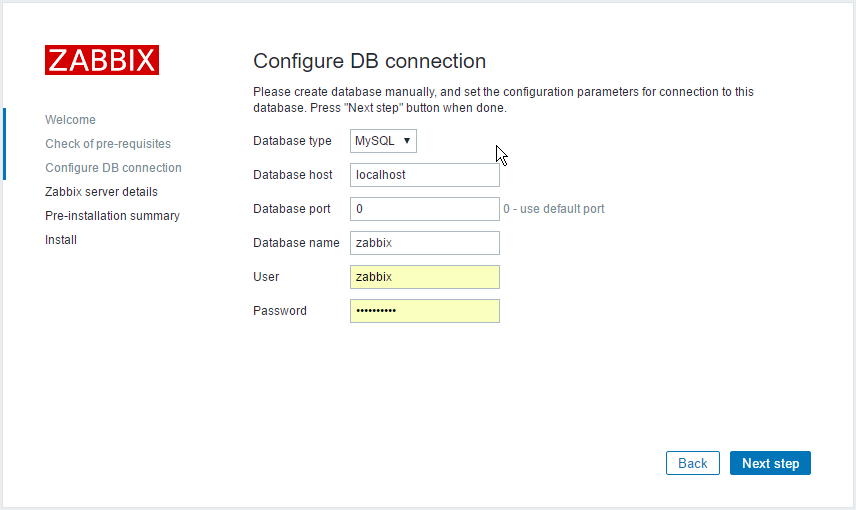

填写数据主机名,用户与密码,然后下一步

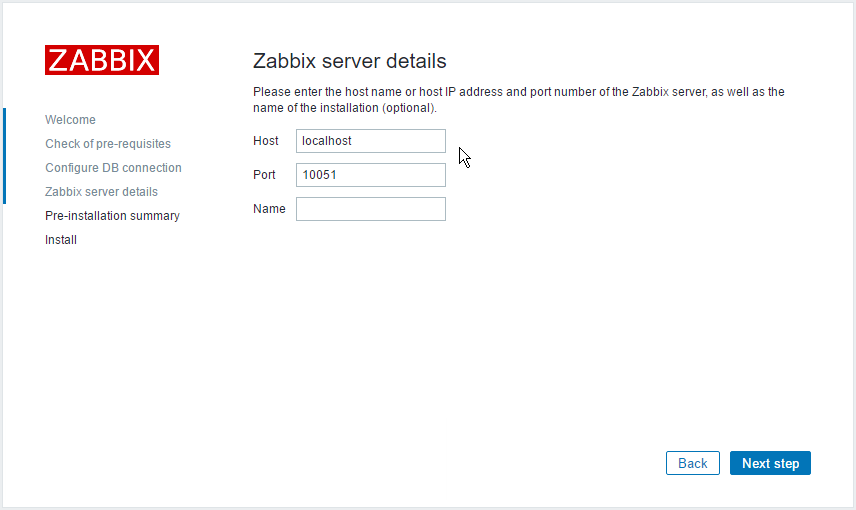

Zabbix Server 直接点击下一步

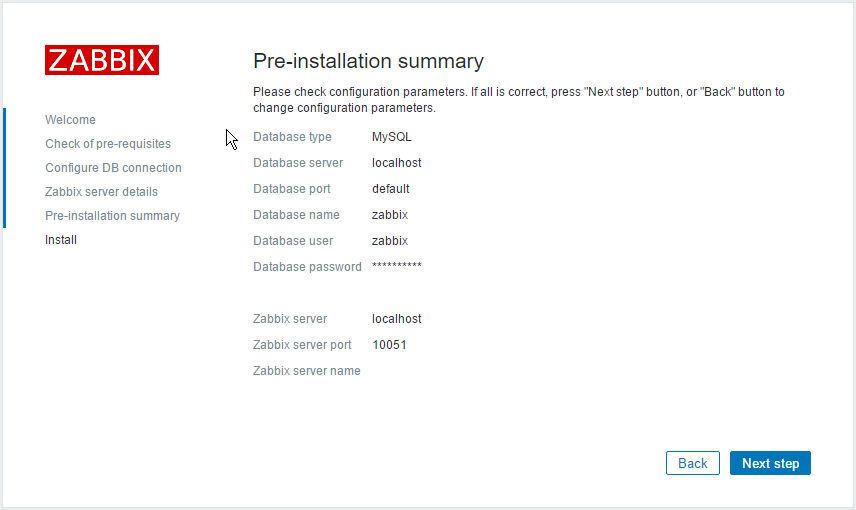

确认填写信息,如果不正确可以返回重新填写,确认安装点击下一步

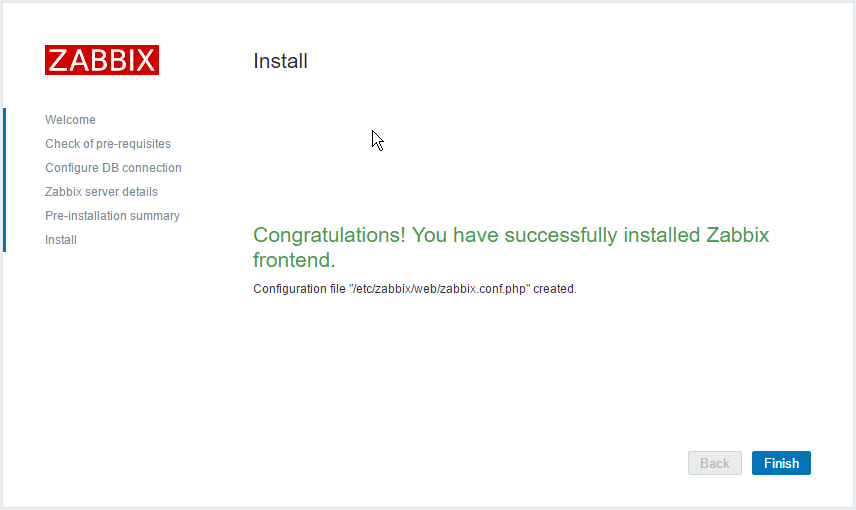

完成安装

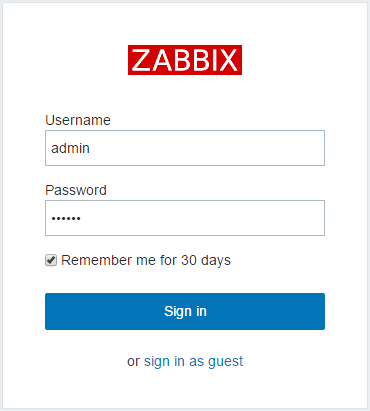

登陆Zabbix 默认用户名admin 密码 zabbix ,请务必登陆后修改密码
