13.2.1. 登陆 SonarQube

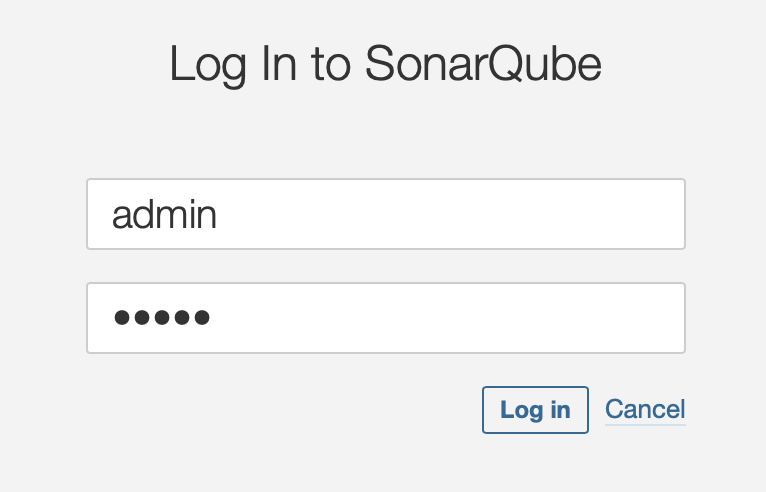

登陆 SonarQube，默认用户：admin，密码：admin http://localhost:9000

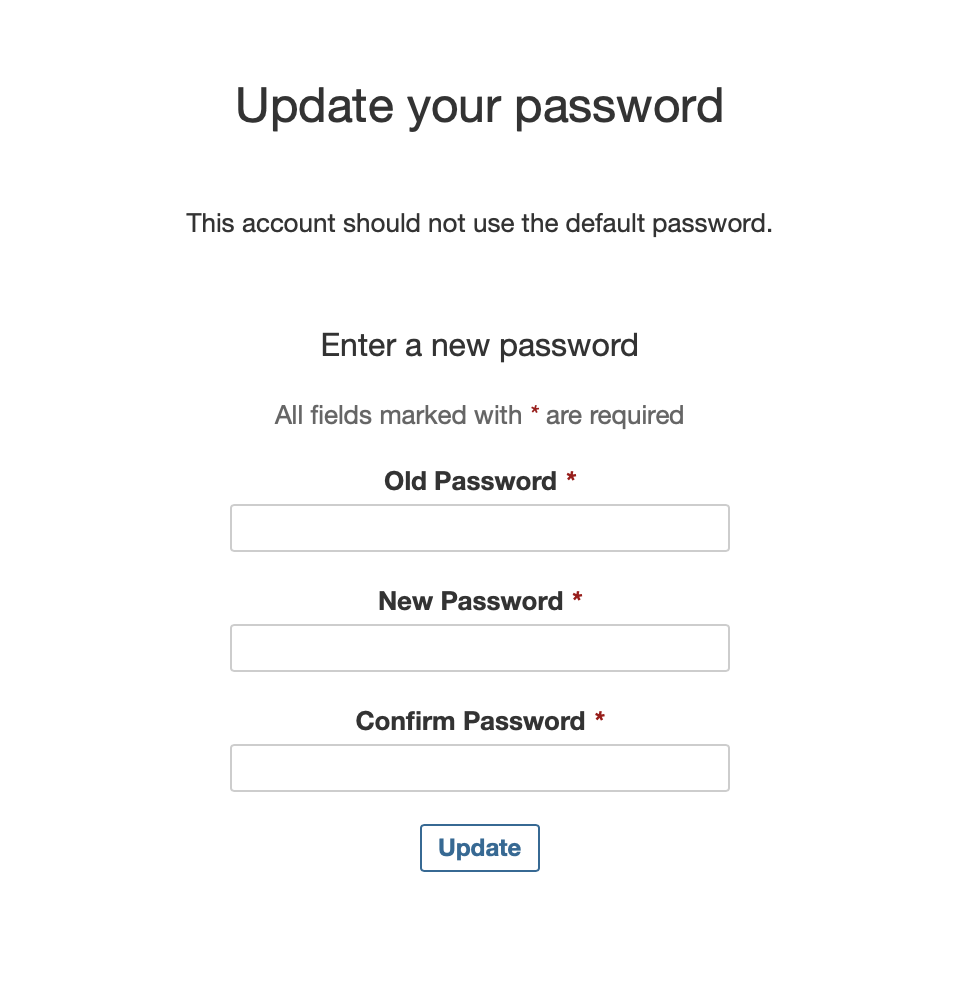

首次登陆会提示修改密码

登陆成功

13.2.2. 本地 maven 执行 SonarQube

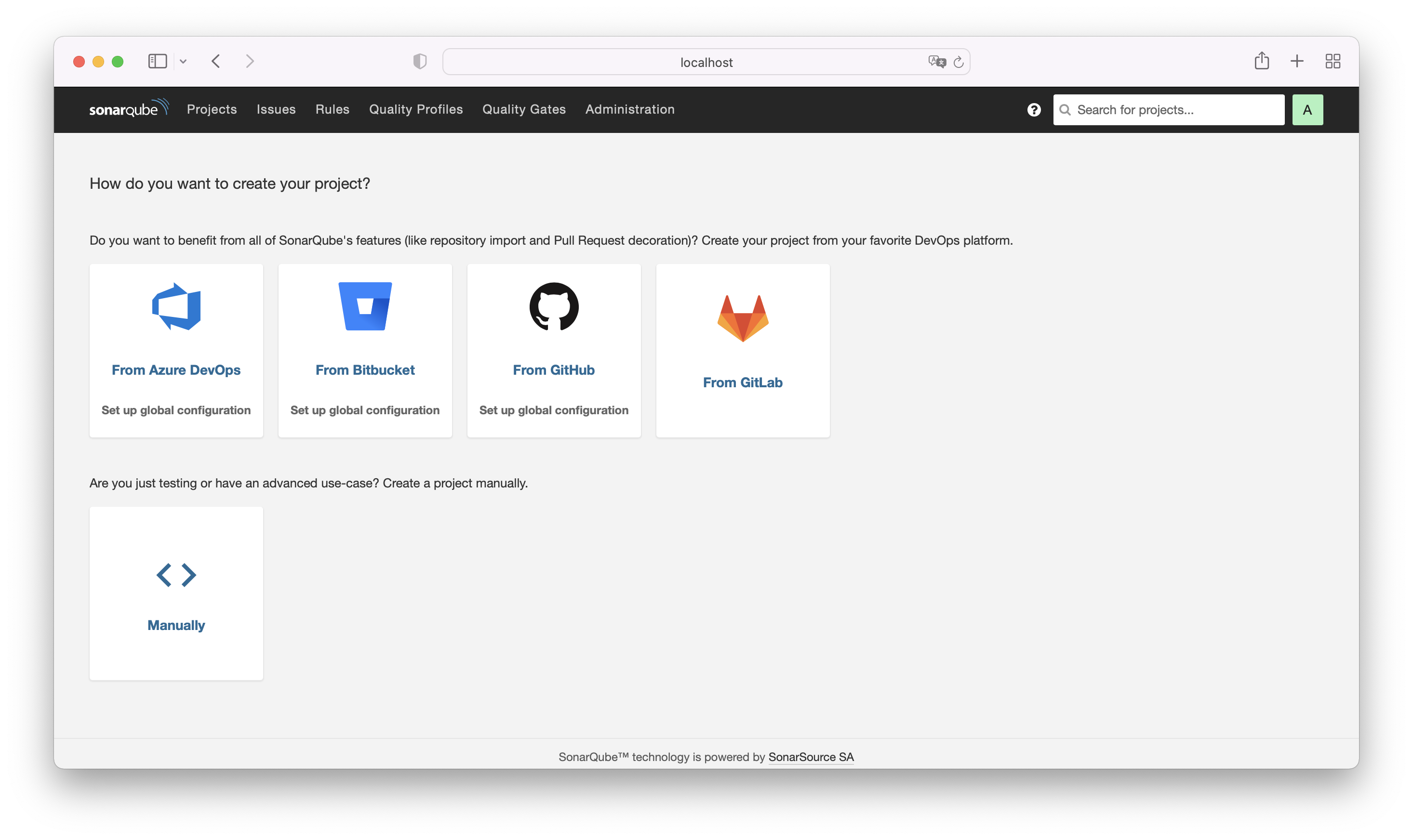

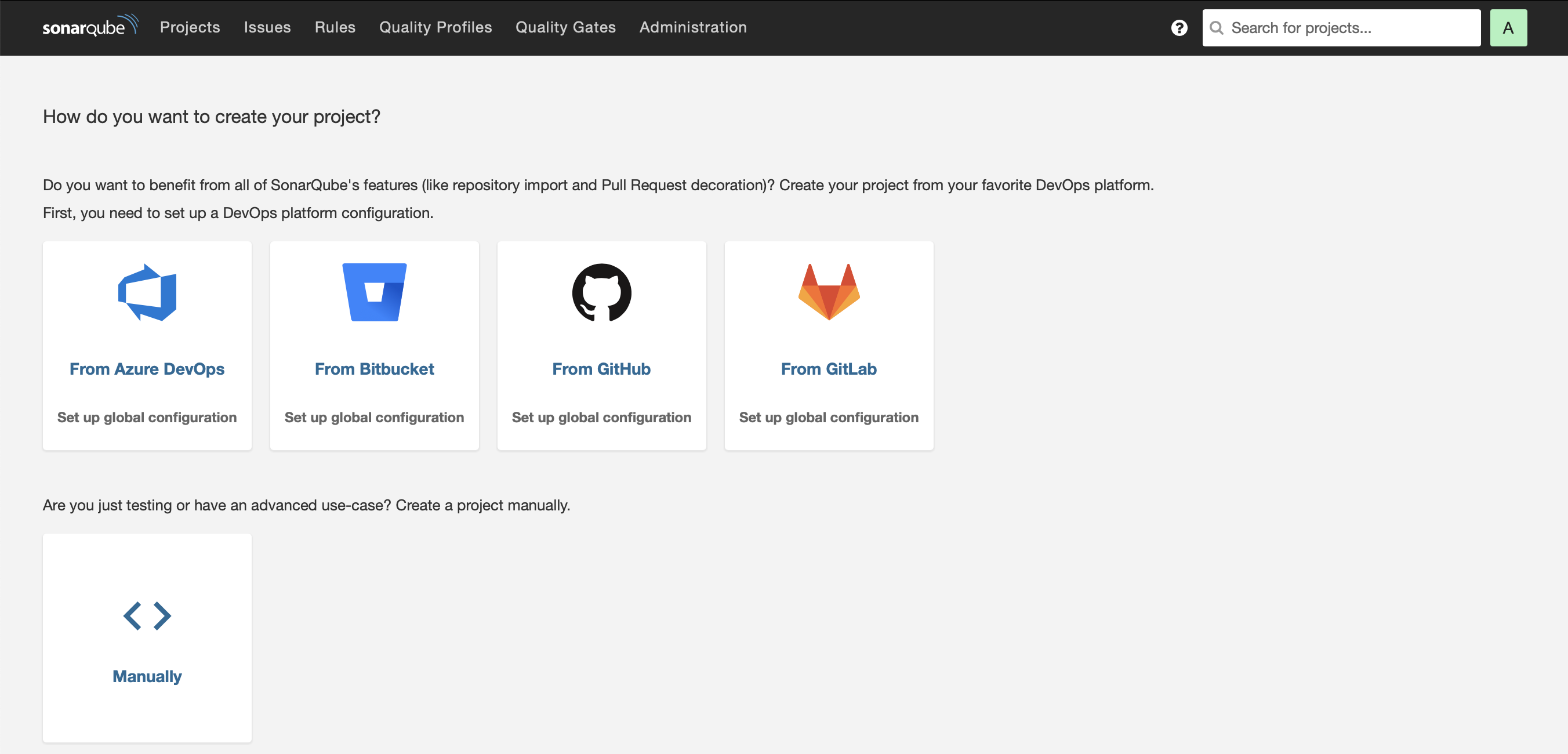

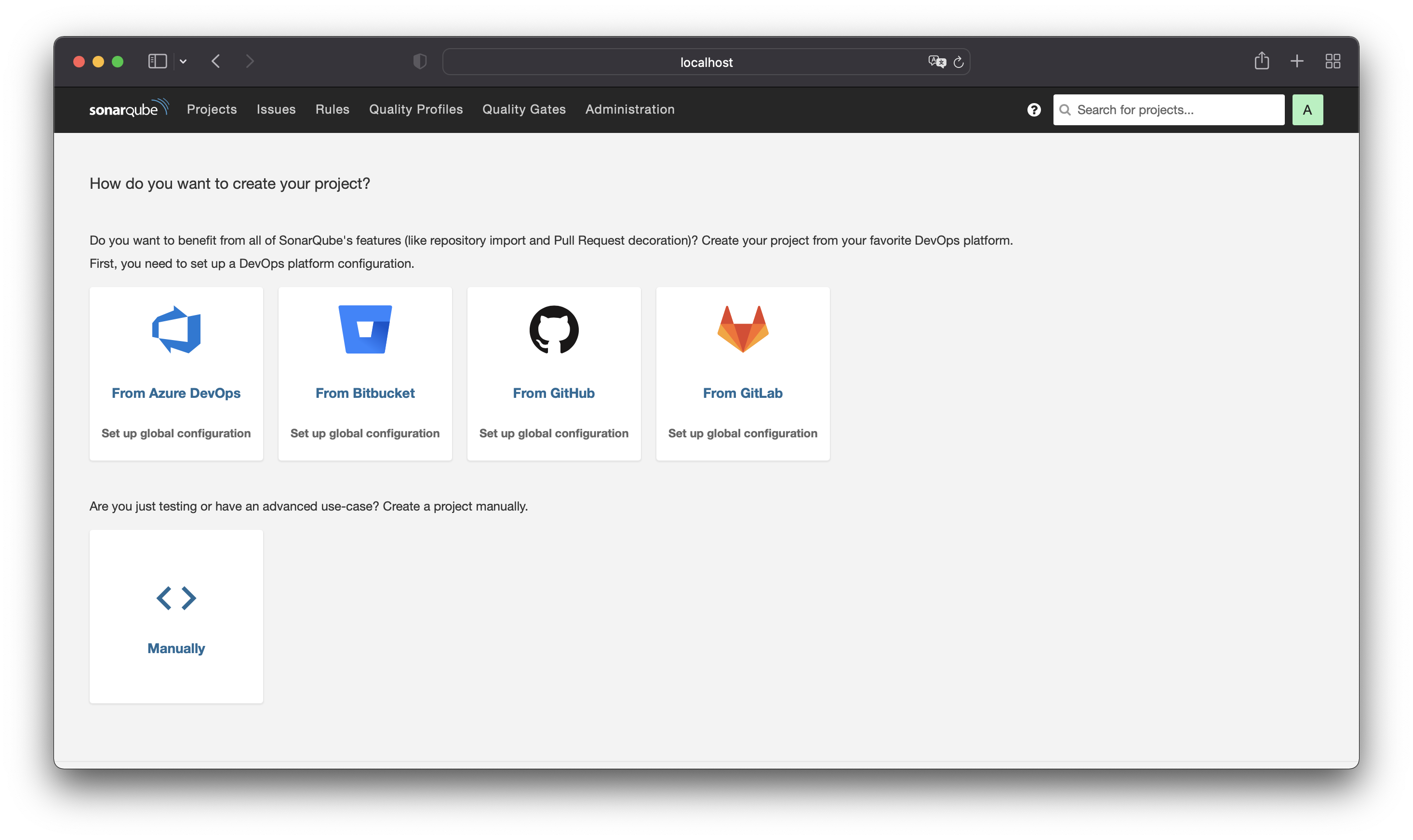

手工创建一个项目

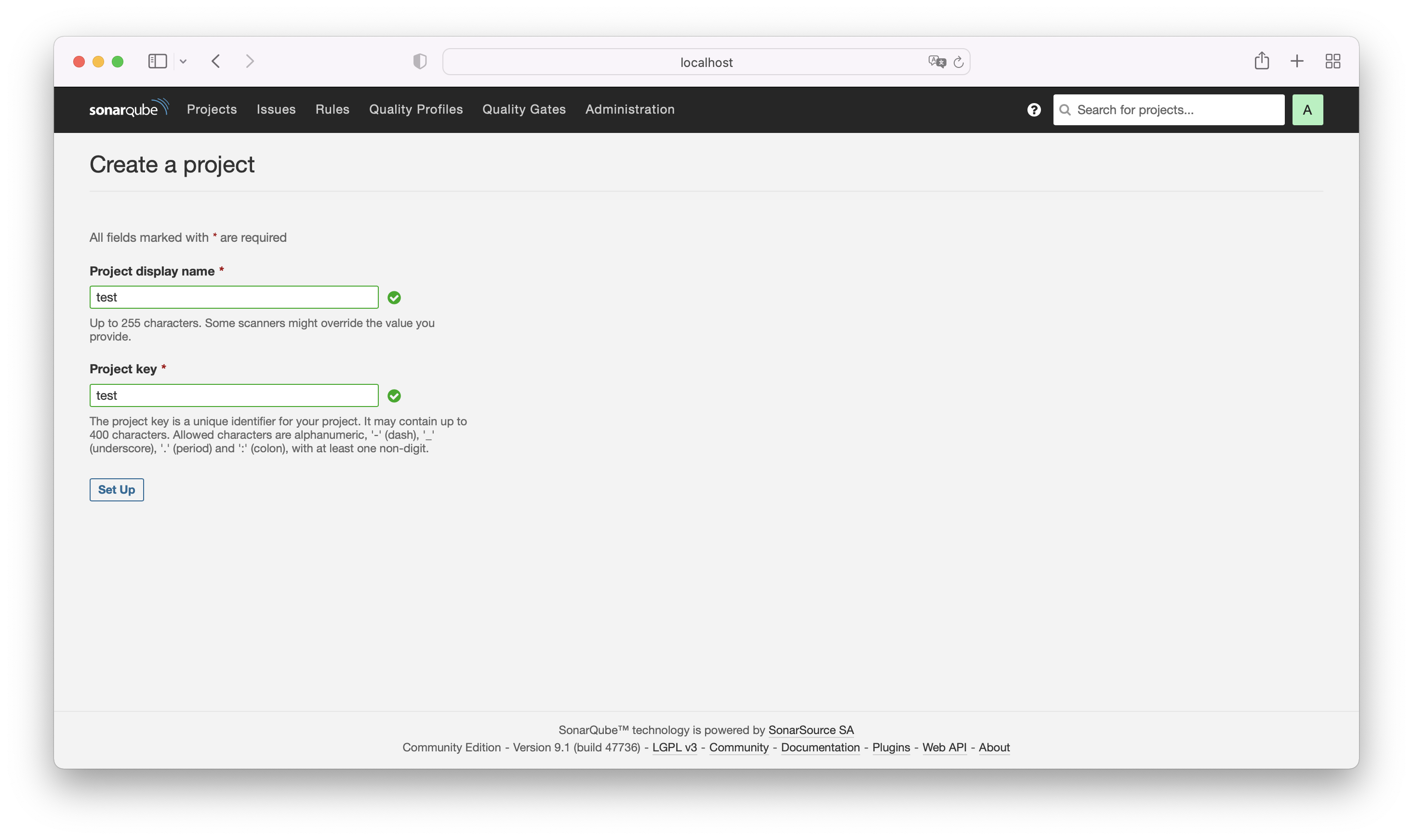

输入项目名称和密钥，然后点击“Set Up” 按钮

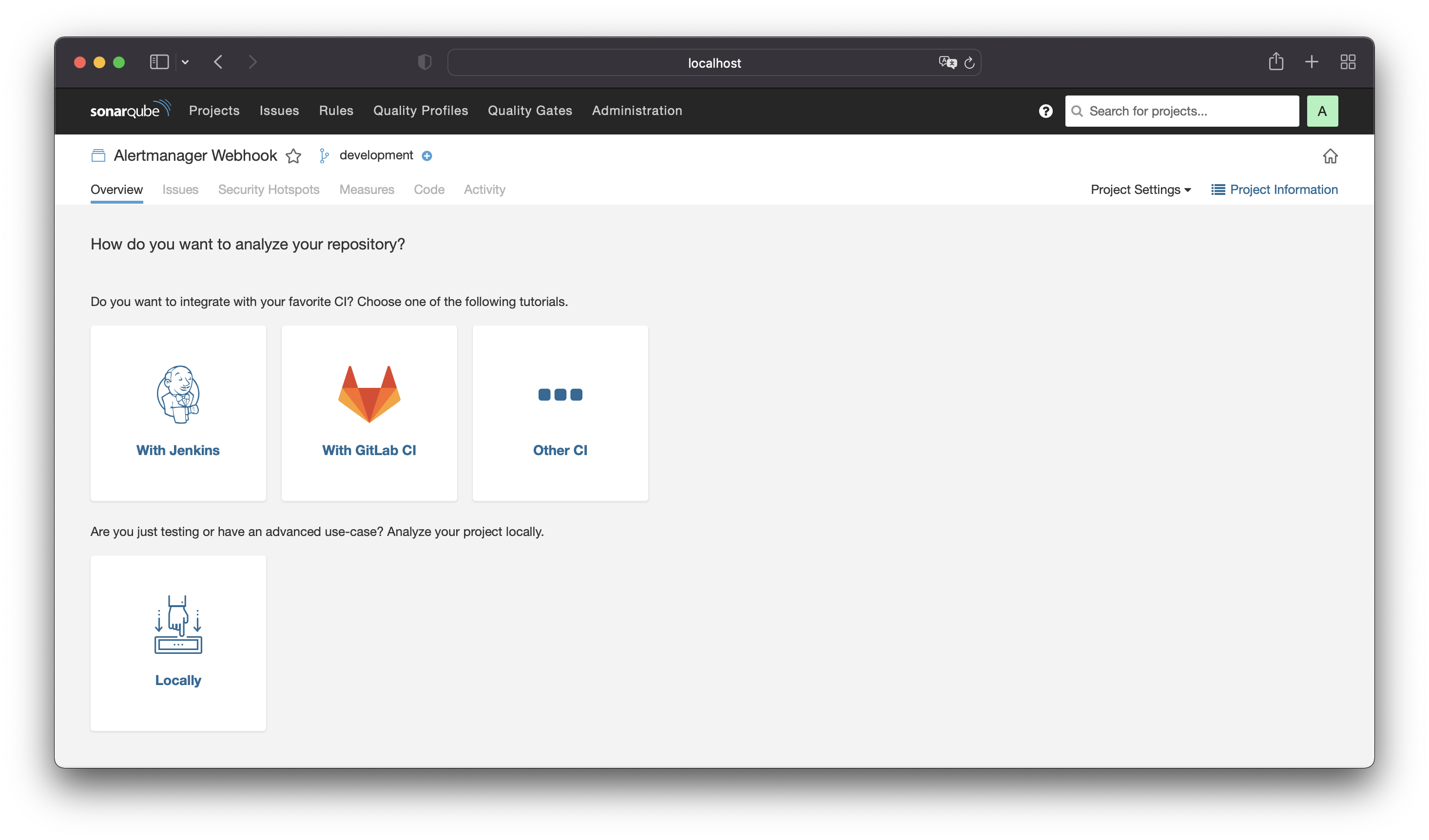

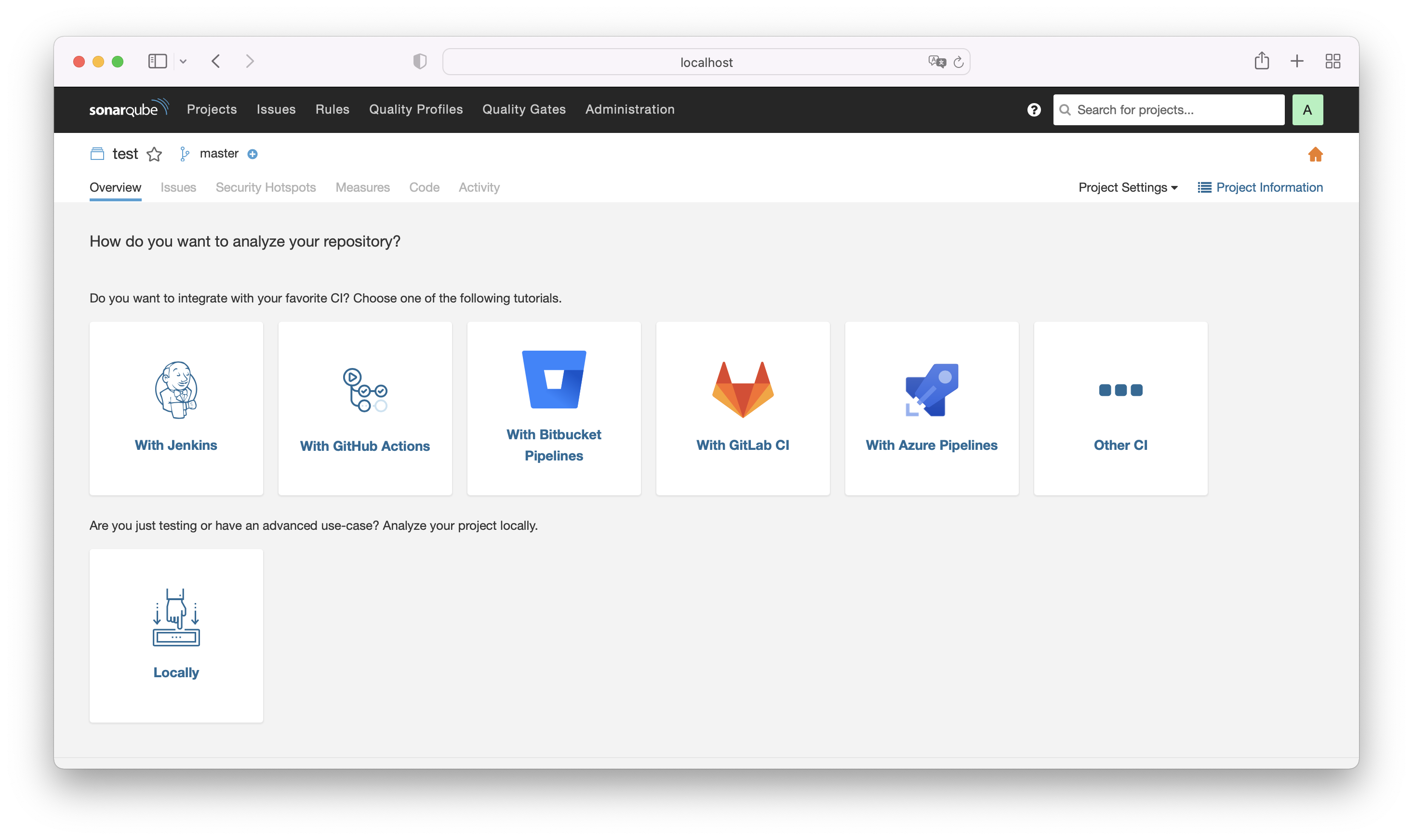

点击 "Locally" 分析本地项目

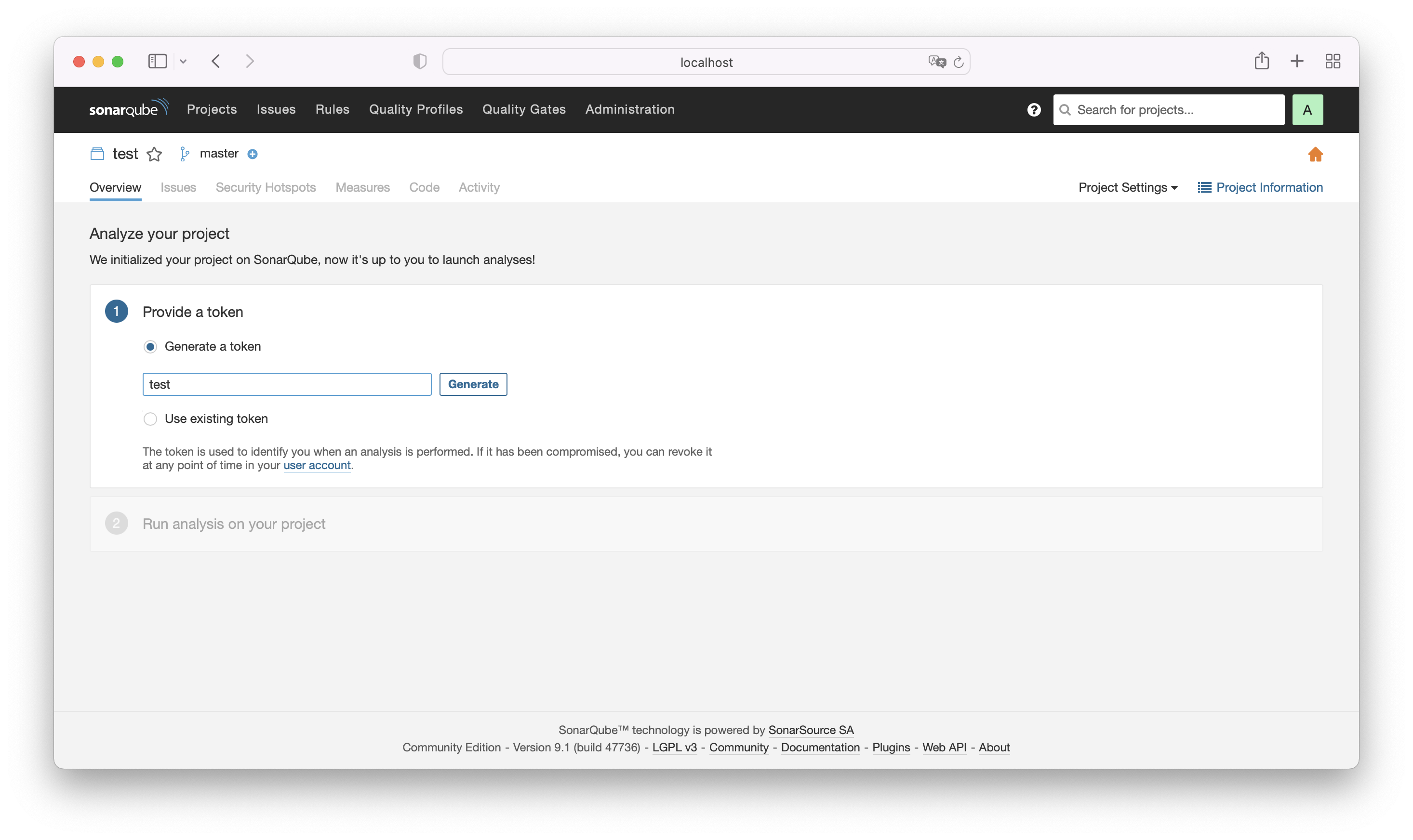

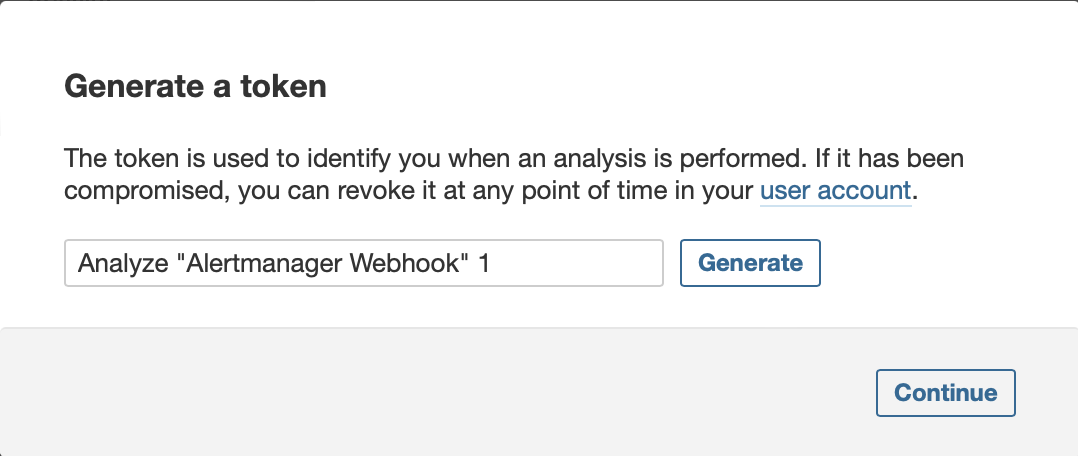

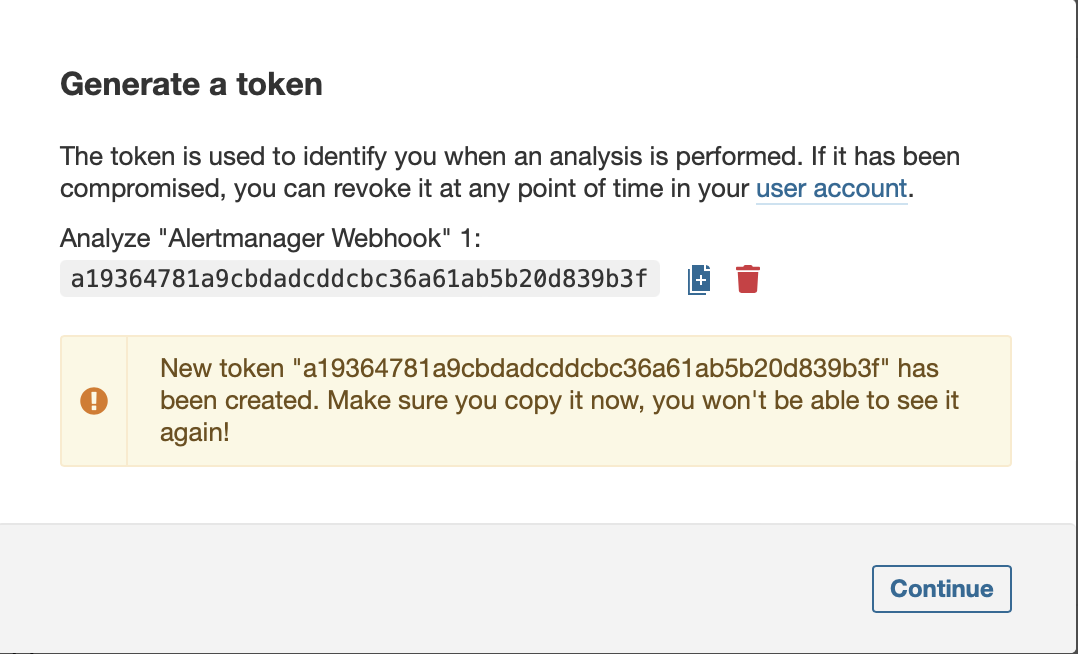

输入项目名称，点击“Generate”按钮生成 Token

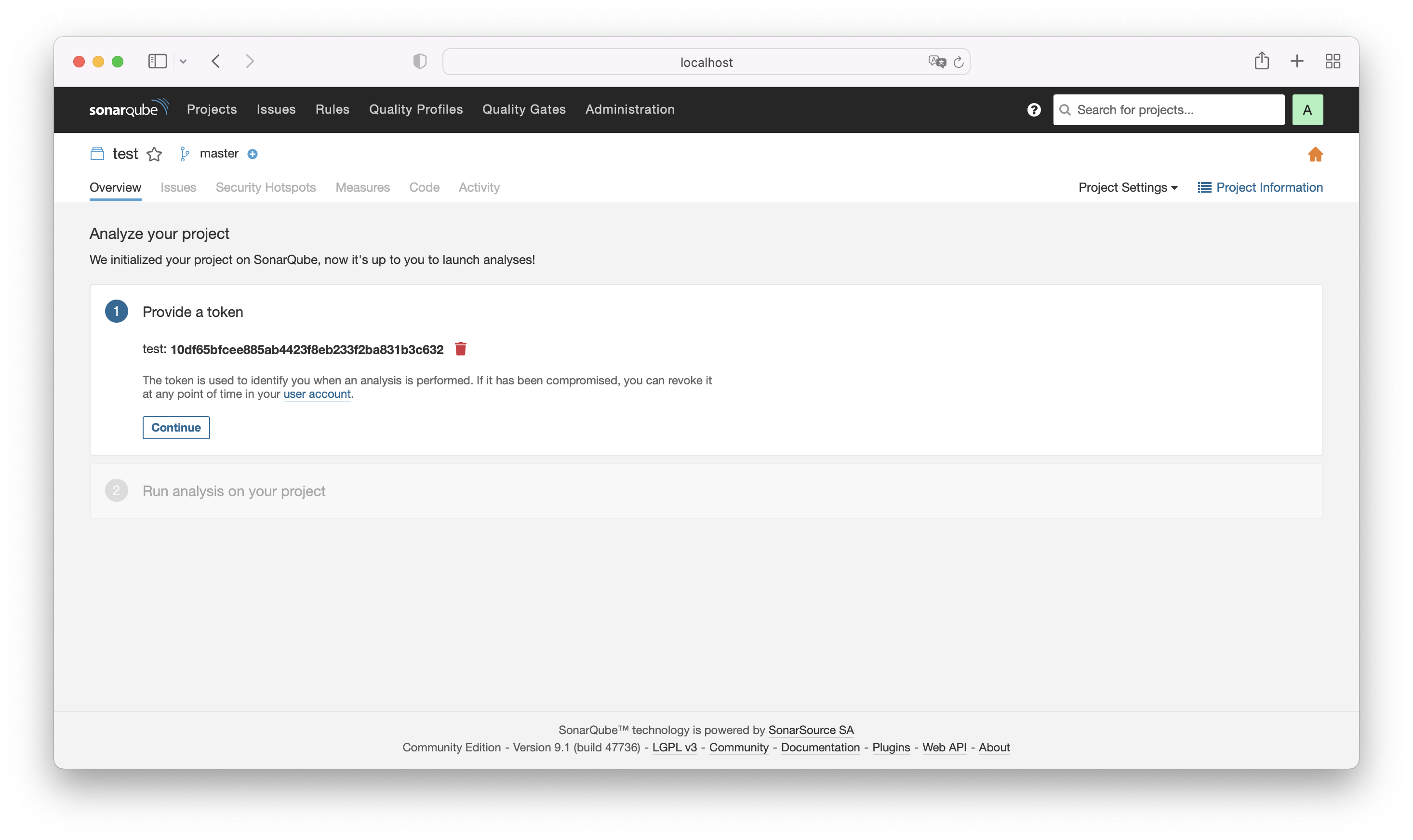

将 Token 保存好，然后点击 “Continue” 按钮继续

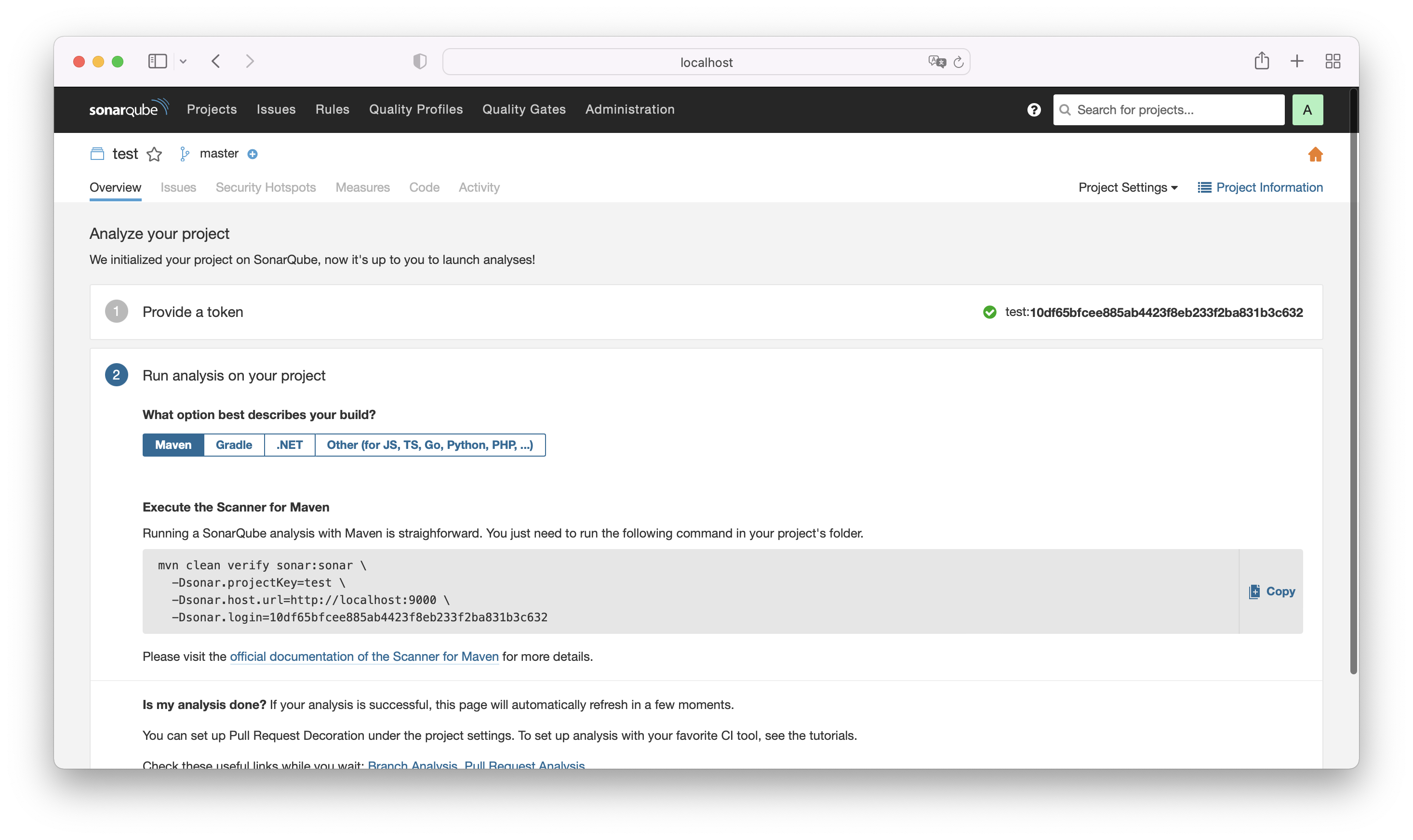

选择你的构建方式，我使用的是 Maven

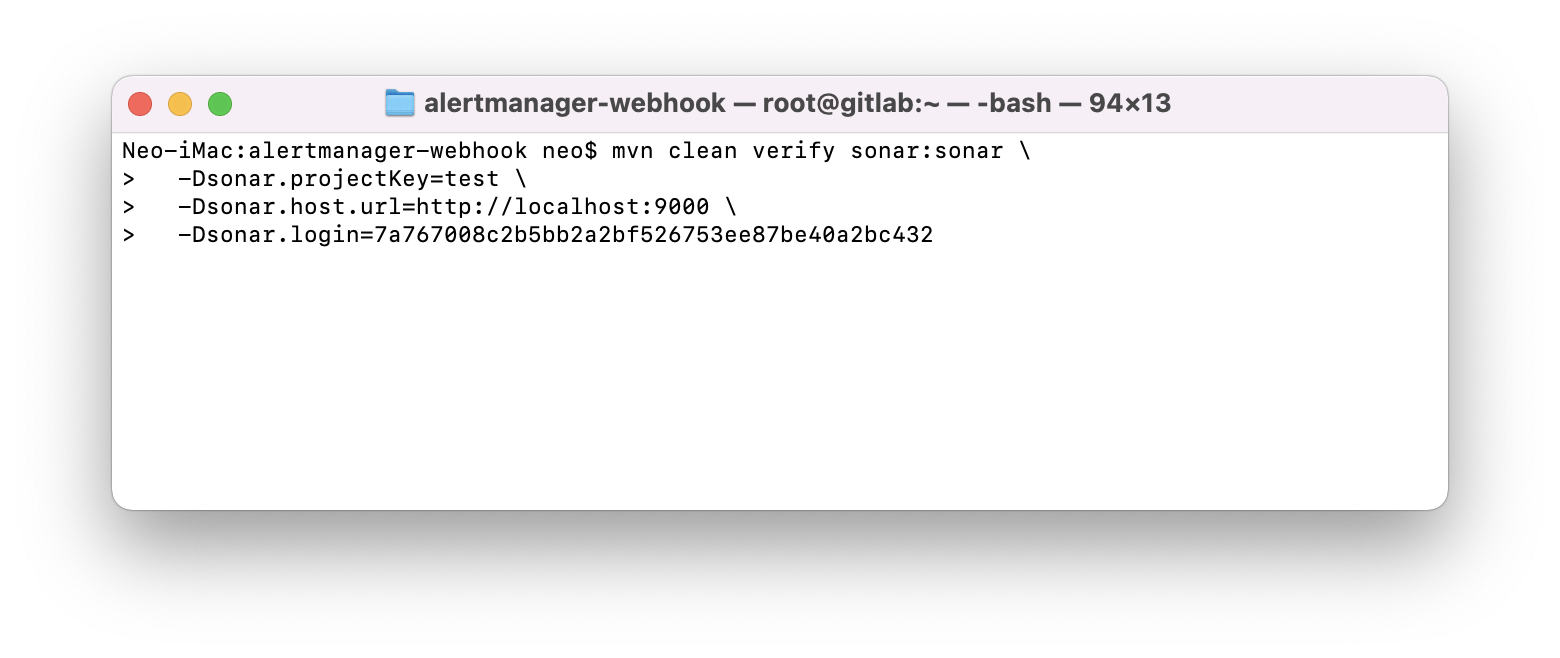

复制 Maven 命令，然后在你的项目下面执行。


mvn clean verify sonar:sonar \
  -Dsonar.projectKey=test \
  -Dsonar.host.url=http://192.168.30.20:9000 \
  -Dsonar.login=e4294feaa6e9f830bdb109a310de6cd59f3a0443

执行会输出下面信息


[INFO] ---------------------< cn.netkiller:alertmanager >----------------------
[INFO] Building alertmanager 0.0.1
[INFO] --------------------------------[ jar ]---------------------------------
[INFO]
[INFO] --- sonar-maven-plugin:3.9.0.2155:sonar (default-cli) @ alertmanager ---
[INFO] User cache: /Users/neo/.sonar/cache
[INFO] SonarQube version: 9.1.0
[INFO] Default locale: "en_CN", source code encoding: "UTF-8"
[INFO] Load global settings
[INFO] Load global settings (done) | time=199ms
[INFO] Server id: 243B8A4D-AXz9icqihL5ZxuJK9yra
[INFO] User cache: /Users/neo/.sonar/cache
[INFO] Load/download plugins
[INFO] Load plugins index
[INFO] Load plugins index (done) | time=81ms
[INFO] Load/download plugins (done) | time=316ms
[INFO] Process project properties
[INFO] Process project properties (done) | time=13ms
[INFO] Execute project builders
[INFO] Execute project builders (done) | time=1ms
[INFO] Project key: test
[INFO] Base dir: /Users/neo/workspace/alertmanager-webhook
[INFO] Working dir: /Users/neo/workspace/alertmanager-webhook/target/sonar
[INFO] Load project settings for component key: 'test'
[INFO] Load project settings for component key: 'test' (done) | time=58ms
[INFO] Load quality profiles
[INFO] Load quality profiles (done) | time=203ms
[INFO] Load active rules
[INFO] Load active rules (done) | time=5861ms
[INFO] Indexing files...
[INFO] Project configuration:
[INFO] 7 files indexed
[INFO] 0 files ignored because of scm ignore settings
[INFO] Quality profile for java: Sonar way
[INFO] Quality profile for xml: Sonar way
[INFO] ------------- Run sensors on module alertmanager
[INFO] Load metrics repository
[INFO] Load metrics repository (done) | time=67ms
[INFO] Sensor JavaSensor [java]
[INFO] Configured Java source version (sonar.java.source): 17
[INFO] JavaClasspath initialization
[INFO] JavaClasspath initialization (done) | time=10ms
[INFO] JavaTestClasspath initialization
[INFO] JavaTestClasspath initialization (done) | time=1ms
[INFO] Java "Main" source files AST scan
[INFO] 5 source files to be analyzed
[INFO] Load project repositories
[INFO] Load project repositories (done) | time=63ms
[INFO] 5/5 source files have been analyzed
[INFO] Java "Main" source files AST scan (done) | time=2271ms
[INFO] Java "Test" source files AST scan
[INFO] 1 source file to be analyzed
[INFO] 1/1 source file has been analyzed
[INFO] Java "Test" source files AST scan (done) | time=41ms
[INFO] No "Generated" source files to scan.
[INFO] Sensor JavaSensor [java] (done) | time=2833ms
[INFO] Sensor CSS Rules [cssfamily]
[INFO] No CSS, PHP, HTML or VueJS files are found in the project. CSS analysis is skipped.
[INFO] Sensor CSS Rules [cssfamily] (done) | time=1ms
[INFO] Sensor JaCoCo XML Report Importer [jacoco]
[INFO] 'sonar.coverage.jacoco.xmlReportPaths' is not defined. Using default locations: target/site/jacoco/jacoco.xml,target/site/jacoco-it/jacoco.xml,build/reports/jacoco/test/jacocoTestReport.xml
[INFO] No report imported, no coverage information will be imported by JaCoCo XML Report Importer
[INFO] Sensor JaCoCo XML Report Importer [jacoco] (done) | time=2ms
[INFO] Sensor C# Project Type Information [csharp]
[INFO] Sensor C# Project Type Information [csharp] (done) | time=0ms
[INFO] Sensor C# Analysis Log [csharp]
[INFO] Sensor C# Analysis Log [csharp] (done) | time=55ms
[INFO] Sensor C# Properties [csharp]
[INFO] Sensor C# Properties [csharp] (done) | time=0ms
[INFO] Sensor SurefireSensor [java]
[INFO] parsing [/Users/neo/workspace/alertmanager-webhook/target/surefire-reports]
[INFO] Sensor SurefireSensor [java] (done) | time=2ms
[INFO] Sensor JavaXmlSensor [java]
[INFO] 1 source file to be analyzed
[INFO] 1/1 source file has been analyzed
[INFO] Sensor JavaXmlSensor [java] (done) | time=201ms
[INFO] Sensor HTML [web]
[INFO] Sensor HTML [web] (done) | time=2ms
[INFO] Sensor XML Sensor [xml]
[INFO] 1 source file to be analyzed
[INFO] 1/1 source file has been analyzed
[INFO] Sensor XML Sensor [xml] (done) | time=179ms
[INFO] Sensor VB.NET Project Type Information [vbnet]
[INFO] Sensor VB.NET Project Type Information [vbnet] (done) | time=14ms
[INFO] Sensor VB.NET Analysis Log [vbnet]
[INFO] Sensor VB.NET Analysis Log [vbnet] (done) | time=42ms
[INFO] Sensor VB.NET Properties [vbnet]
[INFO] Sensor VB.NET Properties [vbnet] (done) | time=0ms
[INFO] ------------- Run sensors on project
[INFO] Sensor Zero Coverage Sensor
[INFO] Sensor Zero Coverage Sensor (done) | time=23ms
[INFO] Sensor Java CPD Block Indexer
[INFO] Sensor Java CPD Block Indexer (done) | time=23ms
[INFO] SCM Publisher SCM provider for this project is: git
[INFO] SCM Publisher 7 source files to be analyzed
[INFO] SCM Publisher 7/7 source files have been analyzed (done) | time=169ms
[INFO] CPD Executor 1 file had no CPD blocks
[INFO] CPD Executor Calculating CPD for 4 files
[INFO] CPD Executor CPD calculation finished (done) | time=7ms
[INFO] Analysis report generated in 56ms, dir size=142.8 kB
[INFO] Analysis report compressed in 60ms, zip size=34.4 kB
[INFO] Analysis report uploaded in 121ms
[INFO] ------------- Check Quality Gate status
[INFO] Waiting for the analysis report to be processed (max 300s)
[INFO] QUALITY GATE STATUS: PASSED - View details on http://localhost:9000/dashboard?id=test
[INFO] Analysis total time: 23.392 s
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time:  01:15 min
[INFO] Finished at: 2021-11-08T15:21:59+08:00
[INFO] ------------------------------------------------------------------------

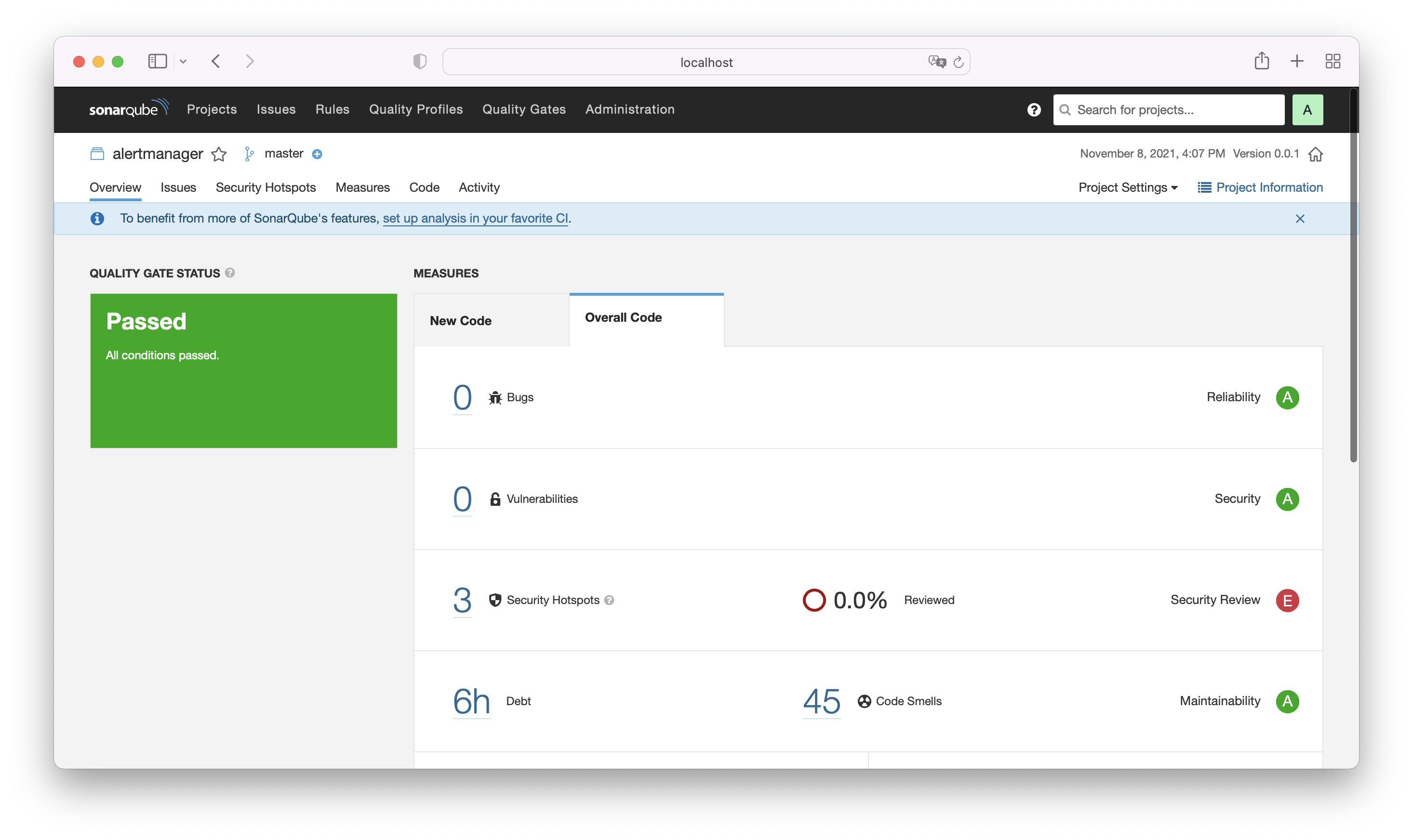

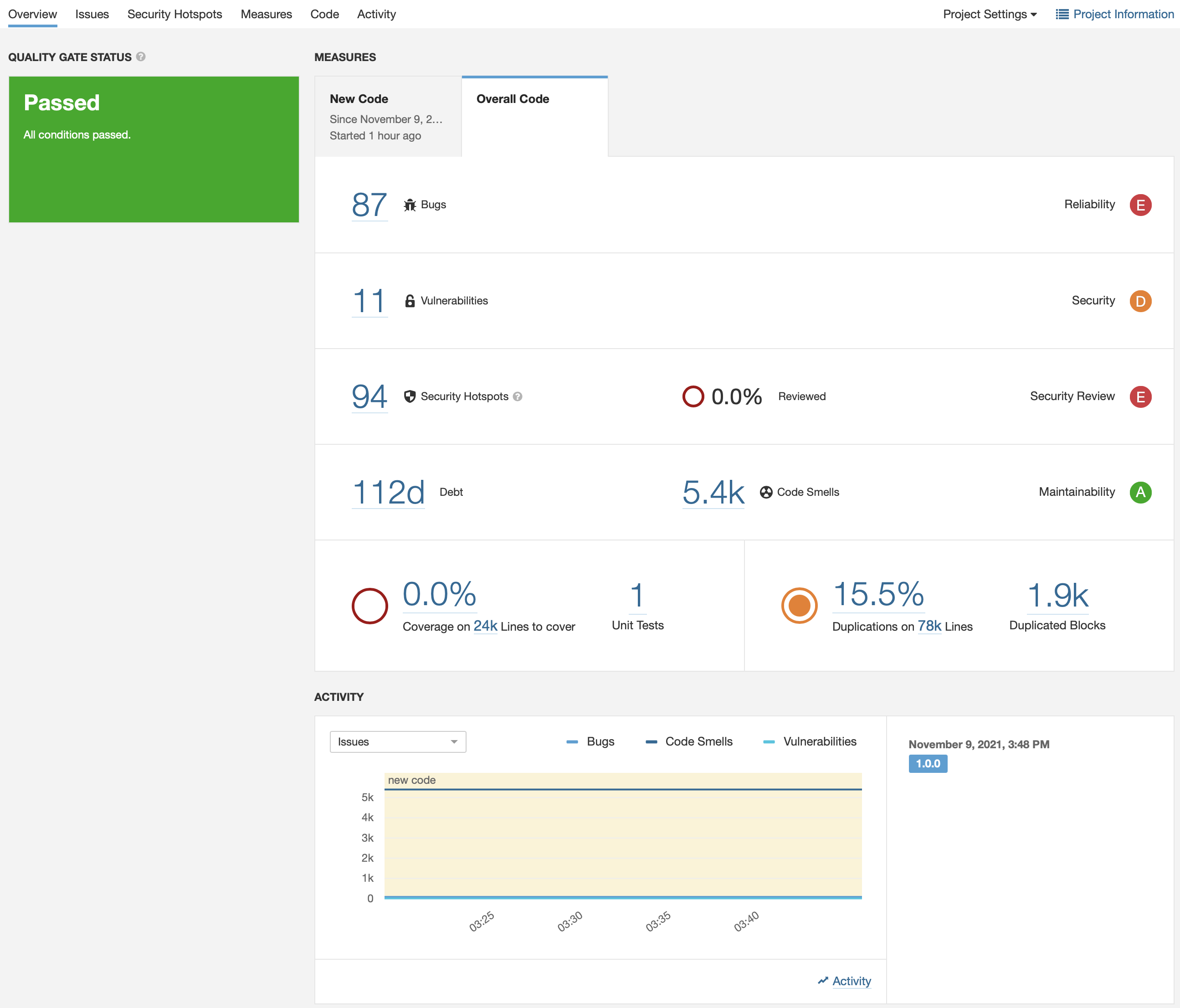

Maven 执行完成之后 SonarQube 会自动展示分析结果

这种方式需要手工执行 Maven，每次都需要指定三个参数，-Dsonar.projectKey=test -Dsonar.host.url=http://192.168.30.20:9000 -Dsonar.login=e4294feaa6e9f830bdb109a310de6cd59f3a0443，有没有更好的解决方案呢？

我们可以将这些参数写入到 setting.xml / pom.xml 文件，方法如下：

project/build/plugins 下面增加 sonar-maven-plugin


			<plugin>
				<groupId>org.sonarsource.scanner.maven</groupId>
				<artifactId>sonar-maven-plugin</artifactId>
				<version>3.9.0.2155</version>
			</plugin>

project/profiles 下面增加 sonar，profile 有两种写法，一种是使用用户名和密码，另一种是使用token


		<profile>
			<id>sonar</id>
			<activation>
				<activeByDefault>true</activeByDefault>
			</activation>
			<properties>
				<!-- Optional URL to server. Default value is http://localhost:9000 -->
				<sonar.host.url>http://localhost:9000</sonar.host.url>
				<sonar.login>admin</sonar.login>
				<sonar.password>your_password</sonar.password>
				<!-- <sonar.inclusions>**/*.java,**/*.xml</sonar.inclusions> -->
				<!-- <sonar.exclusions>**/cn/netkiller/test/*</sonar.exclusions> -->
			</properties>
		</profile>

		<profile>
			<id>sonar</id>
			<activation>
				<activeByDefault>true</activeByDefault>
			</activation>
			<properties>
				<!-- Optional URL to server. Default value is http://localhost:9000 -->
				<sonar.host.url>http://localhost:9000</sonar.host.url>
				<sonar.login>510966107d69cd32448fcc4372d1383e8d21092b</sonar.login>
				<sonar.password></sonar.password>
			</properties>
		</profile>

配置完成之后使用 mvn verify sonar:sonar 测试


Neo-iMac:microservice neo$ mvn verify sonar:sonar -Dmaven.test.skip=true

下面是完整的例子

例 13.1. SonarQube pom.xml 配置


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>cn.netkiller</groupId>
	<artifactId>microservice</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>pom</packaging>

	<name>microservice</name>
	<url>http://www.netkiller.cn</url>
	<description>Demo project for Spring Boot</description>

	<organization>
		<name>Netkiller Spring Cloud 手札</name>
		<url>http://www.netkiller.cn</url>
	</organization>

	<developers>
		<developer>
			<name>Neo</name>
			<email>netkiller@msn.com</email>
			<organization>Netkiller Spring Cloud 手札</organization>
			<organizationUrl>http://www.netkiller.cn</organizationUrl>
			<roles>
				<role>Author</role>
			</roles>
		</developer>
	</developers>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>17</java.version>
		<maven.compiler.source>${java.version}</maven.compiler.source>
		<maven.compiler.target>${java.version}</maven.compiler.target>
		<maven.compiler.release>${java.version}</maven.compiler.release>
		<spring-boot.version>2.4.0.RELEASE</spring-boot.version>
		<spring-cloud.version>2020.0.4</spring-cloud.version>
		<!-- <docker.registry>127.0.0.1:5000</docker.registry> -->
		<docker.registry>registry.netkiller.cn:5000</docker.registry>
		<docker.registry.name>netkiller</docker.registry.name>
		<docker.image.prefix>netkiller</docker.image.prefix>
		<docker.image>mcr.microsoft.com/java/jre:15-zulu-alpine</docker.image>
	</properties>

	<repositories>
		<repository>
			<id>alimaven</id>
			<name>Maven Aliyun Mirror</name>
			<url>http://maven.aliyun.com/nexus/content/repositories/central/</url>
			<releases>
				<enabled>true</enabled>
			</releases>
			<snapshots>
				<enabled>false</enabled>
			</snapshots>
		</repository>
	</repositories>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.5.6</version>
		<relativePath />
	</parent>

	<dependencyManagement>
		<dependencies>
			<dependency>
				<groupId>org.springframework.cloud</groupId>
				<artifactId>spring-cloud-dependencies</artifactId>
				<version>${spring-cloud.version}</version>
				<type>pom</type>
				<scope>import</scope>
			</dependency>
		</dependencies>
	</dependencyManagement>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-actuator</artifactId>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>org.projectlombok</groupId>
			<artifactId>lombok</artifactId>
		</dependency>
	</dependencies>

	<modules>
		<module>eureka</module>
		<module>gateway</module>
		<module>config</module>
		<module>webflux</module>
		<module>openfeign</module>
		<module>restful</module>
		<module>sleuth</module>
		<module>oauth2</module>
		<module>welcome</module>
		<module>test</module>
		<module>aliyun</module>
	</modules>

	<profiles>
		<profile>
			<id>dev</id>
			<properties>
				<profiles.active>dev</profiles.active>
			</properties>
			<activation>
				<activeByDefault>true</activeByDefault>
			</activation>
		</profile>
		<profile>
			<id>prod</id>
			<properties>
				<profiles.active>prod</profiles.active>
			</properties>
		</profile>
		<profile>
			<id>test</id>
			<properties>
				<profiles.active>test</profiles.active>
			</properties>
		</profile>

		<profile>
			<id>sonar</id>
			<activation>
				<activeByDefault>true</activeByDefault>
			</activation>
			<properties>
				<!-- Optional URL to server. Default value is http://localhost:9000 -->
				<sonar.host.url>http://localhost:9000</sonar.host.url>
				<sonar.login>admin</sonar.login>
				<sonar.password>******</sonar.password>
				<!-- <sonar.inclusions>**/*.java,**/*.xml</sonar.inclusions> -->
				<!-- <sonar.exclusions>**/cn/netkiller/test/*</sonar.exclusions> -->
			</properties>
		</profile>

	</profiles>

	<build>
		<plugins>
			<plugin>
				<artifactId>maven-surefire-plugin</artifactId>
				<configuration>
					<skip>true</skip>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.sonarsource.scanner.maven</groupId>
				<artifactId>sonar-maven-plugin</artifactId>
				<version>3.9.0.2155</version>
			</plugin>
			<plugin>
				<groupId>org.jacoco</groupId>
				<artifactId>jacoco-maven-plugin</artifactId>
				<version>0.8.7</version>
				<executions>
					<execution>
						<goals>
							<goal>prepare-agent</goal>
						</goals>
					</execution>
					<execution>
						<id>report</id>
						<phase>test</phase>
						<goals>
							<goal>report</goal>
						</goals>
					</execution>
				</executions>
			</plugin>
		</plugins>
	</build>

</project>

13.2.3. 集成 Gitlab

创建项目

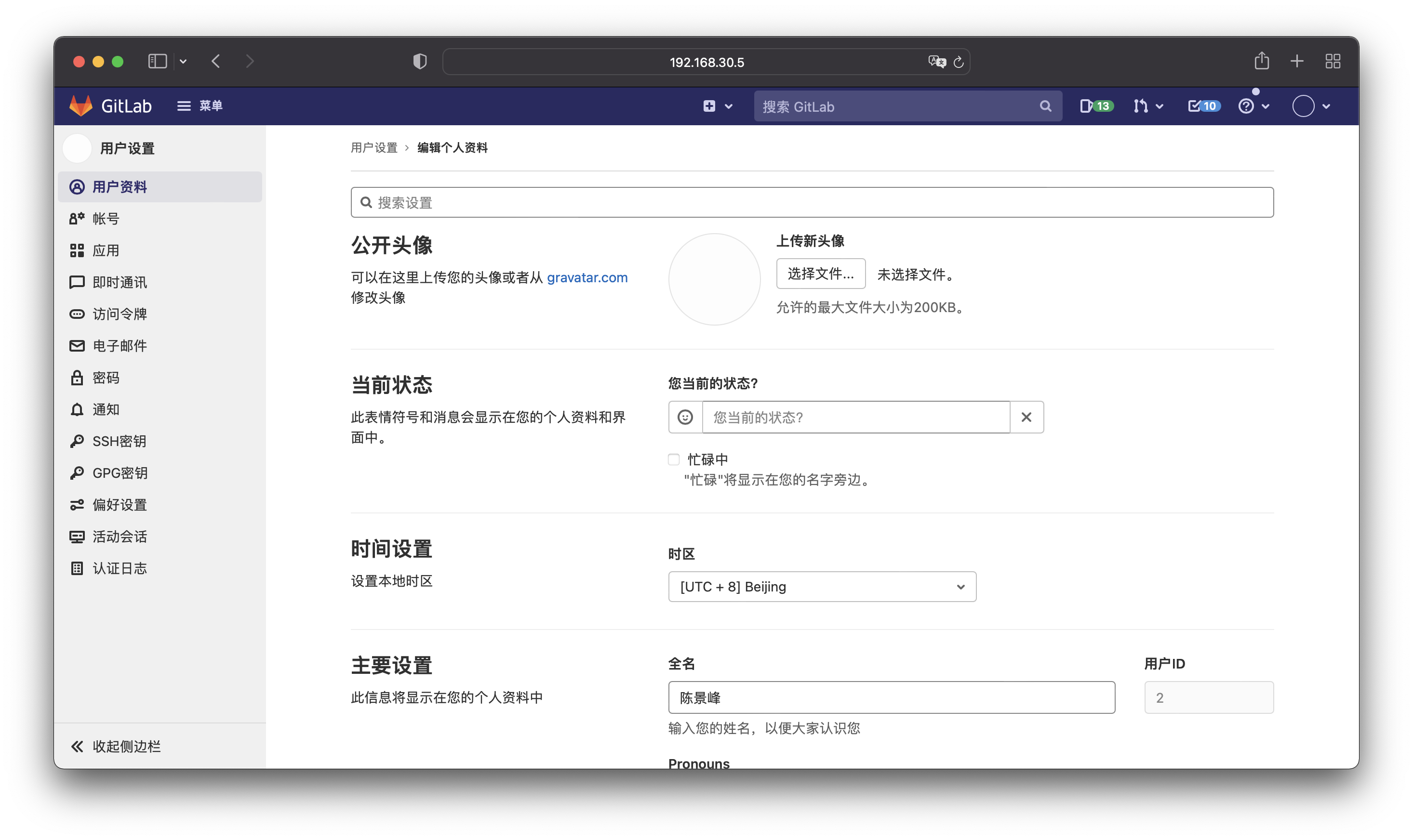

选择 “From GitLab”，现在切换到 Gitlab，进入用户设置

选择访问令牌

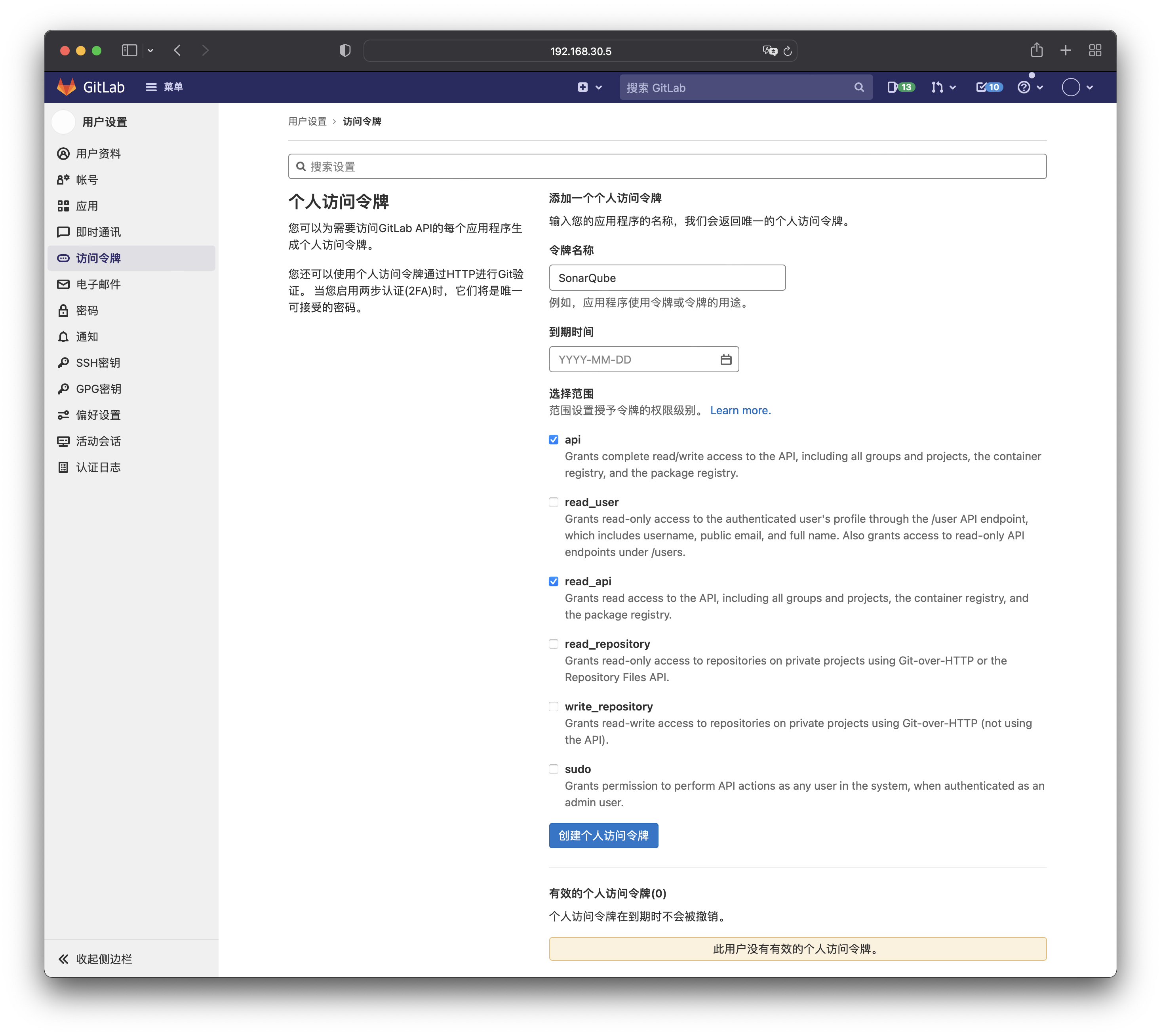

输入令牌名称，勾选 api 和 read_api，最后点击“创建个人访问令牌”按钮

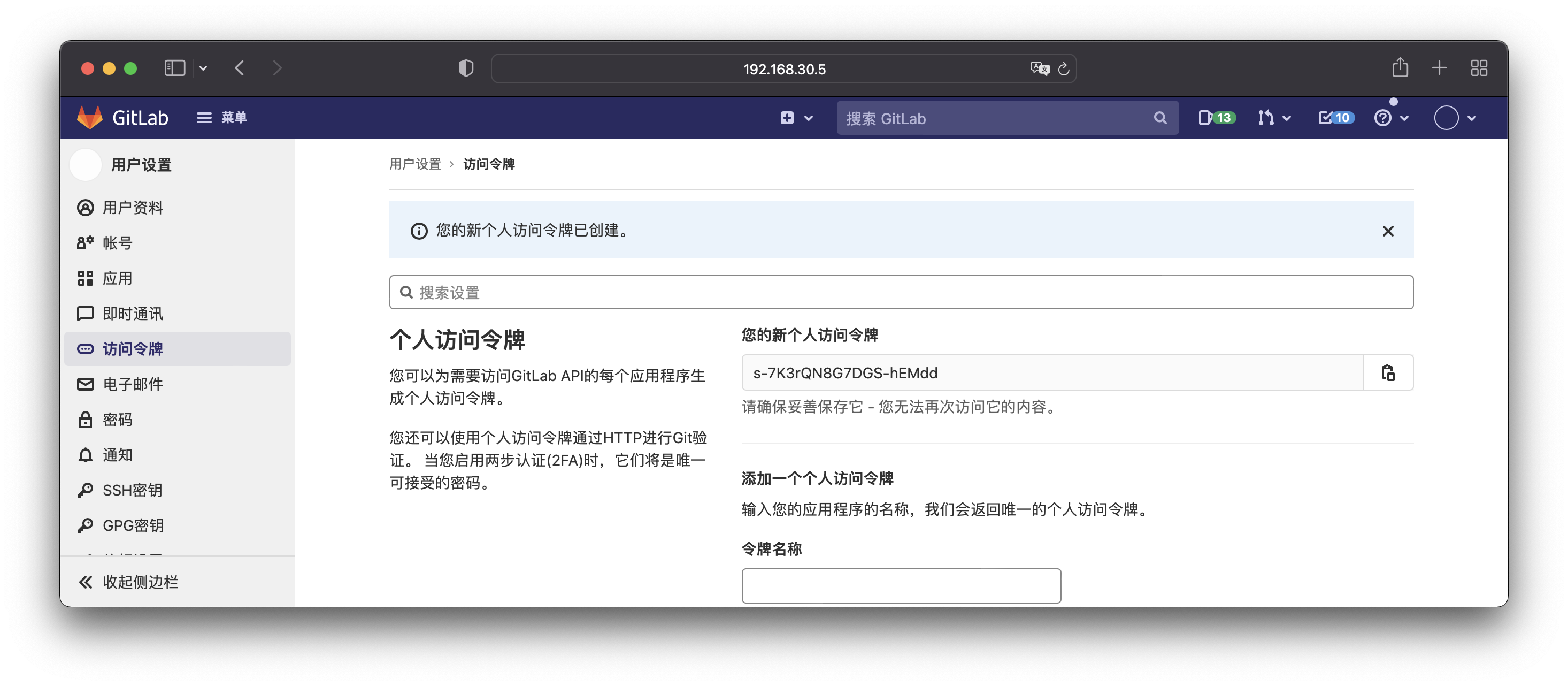

复制“您的新个人访问令牌”

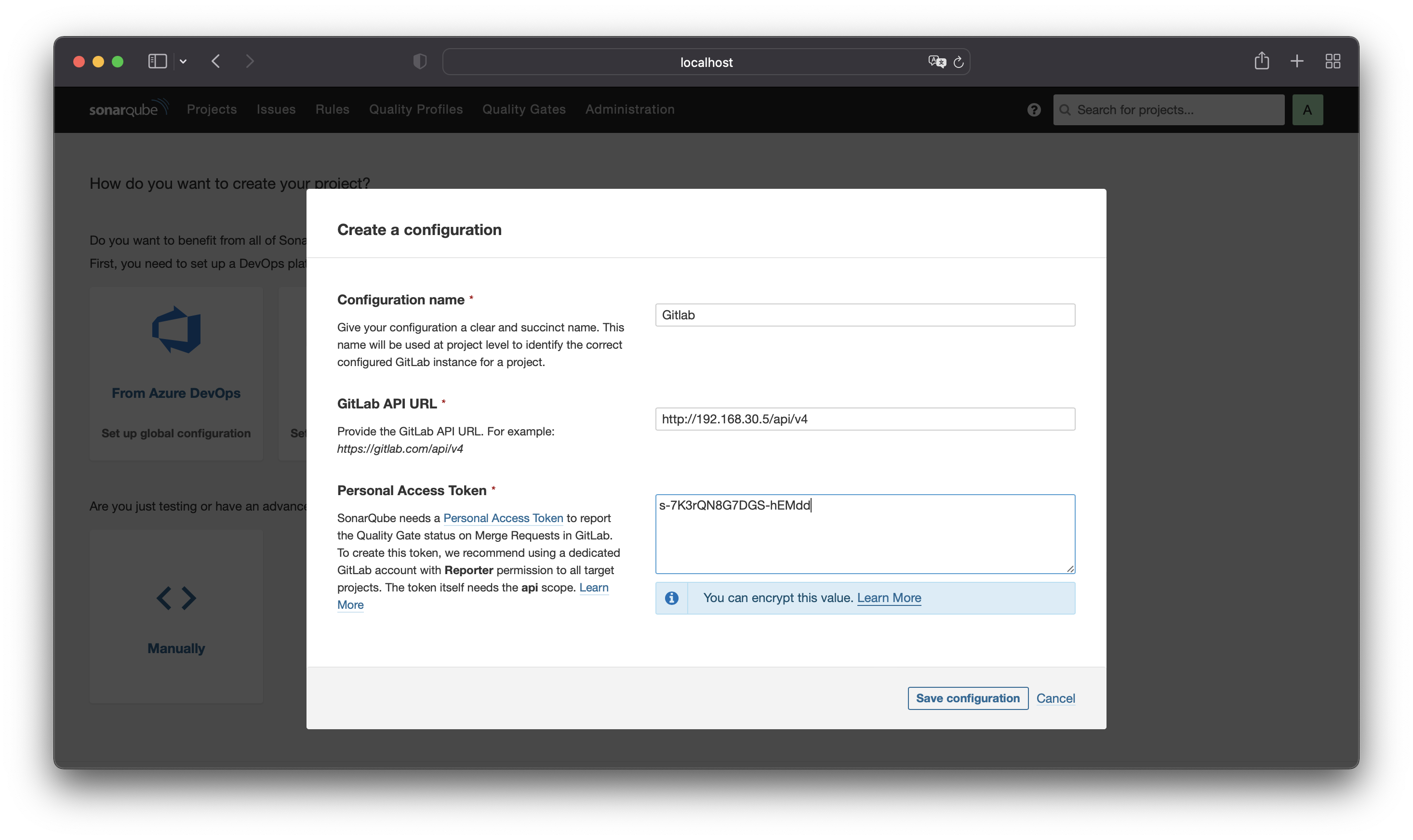

回到 SonarQube，输入配置名称 Configuration name，GitLab API URL和Personal Access Token (Gitlab 中创建的个人访问令牌)

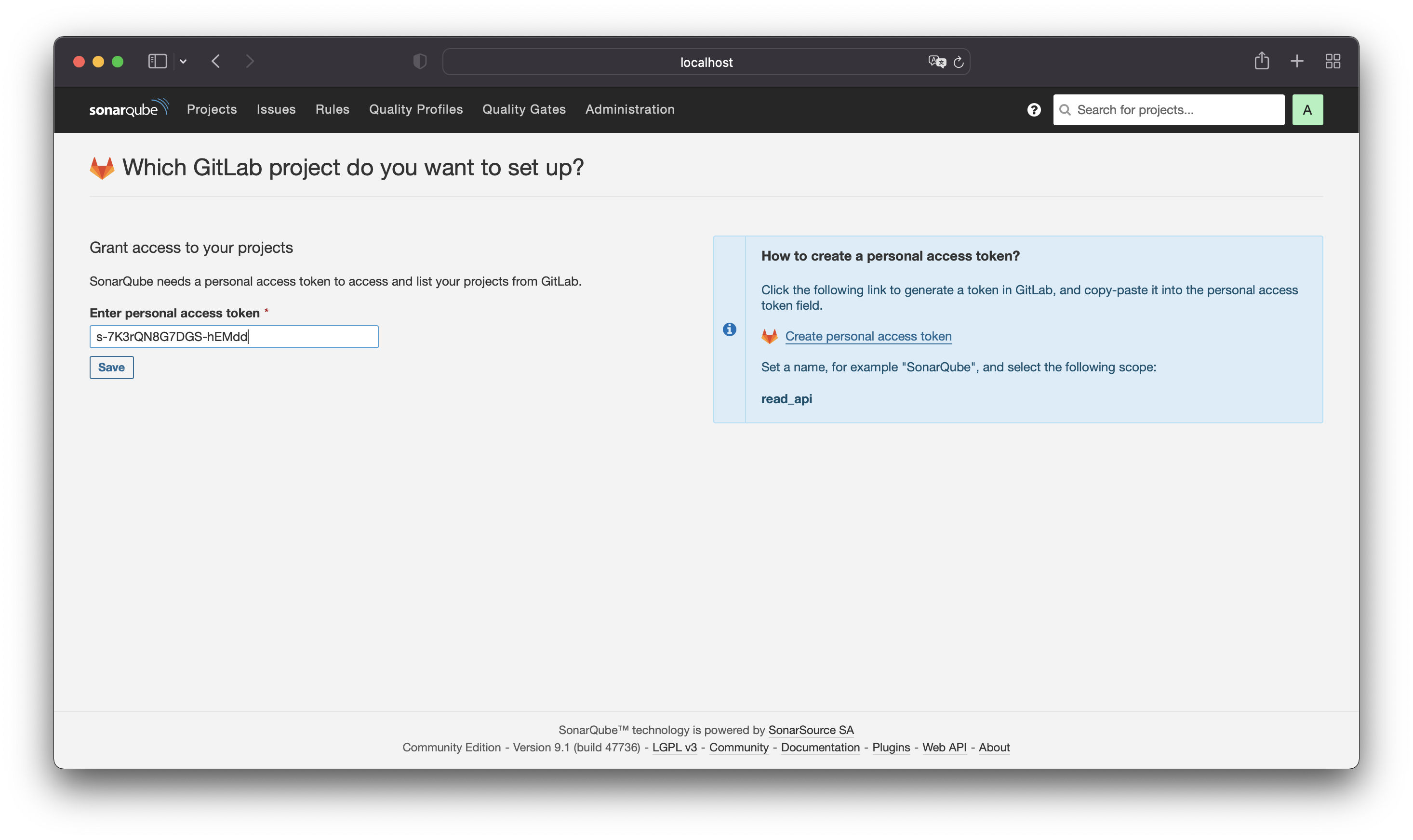

再次输入个人访问令牌

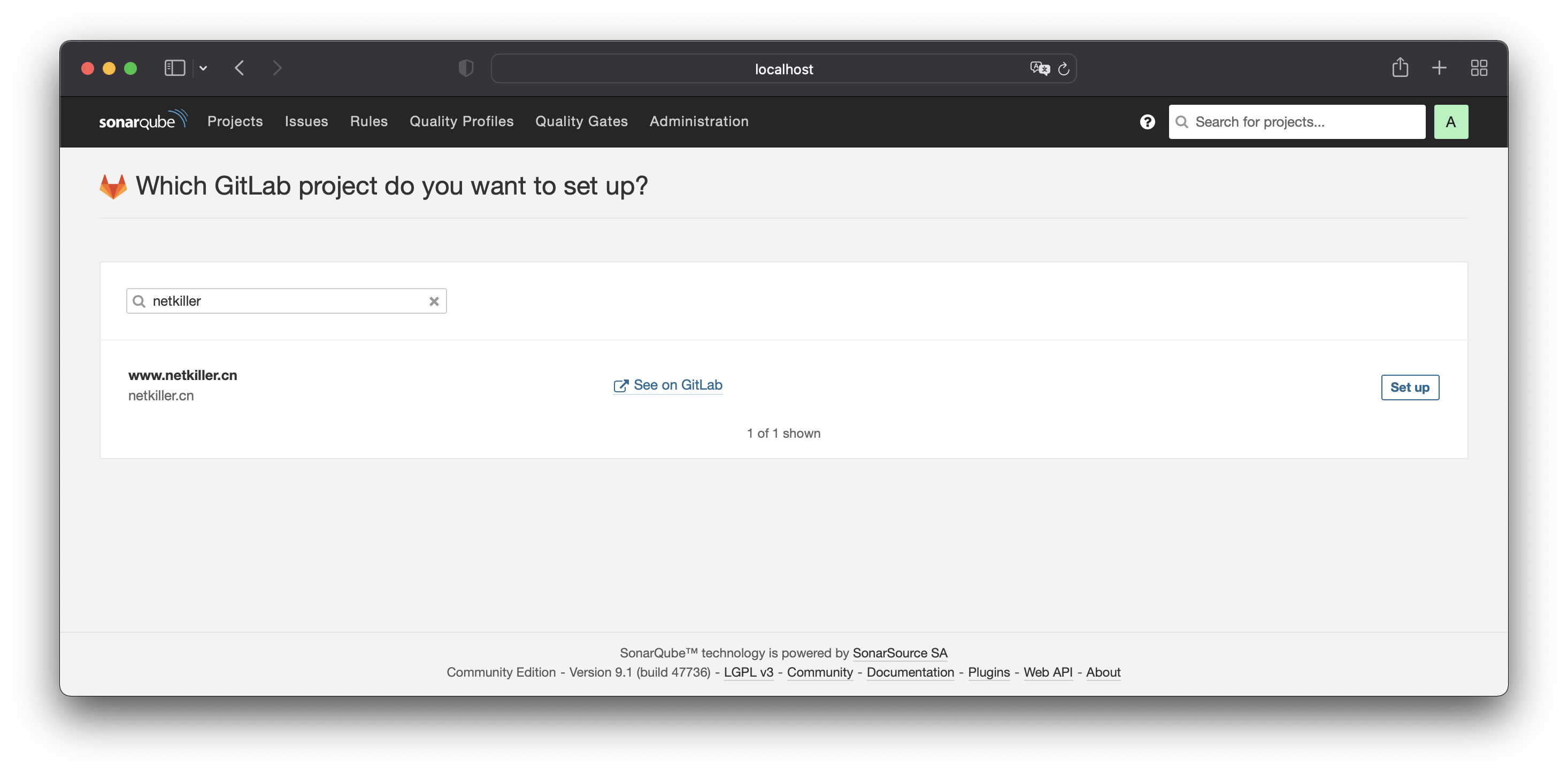

如果令牌正确，将会看到 Gitlab 那边的项目列表，如果项目很多，可以在查询框内输入关键字查找，选择你需要扫描的项目，点击“Set up” 按钮

选择 With GitLab CI

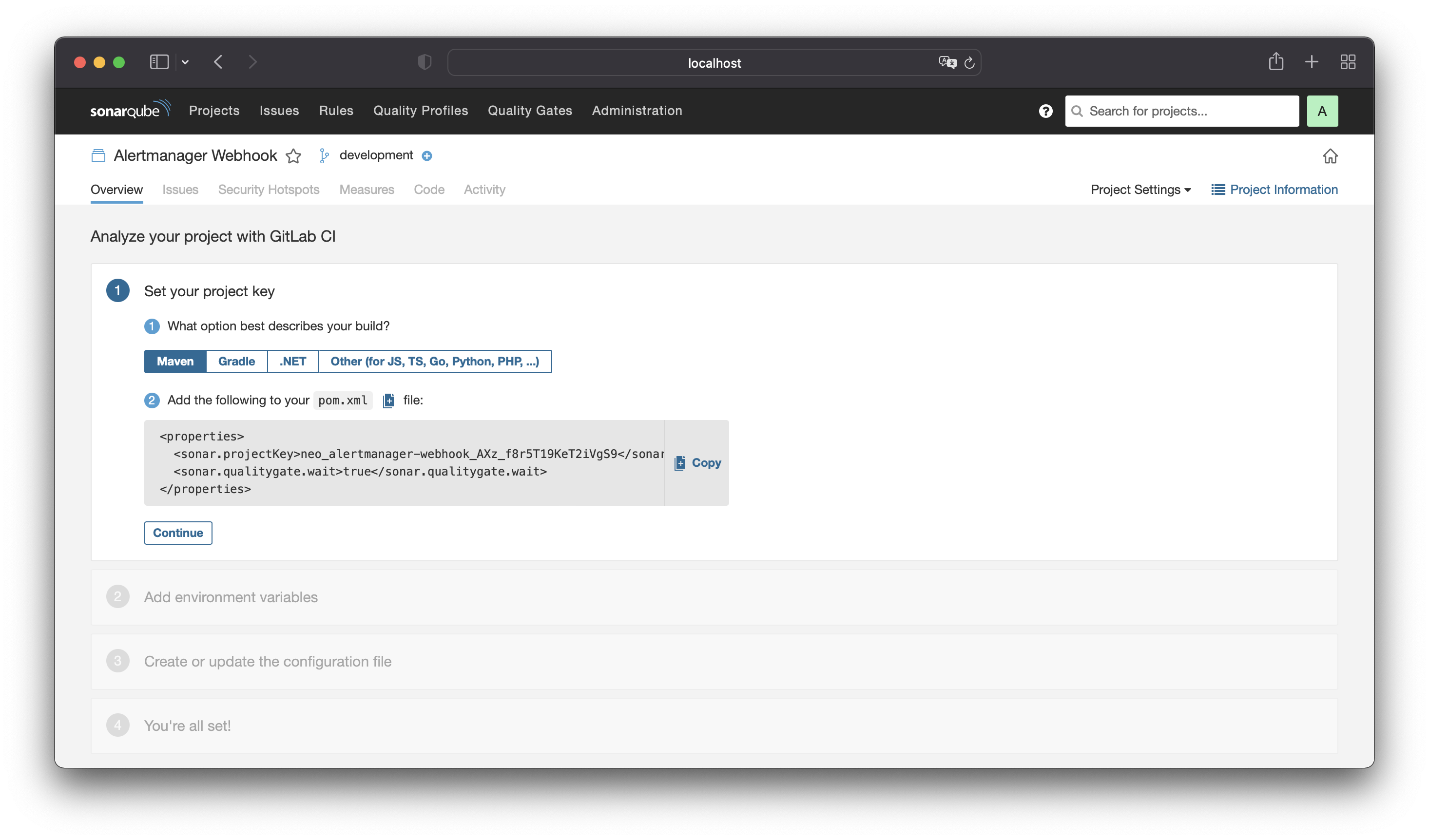

选择 Maven，复制配置项，添加到 Maven 的 pom.xml 中，配置类似下面


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.example</groupId>
	<artifactId>demo</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>demo</name>
	<description>Demo project for Spring Boot</description>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.1.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>


		<sonar.projectKey>api.netkiller.cn_AXz_oa0aOCAK34bOh_gg</sonar.projectKey>
		<sonar.qualitygate.wait>true</sonar.qualitygate.wait>

	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>

</project>

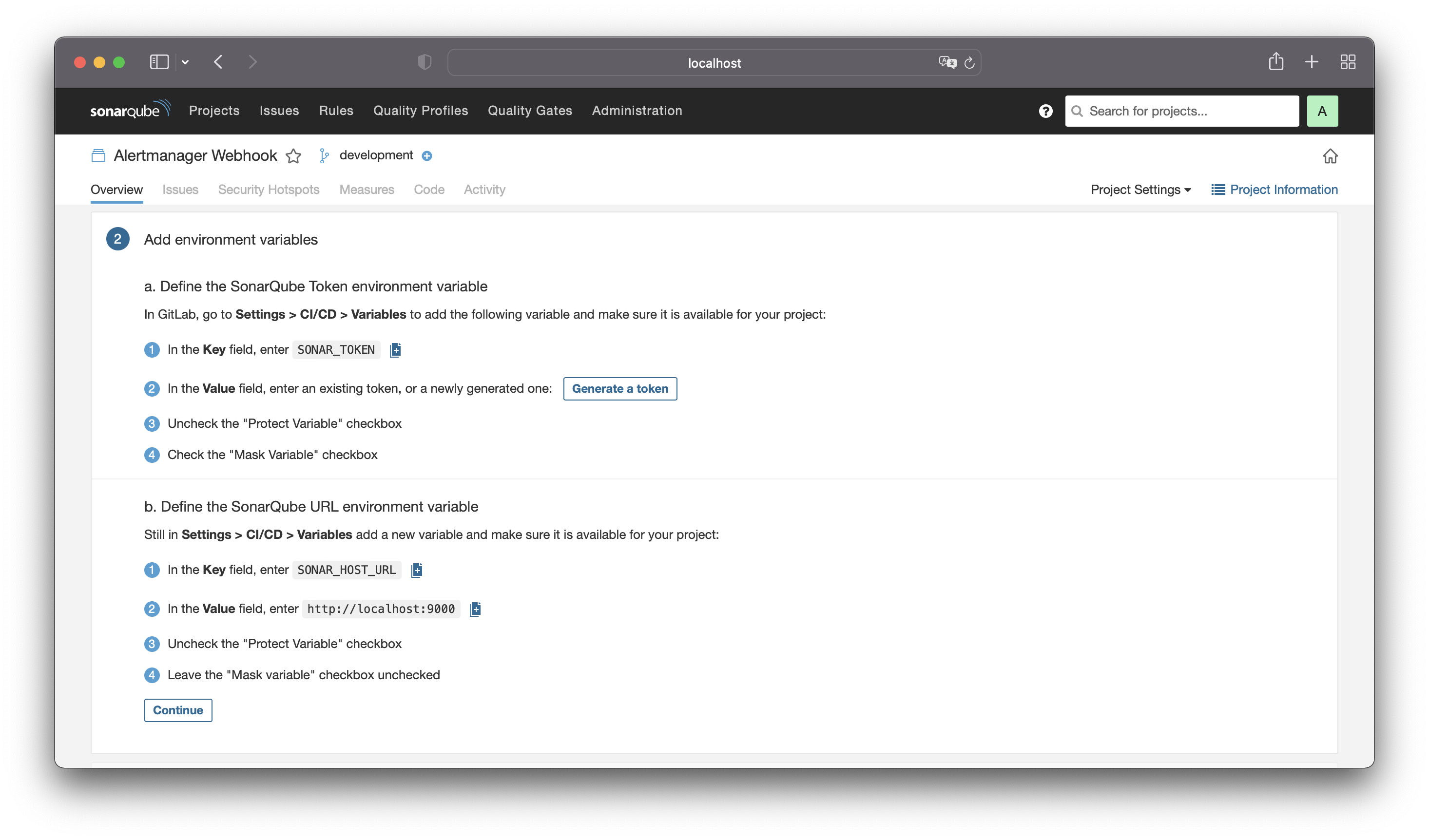

配置 Gitlab 环境变量，点击 “Generate a token” 按钮，生成 SONAR_TOKEN

点击 “Generate” 按钮

点击加号“➕”图标复制SONAR_TOKEN

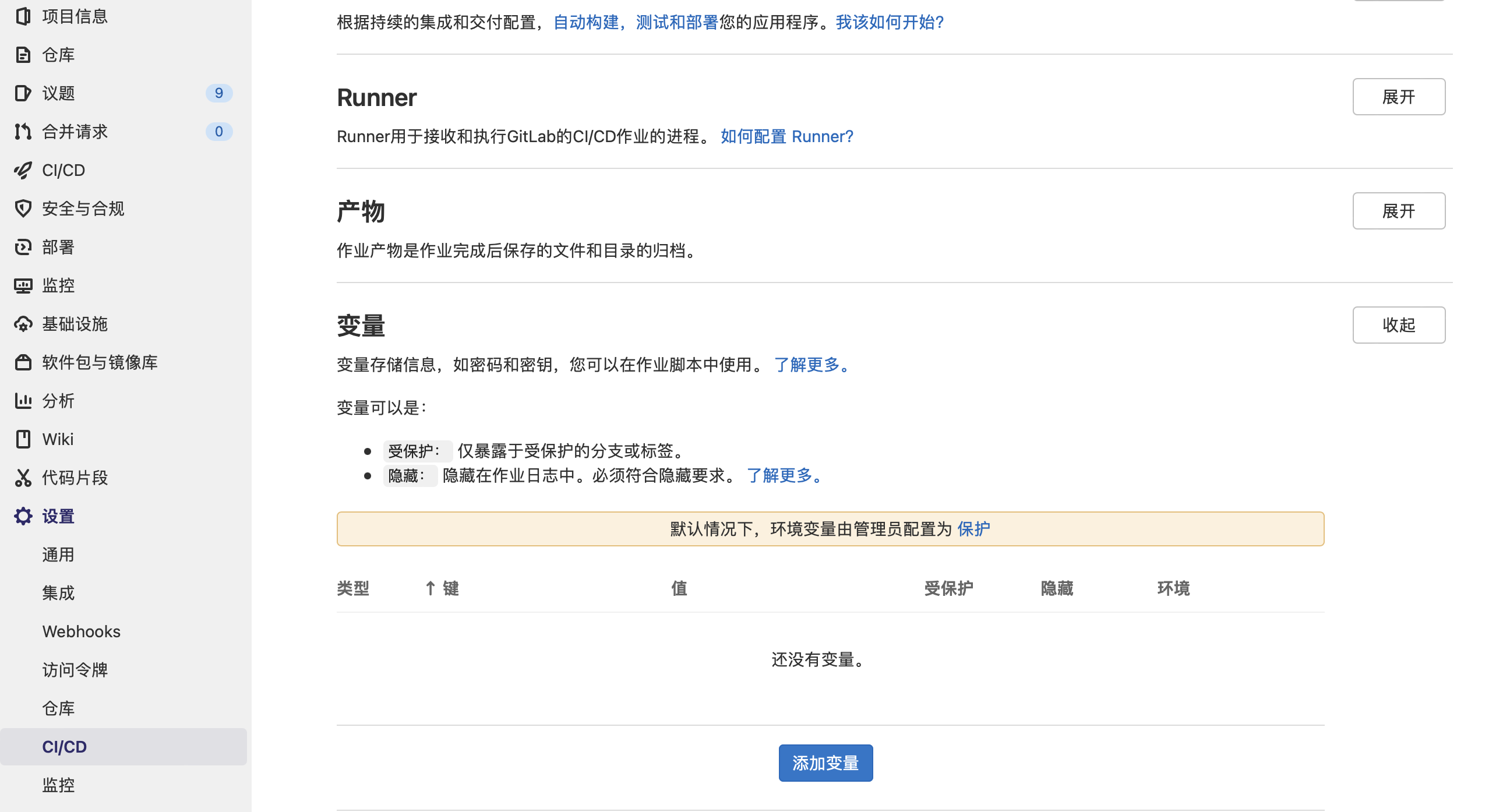

现在切换到 Gitlab 窗口，进入项目 - 设置 - CI/CD，展开 “变量”

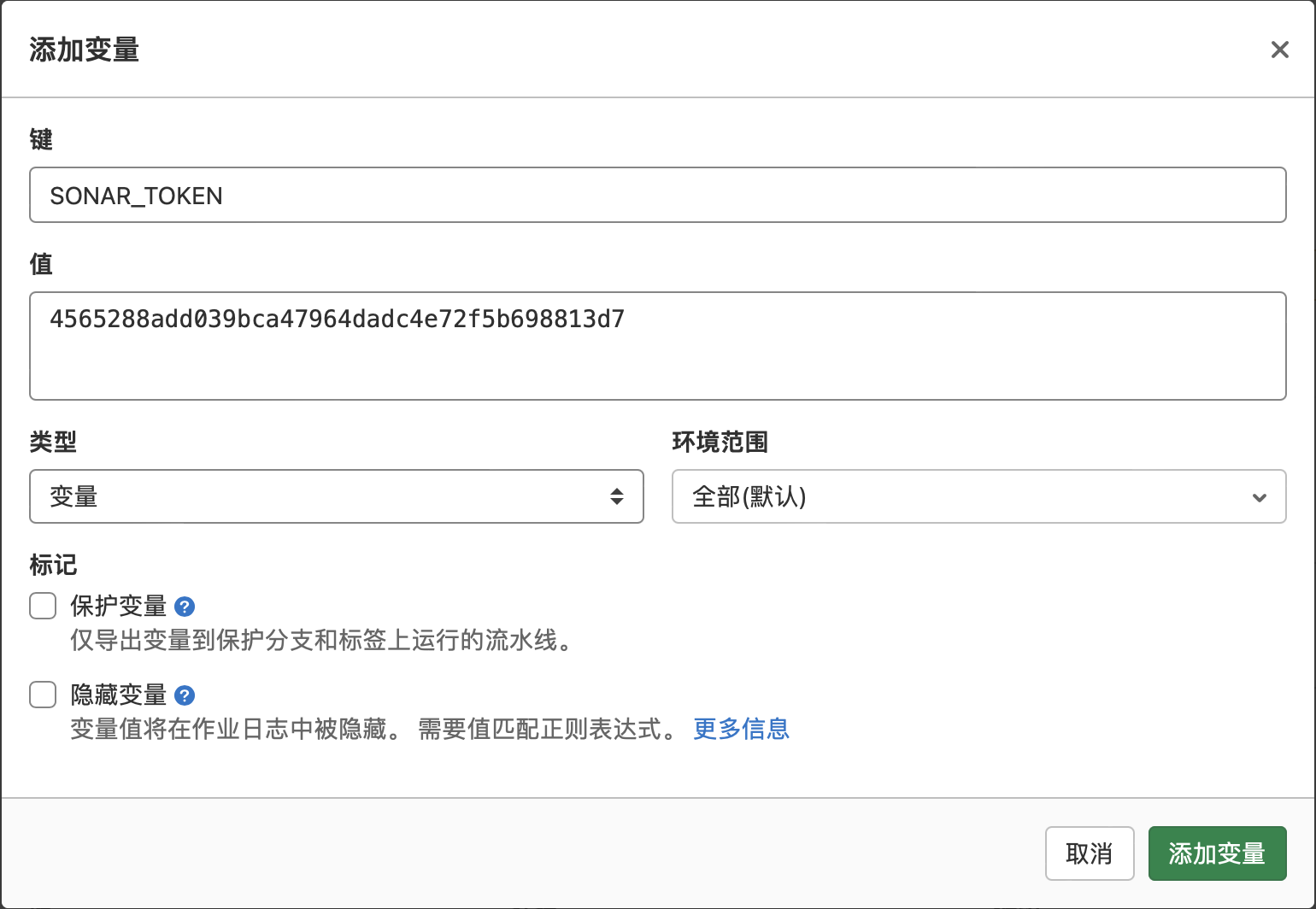

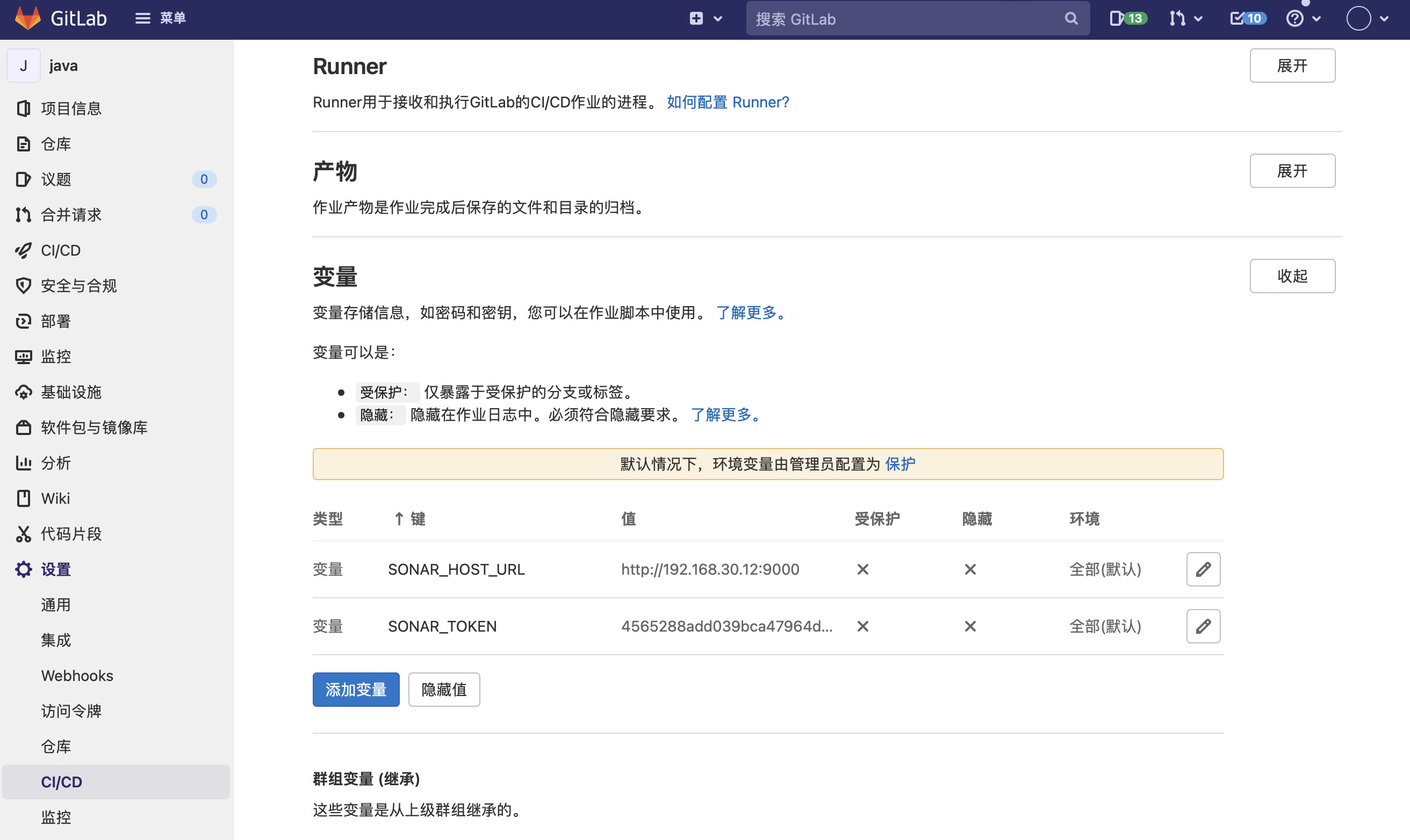

点击 “添加变量” 按钮，从 SonarQube 窗口复制并添加变量 SONAR_TOKEN 和 SONAR_HOST_URL

添加完成后，点击 “显示值” 按钮，检查变量是否正确

点击即 “Continue” 按钮

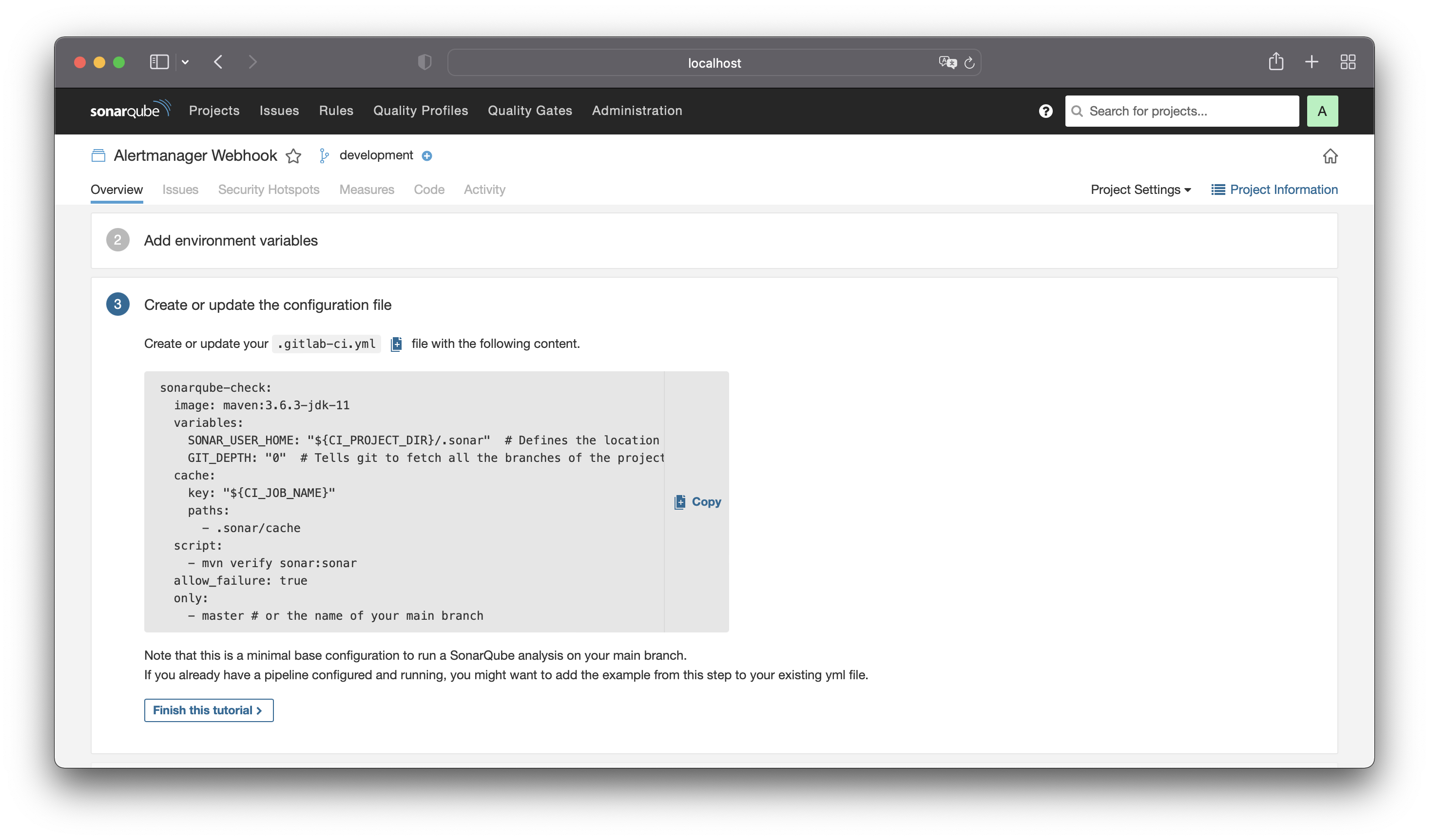

复制内容，并添加到 .gitlab-ci.yml 文件中

	提示
	注意：你的项目必须使用 Java 11 以上的版本，否则会出错，具体请看 FAQ 章节。

所有工作完成之后，点击 “Finish this tutorial” 按钮，SonarQube 窗口放在那里不用管它。

现在提交和推送代码，然后盯着流水线，如果不出错，SonarQube 就会生成下面这样的报告

13.2.4. SonarScanner


sonar-scanner \
  -Dsonar.projectKey=aabbcc \
  -Dsonar.sources=. \
  -Dsonar.host.url=http://localhost:9000 \
  -Dsonar.login=161e6f54add09c966518fa45d2860bad3ebf9774

13.2.4.1. Node.js

https://www.npmjs.com/package/sonarqube-scanner

创建 sonar.js 文件


const sonarqubeScanner = require('sonarqube-scanner');

sonarqubeScanner({
	serverUrl: 'http://192.168.30.20:9000',
	token: '880300b52817bae1fe26de51fb36b6da47c40edd',
	options : {
		'sonar.projectName': 'admin.netkiller.cn',
		'sonar.sources': '.',
		'sonar.inclusions' : 'src/**'
	},
}, () => {});

package.json


{
  "name": "netkiller",
  "version": "1.0.0",
  "description": "http://www.netkiller.cn",
  "author": "Neo Chen",
  "license": "MIT",
  "scripts": {
    "sonar": "node sonar.js"
  },
  "dependencies": {
    "sonarqube-scanner": "^2.8.1"
  }
}


[gitlab-runner@gitlab admin.netkiller.cn]$ npm run sonar

> netkiller@2.3.0 sonar /home/gitlab-runner/admin.netkiller.cn
> node sonar.js

[18:39:26] Starting analysis...
[18:39:26] Getting info from "package.json" file
[18:39:26] Checking if executable exists: /home/gitlab-runner/.sonar/native-sonar-scanner/sonar-scanner-4.5.0.2216-linux/bin/sonar-scanner
[18:39:26] Platform binaries for SonarScanner found. Using it.
INFO: Scanner configuration file: /home/gitlab-runner/.sonar/native-sonar-scanner/sonar-scanner-4.5.0.2216-linux/conf/sonar-scanner.properties
INFO: Project root configuration file: NONE
INFO: SonarScanner 4.5.0.2216
INFO: Java 11.0.3 AdoptOpenJDK (64-bit)
INFO: Linux 4.18.0-338.el8.x86_64 amd64
INFO: User cache: /home/gitlab-runner/.sonar/cache
INFO: Scanner configuration file: /home/gitlab-runner/.sonar/native-sonar-scanner/sonar-scanner-4.5.0.2216-linux/conf/sonar-scanner.properties
INFO: Project root configuration file: NONE
INFO: Analyzing on SonarQube server 9.1.0
INFO: Default locale: "en_US", source code encoding: "US-ASCII" (analysis is platform dependent)
INFO: Load global settings
INFO: Load global settings (done) | time=126ms
INFO: Server id: 243B8A4D-AXz-jVsGB3jmSUHEudyb
INFO: User cache: /home/gitlab-runner/.sonar/cache
INFO: Load/download plugins
INFO: Load plugins index
INFO: Load plugins index (done) | time=64ms
INFO: Load/download plugins (done) | time=120ms
INFO: Process project properties
INFO: Process project properties (done) | time=8ms
INFO: Execute project builders
INFO: Execute project builders (done) | time=1ms
INFO: Project key: netkiller
INFO: Base dir: /home/gitlab-runner/admin.netkiller.cn
INFO: Working dir: /home/gitlab-runner/admin.netkiller.cn/.scannerwork
INFO: Load project settings for component key: 'netkiller'
INFO: Load project settings for component key: 'netkiller' (done) | time=72ms
INFO: Load quality profiles
INFO: Load quality profiles (done) | time=216ms
INFO: Load active rules
INFO: Load active rules (done) | time=4596ms
INFO: Indexing files...
INFO: Project configuration:
INFO:   Included sources: src/**
INFO:   Excluded sources: node_modules/**, bower_components/**, jspm_packages/**, typings/**, lib-cov/**
INFO: Load project repositories
INFO: Load project repositories (done) | time=71ms
INFO: 460 files indexed
INFO: 889 files ignored because of inclusion/exclusion patterns
INFO: 0 files ignored because of scm ignore settings
INFO: Quality profile for css: Sonar way
INFO: Quality profile for js: Sonar way
INFO: ------------- Run sensors on module admin.netkiller.cn
INFO: Load metrics repository
INFO: Load metrics repository (done) | time=48ms
INFO: Sensor CSS Metrics [cssfamily]
INFO: Sensor CSS Metrics [cssfamily] (done) | time=109ms
INFO: Sensor CSS Rules [cssfamily]
INFO: 203 source files to be analyzed
INFO: 203/203 source files have been analyzed
INFO: Sensor CSS Rules [cssfamily] (done) | time=2819ms
INFO: Sensor JaCoCo XML Report Importer [jacoco]
INFO: 'sonar.coverage.jacoco.xmlReportPaths' is not defined. Using default locations: target/site/jacoco/jacoco.xml,target/site/jacoco-it/jacoco.xml,build/reports/jacoco/test/jacocoTestReport.xml
INFO: No report imported, no coverage information will be imported by JaCoCo XML Report Importer
INFO: Sensor JaCoCo XML Report Importer [jacoco] (done) | time=4ms
INFO: Sensor JavaScript analysis [javascript]
WARN: You are using Node.js version 10, which reached end-of-life. Support for this version will be dropped in future release, please upgrade Node.js to more recent version.
INFO: 304 source files to be analyzed
INFO: 30/304 files analyzed, current file: src/views/fcms/LoanIn/ScreenCustomers/index.vue
INFO: 87/304 files analyzed, current file: src/views/fcms/confingManage/warnConfig/index.vue
INFO: 153/304 files analyzed, current file: src/views/tdms/components/BusinessRisk.vue
INFO: 211/304 files analyzed, current file: src/views/fcms/LoanIn/LoanModel/modal.vue
INFO: 275/304 files analyzed, current file: src/views/system/post/index.vue
INFO: 304/304 source files have been analyzed
INFO: Sensor JavaScript analysis [javascript] (done) | time=57807ms
INFO: Sensor TypeScript analysis [javascript]
INFO: No input files found for analysis
INFO: Sensor TypeScript analysis [javascript] (done) | time=7ms
INFO: Sensor C# Project Type Information [csharp]
INFO: Sensor C# Project Type Information [csharp] (done) | time=1ms
INFO: Sensor C# Analysis Log [csharp]
INFO: Sensor C# Analysis Log [csharp] (done) | time=9ms
INFO: Sensor C# Properties [csharp]
INFO: Sensor C# Properties [csharp] (done) | time=0ms
INFO: Sensor JavaXmlSensor [java]
INFO: Sensor JavaXmlSensor [java] (done) | time=2ms
INFO: Sensor HTML [web]
INFO: Sensor HTML [web] (done) | time=479ms
INFO: Sensor VB.NET Project Type Information [vbnet]
INFO: Sensor VB.NET Project Type Information [vbnet] (done) | time=3ms
INFO: Sensor VB.NET Analysis Log [vbnet]
INFO: Sensor VB.NET Analysis Log [vbnet] (done) | time=13ms
INFO: Sensor VB.NET Properties [vbnet]
INFO: Sensor VB.NET Properties [vbnet] (done) | time=0ms
INFO: ------------- Run sensors on project
INFO: Sensor Zero Coverage Sensor
INFO: Sensor Zero Coverage Sensor (done) | time=68ms
INFO: CPD Executor 16 files had no CPD blocks
INFO: CPD Executor Calculating CPD for 288 files
INFO: CPD Executor CPD calculation finished (done) | time=269ms
INFO: Analysis report generated in 127ms, dir size=4.0 MB
INFO: Analysis report compressed in 400ms, zip size=1.7 MB
INFO: Analysis report uploaded in 792ms
INFO: ANALYSIS SUCCESSFUL, you can browse http://192.168.30.20:9000/dashboard?id=netkiller
INFO: Note that you will be able to access the updated dashboard once the server has processed the submitted analysis report
INFO: More about the report processing at http://192.168.30.20:9000/api/ce/task?id=AX0ESRKaT19KeT2iVgTn
INFO: Analysis total time: 1:20.455 s
INFO: ------------------------------------------------------------------------
INFO: EXECUTION SUCCESS
INFO: ------------------------------------------------------------------------
INFO: Total time: 1:21.380s
INFO: Final Memory: 13M/50M
INFO: ------------------------------------------------------------------------

上一页	上一级	下一页
第 13 章 SonarQube	起始页	13.3. FAQ
