第 3 章 Rancher - Multi-Cluster Kubernetes Management

Rancher is open-source software for delivering Kubernetes-as-a-Service.

目录

3.1. 安装 Rancher
3.1.1. Rancher Server
3.1.2. Rancher Kubernetes Engine (RKE) 2
3.1.3. Rancher Kubernetes Engine (RKE) 1
3.1.4. Rancher CLI
3.1.5. rancher-compose
3.2. 快速入门
3.2.1. API
3.3. Rancher Compose
3.3.1. Rancher Compose 命令
3.3.2. 操作演示
3.4. Rancher CLI
3.4.1. 登陆 Rancher
3.4.2. 查看集群
3.4.3. 查看节点
3.4.4. catalog
3.4.5. 查看设置
3.4.6. rancher kubectl
3.5. K3s
3.5.1. AutoK3s
3.5.2. 安装 K3s(Docker 模式)
3.5.3. 安装 K3s(VM 模式)
3.5.4. k3d
3.5.5. TLS 证书
3.5.6. 创建 Token
3.5.7. FAQ
3.6. Rancher Demo
3.6.1. Rancher 部署 Nginx
3.6.2. local-path-provisioner
3.7. Longhorn
3.7.1. 安装 Longhorn
3.7.2. 选择磁盘类型
3.7.3. 节点选择
3.7.4. FAQ
3.8. FAQ
3.8.1. 调试 Rancher 查看日志
3.8.2. [network] Host [rancher.netkiller.cn] is not able to connect to the following ports: [rancher.netkiller.cn:2379]. Please check network policies and firewall rules
3.8.3. cgroups v2

3.1. 安装 Rancher

3.1.1. Rancher Server

3.1.1.1. Docker 安装

如果只是学习,可以安装最新版


docker run -d --privileged --restart=unless-stopped -p 80:80 -p 443:443 --name=rancher rancher/rancher:latest



稳定版


docker run -d --privileged --restart=unless-stopped -p 80:80 -p 443:443 -v /var/lib/rancher/:/var/lib/rancher/ --name=rancher rancher/rancher:stable



审计日志


docker run -d --restart=unless-stopped -p 80:80 -p 443:443 -v /var/lib/rancher/:/var/lib/rancher/ -v /var/log/auditlog:/var/log/auditlog --name=rancher rancher/rancher:stable


防火墙配置

防火墙放行 etcd


iptables -I INPUT -s 172.16.0.0/0 -p tcp --dport 2379 -j ACCEPT
iptables -I INPUT -s 172.16.0.0/0 -p tcp --dport 2380 -j ACCEPT



systemctl restart firewalld
systemctl enable firewalld

iptables -A INPUT -p tcp --dport 6443 -j ACCEPT
iptables -A INPUT -p tcp --dport 2379 -j ACCEPT
iptables -A INPUT -p tcp --dport 2380 -j ACCEPT
iptables -A INPUT -p tcp --dport 10250 -j ACCEPT

firewall-cmd --zone=public --add-port=6443/tcp --permanent
firewall-cmd --zone=public --add-port=2379/tcp --permanent
firewall-cmd --zone=public --add-port=2380/tcp --permanent
firewall-cmd --zone=public --add-port=10250/tcp --permanent
firewall-cmd --reload



从阿里云安装


docker run -itd -p 80:80 -p 443:443 \
    --restart=unless-stopped \
    -e CATTLE_AGENT_IMAGE="registry.cn-hangzhou.aliyuncs.com/rancher/rancher-agent:v2.4.2" \
    registry.cn-hangzhou.aliyuncs.com/rancher/rancher



仅用 unsupported-storage-drivers


[root@localhost ~]# docker run -d --privileged --restart=unless-stopped -p 8080:80 -p 8443:443 --name=rancher --env unsupported-storage-drivers=true rancher/rancher:stable
[root@localhost ~]# docker run -d --privileged --restart=unless-stopped -p 8080:80 -p 8443:443 --name=rancher rancher/rancher:stable  --features=unsupported-storage-drivers=true


Helm 安装 Rancher

安装 k3s


hostnamectl set-hostname master
curl -sfL https://rancher-mirror.oss-cn-beijing.aliyuncs.com/k3s/k3s-install.sh | INSTALL_K3S_MIRROR=cn sh -



安装最新版


helm repo add rancher-latest https://releases.rancher.com/server-charts/latest



安装用于生产环境的稳定版


helm repo add rancher-stable https://releases.rancher.com/server-charts/stable



创建命名空间


kubectl create namespace cattle-system



安装 cert-manager


kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.7.1/cert-manager.crds.yaml

helm repo add jetstack https://charts.jetstack.io

helm repo update

helm install cert-manager jetstack/cert-manager \
  --namespace cert-manager \
  --create-namespace \
  --version v1.7.1



helm install rancher rancher-stable/rancher \
  --create-namespace \
  --namespace cattle-system \
  --set hostname=rancher.netkiller.cn \
  --set ingress.tls.source=letsEncrypt \
  --set bootstrapPassword=admin \
  --set replicas=1 \
  --set systemDefaultRegistry=registry.cn-hangzhou.aliyuncs.com


Mac 安装

Neo-iMac:~ neo$ brew install rancher-cli

Neo-iMac:~ neo$ rancher -v
rancher version 2.4.13


进入容器

$ docker exec -it rancher /bin/bash



3.1.1.2. Web UI

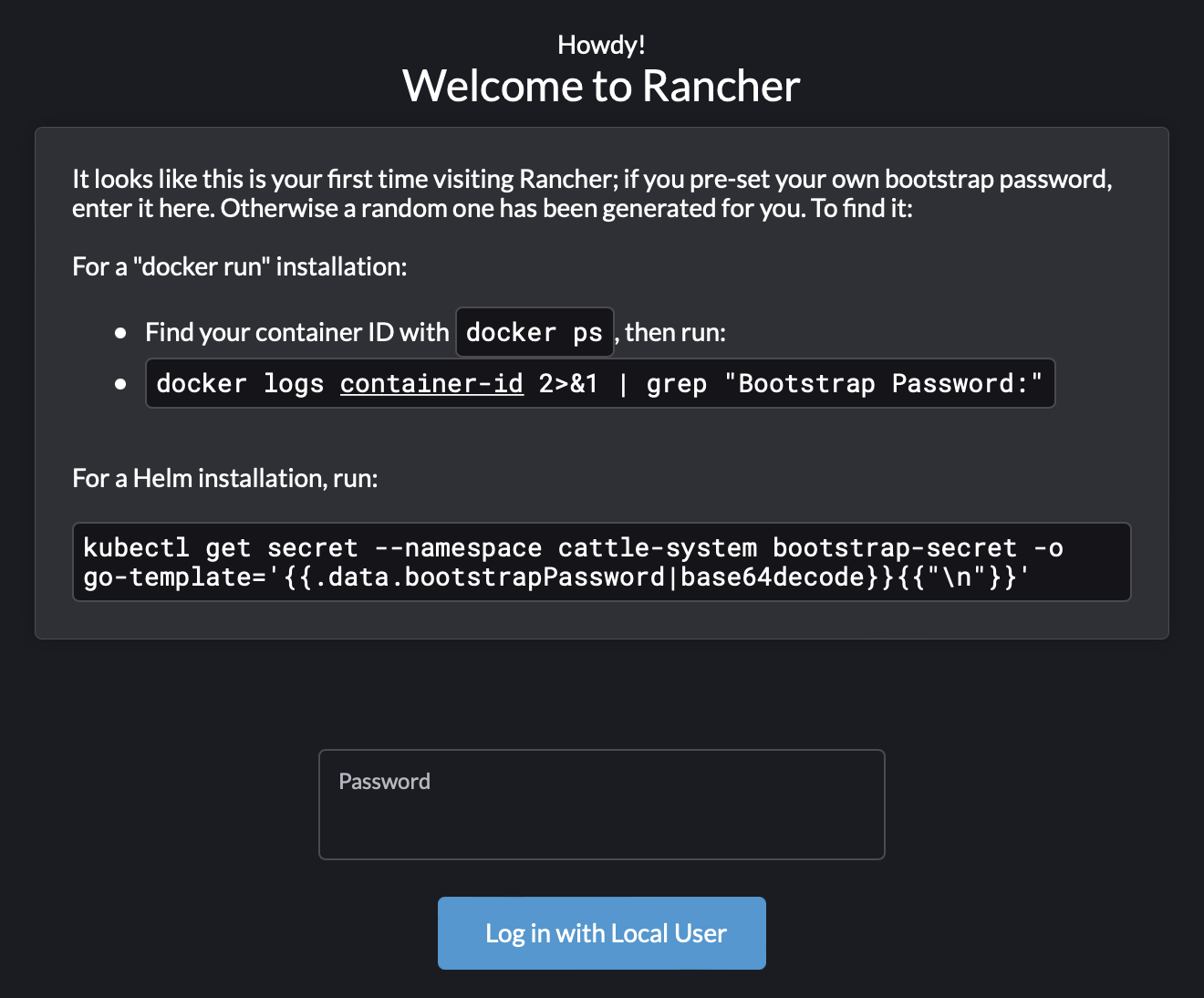

安装完之后运行下面命令查看密码


[root@localhost ~]# docker logs rancher 2>&1 | grep "Bootstrap Password:"
2021/11/26 10:27:14 [INFO] Bootstrap Password: wkz68vmmx4gqfwxwzq4vxrzl5zgjqxlmxkfwkdltmpkxl5clqc9dw9



浏览器输入 https://your-ip-address 即可进入WebUI

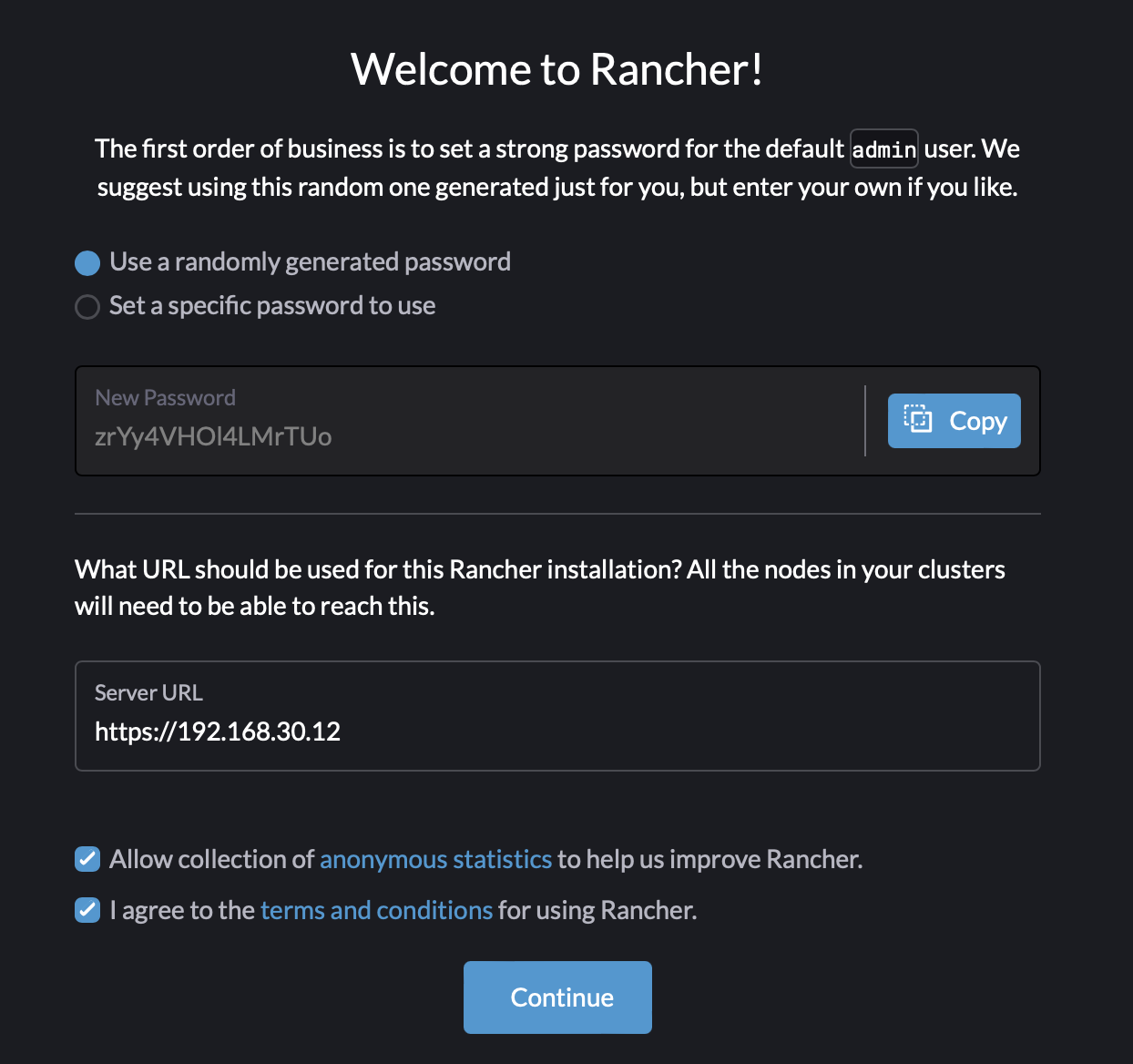

设置密码

3.1.1.3. SSL 证书

第一种方式


docker run -d -p 8443:443 -v /srv/rancher/cacerts.pem:/etc/rancher/ssl/cacerts.pem -v /srv/rancher/key.pem:/etc/rancher/ssl/key.pem -v /srv/rancher/cert.crt:/etc/rancher/ssl/cert.pem rancher/rancher:latest



第二种方式


docker run -d --name rancher-server rancher/rancher:latest
docker run -d --name=nginx --restart=unless-stopped -p 80:80 -p 443:443 -v /your_certificates:/your_certificates -v /etc/nginx.conf:/etc/nginx/conf.d/default.conf --link=rancher-server nginx:1.11



3.1.2. Rancher Kubernetes Engine (RKE) 2

3.1.2.1. Server


curl -sfL https://get.rke2.io | sh -




systemctl enable rke2-server.service
systemctl start rke2-server.service



3.1.2.2. Linux Agent(Worker)


curl -sfL https://get.rke2.io | INSTALL_RKE2_TYPE="agent" sh -



systemctl enable rke2-agent.service



配置 rke2-agent 服务


mkdir -p /etc/rancher/rke2/
vim /etc/rancher/rke2/config.yaml

server: https://<server>:9345
token: <token from server node>




systemctl start rke2-agent.service



3.1.3. Rancher Kubernetes Engine (RKE) 1

https://github.com/rancher/rke/releases

https://rancher.com/an-introduction-to-rke/

3.1.3.1. 安装 RKE

v1.3.2

cd /usr/local/src/
wget https://github.com/rancher/rke/releases/download/v1.3.2/rke_linux-amd64
mkdir -p /srv/rancher/bin
install rke_linux-amd64 /srv/rancher/bin/


v0.1.17

[root@localhost ~]# wget https://github.com/rancher/rke/releases/download/v0.1.17/rke
[root@localhost ~]# chmod +x rke
[root@localhost ~]# ./rke --version
rke version v0.1.17



3.1.3.2. 配置 RKE


[root@localhost ~]# /srv/rancher/bin/rke_linux-amd64 config
[+] Cluster Level SSH Private Key Path [~/.ssh/id_rsa]:



3.1.3.3. 启动 RKE


[root@localhost ~]# /srv/rancher/bin/rke_linux-amd64 up



3.1.4. Rancher CLI

3.1.4.1. 二进制安装

http://mirror.cnrancher.com


cd /usr/local/src
wget http://rancher-mirror.cnrancher.com/cli/v2.4.13/rancher-linux-amd64-v2.4.13.tar.xz
tar Jxvf rancher-linux-amd64-v2.4.13.tar.xz
install rancher-v2.4.13/rancher /usr/local/bin/




[root@localhost src]# rancher
Rancher CLI, managing containers one UTF-8 character at a time

Usage: rancher [OPTIONS] COMMAND [arg...]

Version: v2.4.13

Options:
  --debug                   Debug logging
  --config value, -c value  Path to rancher config (default: "/root/.rancher") [$RANCHER_CONFIG_DIR]
  --help, -h                show help
  --version, -v             print the version

Commands:
  apps, [app]                                       Operations with apps. Uses helm. Flags prepended with "helm" can also be accurately described by helm documentation.
  catalog                                           Operations with catalogs
  clusters, [cluster]                               Operations on clusters
  context                                           Operations for the context
  globaldns                                         Operations on global DNS providers and entries
  inspect                                           View details of resources
  kubectl                                           Run kubectl commands
  login, [l]                                        Login to a Rancher server
  multiclusterapps, [multiclusterapp mcapps mcapp]  Operations with multi-cluster apps
  namespaces, [namespace]                           Operations on namespaces
  nodes, [node]                                     Operations on nodes
  projects, [project]                               Operations on projects
  ps                                                Show workloads in a project
  server                                            Operations for the server
  settings, [setting]                               Show settings for the current server
  ssh                                               SSH into a node
  up                                                apply compose config
  wait                                              Wait for resources cluster, app, project, multiClusterApp
  token                                             Authenticate and generate new kubeconfig token
  help, [h]                                         Shows a list of commands or help for one command

Run 'rancher COMMAND --help' for more information on a command.




3.1.5. rancher-compose

Rancher Compose是一个多主机版本的Docker Compose

下载地址: https://github.com/rancher/rancher-compose/releases

3.1.5.1. v0.12.5


cd /tmp

wget https://github.com/rancher/rancher-compose/releases/download/v0.12.5/rancher-compose-linux-amd64-v0.12.5.tar.xz
tar Jxvf rancher-compose-linux-amd64-v0.12.5.tar.xz
mv ./rancher-compose-v0.12.5/rancher-compose /usr/local/bin/

cd
