11.6. Pipeline 流水线

11.6.1. cache

Java 缓存设置


image: maven:3.5.0-jdk-8

variables:
  MAVEN_OPTS: "-Dmaven.repo.local=.m2/repository"

cache:
  paths:
    - .m2/repository/
    - target/

stages:
  - build
  - test
  - package

build:
  stage: build
  script: mvn compile

unittest:
  stage: test
  script: mvn test


package:
  stage: package
  script: mvn package
  artifacts:
    paths:
      - target/java-project-0.0.1-SNAPSHOT.jar

Node 缓存设置


cache:
  paths:
    - node_modules
    - dist

# variables:
  # GIT_STRATEGY: clone
  # GIT_STRATEGY: fetch
  # GIT_CHECKOUT: "false"

stages:
  - build
  - test
  - deploy

build-job:
  stage: build
  only:
    - master
    - testing
    - development
  script:
    - echo "Compiling the code..."
    # - cnpm cache verify
    - cnpm install
    - cnpm run build:stage
    # - cnpm run build:prod
    - echo "Compile complete."

test-job:
  stage: test
  variables:
    GIT_STRATEGY: none
  only:
    - master
    - testing
    - development
  script:
    - echo "Running unit tests..."
    - sed -i 's#192.168.20.180#192.168.30.4#g' dist/umi.*.js
    - ls dist/*
    # - rm -rf *.tar.gz
    # - tar zcvf www.netkiller.cn.$(date -u +%Y-%m-%d.%H%M%S).tar.gz dist
    # - ls *.tar.gz
    - echo "Test complete."
  artifacts:
    name: "$CI_PROJECT_NAME"
    paths:
      - dist/*
      # - ./*.tar.gz


deploy-test-job:
  stage: deploy
  variables:
    GIT_STRATEGY: none
  only:
    - testing
    - development
  script:
    - echo "Deploying application..."
    - rsync -auzv dist/* www@192.168.30.10:/opt/www.netkiller.cn/
    - echo "Application successfully deployed."

deploy-prod-job:
  stage: deploy
  only:
    - master
  script:
    - echo "Deploying application..."
    - rsync -auzv --delete dist/* www@192.168.30.10:/opt/www.netkiller.cn/
    - echo "Application successfully deployed."

11.6.1.1. Cache Key

缓存在所有流水线间是共享的，如果同时有两个JOB在跑，缓存就可能受到影响，这时可以使用 cache key 解决。


对每个分支的每个 job 使用不同的 cache :

cache:
  key: ${CI_COMMIT_REF_SLUG}

每个分支的每个 job 使用不同的 stage：
cache:
  key: "$CI_JOB_NAME-$CI_COMMIT_REF_SLUG"

分支之间需要共享 cache，但是 pipeline 中的 job 之间的 cache 是相互独立的：
cache:
  key: "$CI_JOB_STAGE-$CI_COMMIT_REF_SLUG"

缓存只在相同 CI_PIPELINE_ID 中共享
cache:
  key: ${CI_PIPELINE_ID}

11.6.1.2. 禁用 Cache

当定义了全局 cahce 后，想在 job 中禁用 Cache


cache:
  paths:
    - node_modules
    - dist
job:
  cache: {}

11.6.1.3. 定义多个缓存


test-job:
  stage: build
  cache:
    - key:
        files:
          - Gemfile.lock
      paths:
        - vendor/ruby
    - key:
        files:
          - yarn.lock
      paths:
        - .yarn-cache/
  script:
    - bundle install --path=vendor
    - yarn install --cache-folder .yarn-cache
    - echo Run tests...

11.6.2. stages

定义 stages


stages:
  - build
  - test
  - deploy

11.6.2.1. 依赖关系

dependencies 可以设置 job 的依赖关系


image: mileschou/php-testing-base:7.0

stages:
  - build
  - test
  - deploy

build_job:
  stage: build
  script:
    - composer install
  cache:
    untracked: true
  artifacts:
    paths:
      - vendor/

test_job:
  stage: test
  script:
    - php vendor/bin/codecept run
  dependencies:
    - build_job

deploy_job:
  stage: deploy
  script:
    - echo Deploy OK
  only:
    - release
  when: manual

11.6.2.2. 禁用 stage

出于某种原因，我们想禁用某些 stage。可以在 job 前加一个 “.” 禁用它。


.deploy:
  image: maven:3.6-jdk-11
  tags:
    - shell
  script:
    - 'mvn deploy -s ci_settings.xml'
  # only:
    # - main

11.6.3. variables


job1:
  variables:
    FOLDERS: src test docs
  script:
    - |
      for FOLDER in $FOLDERS
        do
          echo "The path is root/${FOLDER}"
        done

11.6.3.1. 列出所有环境变量

使用 export 列出所有环境变量


build-job:
  image: maven:3.8.2-openjdk-17
  stage: build
  # variables:
    # accessKeyId: 123456
    # accessSecret: 654321
  tags:
    - docker
  before_script:
    - export
    - cat src/main/resources/application.properties
  script:
    - mvn clean package -Dmaven.test.skip=true
    - ls target/*.jar
  artifacts:
    name: "$CI_PROJECT_NAME"
    paths:
      - target/*.jar



$ export
21declare -x CI="true"
22declare -x CI_API_V4_URL="http://192.168.30.5/api/v4"
23declare -x CI_BUILDS_DIR="/builds"
24declare -x CI_BUILD_BEFORE_SHA="213825d0cfd133aadb2648b0c1236f834e98972b"
25declare -x CI_BUILD_ID="4705"
26declare -x CI_BUILD_NAME="build-job"
27declare -x CI_BUILD_REF="61fe2acb56474b4b2ffb289de2c7d93afe514354"
28declare -x CI_BUILD_REF_NAME="development"
29declare -x CI_BUILD_REF_SLUG="development"
30declare -x CI_BUILD_STAGE="build"
31declare -x CI_BUILD_TOKEN="[MASKED]"
32declare -x CI_COMMIT_AUTHOR="neo <neo@t.com>"
33declare -x CI_COMMIT_BEFORE_SHA="213825d0cfd133aadb2648b0c1236f834e98972b"
34declare -x CI_COMMIT_BRANCH="development"
35declare -x CI_COMMIT_DESCRIPTION=""
36declare -x CI_COMMIT_MESSAGE="更新.gitlab-ci.yml文件"
37declare -x CI_COMMIT_REF_NAME="development"
38declare -x CI_COMMIT_REF_PROTECTED="true"
39declare -x CI_COMMIT_REF_SLUG="development"
40declare -x CI_COMMIT_SHA="61fe2acb56474b4b2ffb289de2c7d93afe514354"
41declare -x CI_COMMIT_SHORT_SHA="61fe2acb"
42declare -x CI_COMMIT_TIMESTAMP="2021-09-18T07:00:58+00:00"
43declare -x CI_COMMIT_TITLE="更新.gitlab-ci.yml文件"
44declare -x CI_CONCURRENT_ID="0"
45declare -x CI_CONCURRENT_PROJECT_ID="0"
46declare -x CI_CONFIG_PATH=".gitlab-ci.yml"
47declare -x CI_DEFAULT_BRANCH="development"
48declare -x CI_DEPENDENCY_PROXY_GROUP_IMAGE_PREFIX="192.168.30.5:80/neo/dependency_proxy/containers"
49declare -x CI_DEPENDENCY_PROXY_PASSWORD="[MASKED]"
50declare -x CI_DEPENDENCY_PROXY_SERVER="192.168.30.5:80"
51declare -x CI_DEPENDENCY_PROXY_USER="gitlab-ci-token"
52declare -x CI_DISPOSABLE_ENVIRONMENT="true"
53declare -x CI_JOB_ID="4705"
54declare -x CI_JOB_IMAGE="maven:3.8.2-openjdk-17"
55declare -x CI_JOB_JWT="[MASKED]"
56declare -x CI_JOB_NAME="build-job"
57declare -x CI_JOB_STAGE="build"
58declare -x CI_JOB_STARTED_AT="2021-09-18T07:01:07Z"
59declare -x CI_JOB_STATUS="running"
60declare -x CI_JOB_TOKEN="[MASKED]"
61declare -x CI_JOB_URL="http://192.168.30.5/neo/alertmanager-webhook/-/jobs/4705"
62declare -x CI_NODE_TOTAL="1"
63declare -x CI_PAGES_DOMAIN="example.com"
64declare -x CI_PAGES_URL="http://neo.example.com/alertmanager-webhook"
65declare -x CI_PIPELINE_CREATED_AT="2021-09-18T07:00:58Z"
66declare -x CI_PIPELINE_ID="1866"
67declare -x CI_PIPELINE_IID="100"
68declare -x CI_PIPELINE_SOURCE="push"
69declare -x CI_PIPELINE_URL="http://192.168.30.5/neo/alertmanager-webhook/-/pipelines/1866"
70declare -x CI_PROJECT_CLASSIFICATION_LABEL=""
71declare -x CI_PROJECT_DIR="/builds/neo/alertmanager-webhook"
72declare -x CI_PROJECT_ID="23"
73declare -x CI_PROJECT_NAME="alertmanager-webhook"
74declare -x CI_PROJECT_NAMESPACE="neo"
75declare -x CI_PROJECT_PATH="neo/alertmanager-webhook"
76declare -x CI_PROJECT_PATH_SLUG="neo-alertmanager-webhook"
77declare -x CI_PROJECT_REPOSITORY_LANGUAGES="java"
78declare -x CI_PROJECT_ROOT_NAMESPACE="neo"
79declare -x CI_PROJECT_TITLE="Alertmanager Webhook"
80declare -x CI_PROJECT_URL="http://192.168.30.5/neo/alertmanager-webhook"
81declare -x CI_PROJECT_VISIBILITY="public"
82declare -x CI_REGISTRY_PASSWORD="[MASKED]"
83declare -x CI_REGISTRY_USER="gitlab-ci-token"
84declare -x CI_REPOSITORY_URL="http://gitlab-ci-token:[MASKED]@192.168.30.5/neo/alertmanager-webhook.git"
85declare -x CI_RUNNER_DESCRIPTION="development"
86declare -x CI_RUNNER_EXECUTABLE_ARCH="linux/amd64"
87declare -x CI_RUNNER_ID="23"
88declare -x CI_RUNNER_REVISION="58ba2b95"
89declare -x CI_RUNNER_SHORT_TOKEN="GP-ozvd6"
90declare -x CI_RUNNER_TAGS="docker"
91declare -x CI_RUNNER_VERSION="14.2.0"
92declare -x CI_SERVER="yes"
93declare -x CI_SERVER_HOST="192.168.30.5"
94declare -x CI_SERVER_NAME="GitLab"
95declare -x CI_SERVER_PORT="80"
96declare -x CI_SERVER_PROTOCOL="http"
97declare -x CI_SERVER_REVISION="2da7c857960"
98declare -x CI_SERVER_URL="http://192.168.30.5"
99declare -x CI_SERVER_VERSION="14.2.1"
100declare -x CI_SERVER_VERSION_MAJOR="14"
101declare -x CI_SERVER_VERSION_MINOR="2"
102declare -x CI_SERVER_VERSION_PATCH="1"
103declare -x FF_CMD_DISABLE_DELAYED_ERROR_LEVEL_EXPANSION="false"
104declare -x FF_DISABLE_UMASK_FOR_DOCKER_EXECUTOR="false"
105declare -x FF_ENABLE_BASH_EXIT_CODE_CHECK="false"
106declare -x FF_GITLAB_REGISTRY_HELPER_IMAGE="true"
107declare -x FF_NETWORK_PER_BUILD="false"
108declare -x FF_SCRIPT_SECTIONS="false"
109declare -x FF_SKIP_DOCKER_MACHINE_PROVISION_ON_CREATION_FAILURE="true"
110declare -x FF_SKIP_NOOP_BUILD_STAGES="true"
111declare -x FF_USE_DIRECT_DOWNLOAD="true"
112declare -x FF_USE_DYNAMIC_TRACE_FORCE_SEND_INTERVAL="false"
113declare -x FF_USE_FASTZIP="false"
114declare -x FF_USE_LEGACY_KUBERNETES_EXECUTION_STRATEGY="false"
115declare -x FF_USE_NEW_BASH_EVAL_STRATEGY="false"
116declare -x FF_USE_POWERSHELL_PATH_RESOLVER="false"
117declare -x FF_USE_WINDOWS_LEGACY_PROCESS_STRATEGY="true"
118declare -x GITLAB_CI="true"
119declare -x GITLAB_FEATURES=""
120declare -x GITLAB_USER_EMAIL="neo@t.com"
121declare -x GITLAB_USER_ID="2"
122declare -x GITLAB_USER_LOGIN="neo"
123declare -x GITLAB_USER_NAME="neo"
124declare -x HOME="/root"
125declare -x HOSTNAME="runner-gp-ozvd6-project-23-concurrent-0"
126declare -x JAVA_HOME="/usr/java/openjdk-17"
127declare -x JAVA_VERSION="17"
128declare -x LANG="C.UTF-8"
129declare -x MAVEN_HOME="/usr/share/maven"
130declare -x OLDPWD="/"
131declare -x PATH="/usr/java/openjdk-17/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin"
132declare -x PWD="/builds/neo/alertmanager-webhook"
133declare -x SHLVL="1"

11.6.3.2. Git submodule


variables:
  GIT_SUBMODULE_STRATEGY: recursive

11.6.3.3. 通过条件，设置变量


job:
variables:
  DEPLOY_VARIABLE: "default-deploy"
rules:
  - if: $CI_COMMIT_REF_NAME == $CI_DEFAULT_BRANCH
    variables:                              # Override DEPLOY_VARIABLE defined
      DEPLOY_VARIABLE: "deploy-production"  # at the job level.
  - if: $CI_COMMIT_REF_NAME =~ /feature/
    variables:
      IS_A_FEATURE: "true"                  # Define a new variable.
script:
  - echo "Run script with $DEPLOY_VARIABLE as an argument"
  - echo "Run another script if $IS_A_FEATURE exists"

例子


build-job:
  stage: build
  image: registry.ejiayou.com/share/maven:3.8.6-openjdk-8
  variables:
    VERSION: -SNAPSHOT
  rules:
    - if: $CI_COMMIT_BRANCH == master
      variables:
        VERSION: ".RELEASE"
    - if: $CI_COMMIT_BRANCH == grey
      variables:
        VERSION: ".RELEASE"
  before_script:
    - rm -rf /root/.m2/repository/com/other/*
    - sed -i "s/\"dev\"/\"${CI_COMMIT_BRANCH}\"/" ${MODULE}/src/main/resources/log4j2.xml
    - sed -i "s/2\.3\.7\.RELEASE/2\.7\.7/" ${MODULE}/pom.xml
  script:
    - mvn -U -T 1C clean package -Densd.version=$VERSION
  after_script:
    - md5sum ${MODULE}/target/*.jar
  only:
    - dev
    - test
    - grey
    - master
  tags:
    - kubernetes
  artifacts:
    name: "$CI_PROJECT_NAME"
    paths:
      - ${MODULE}/target/*.jar

11.6.4. script /before_script / after_script

before_script: 在 pipeline 运行前执行脚本

after_script: 在 pipeline 完成之后执行脚本


cache:
  paths:
    - node_modules
    - dist

before_script:
  - cnpm install

stages:
  - build
  - test
  - deploy

build-dev-job:
  stage: build
  only:
    - development
  script:
    - npm run build:dev

build-test-job:
  stage: build
  only:
    - testing
  script:
    - npm run build:stage

build-prod-job:
  stage: build
  only:
    - master
  script:
    - npm run build:prod

test-job:
  stage: test
  variables:
    GIT_STRATEGY: none
  script:
    - echo "Running unit tests..."
    - find dist/
    - echo "Test complete."

deploy-dev-job:
  stage: deploy
  variables:
    GIT_STRATEGY: none
  only:
    - development
  script:
    - echo "Deploying application..."
    - rsync -auzv --delete dist/* www@192.168.30.11:/opt/netkiller.cn/admin.netkiller.cn/
    - echo "Application successfully deployed."

deploy-test-job:
  stage: deploy
  variables:
    GIT_STRATEGY: none
  only:
    - testing
  script:
    - echo "Deploying application..."
    - rsync -auzv --delete dist/* www@192.168.30.10:/opt/netkiller.cn/admin.netkiller.cn/
    - echo "Application successfully deployed."

deploy-prod-job:
  stage: deploy
  variables:
    GIT_STRATEGY: none
  only:
    - master
  script:
    - echo "Deploying application..."
    - rsync -auzv --delete dist/* www@139.16.10.12:/opt/netkiller.cn/admin.netkiller.cn/
    - echo "Application successfully deployed."

11.6.4.1. 条件判断


script:
    - (if [ "$flag" == "true" ]; then kubectl apply -f demo1 --record=true; else kubectl apply -f demo2 --record=true; fi);



deploy-dev:
	image: maven
	environment: dev
	tags:
	 - kubectl
	script:
	 - if [ "$flag" == "true" ]; then MODULE="demo1"; else MODULE="demo2"; fi
	 - kubectl apply -f ${MODULE} --record=true

11.6.4.2. 多行脚本


release-job:
  stage: release
  tags:
    - shell
  only:
    - master
  script:
    - |
      echo -e "
      @sfzito:registry=http://${CI_SERVER_HOST}/api/v4/projects/${CI_PROJECT_ID}/packages/npm/
      //${CI_SERVER_HOST}/api/v4/projects/${CI_PROJECT_ID}/packages/npm/:_authToken=${CI_JOB_TOKEN}
      " > .npmrc
    - cnpm publish
  when: manual



script: |
    if [ "$flag" == "true" ]; then
      kubectl apply -f demo1 --record=true
    else
      kubectl apply -f demo2 --record=true
    fi



deploy-dev:
image: testimage
environment: dev
tags:
  - kubectl
script:
  - >
    if [ "$flag" == "true" ]; then
      kubectl apply -f demo1 --record=true
    else
      kubectl apply -f demo2 --record=true
    fi

11.6.5. only and except

only 用于匹配分支


deploy_job:
  stage: deploy
  script:
    - echo Deploy OK
  only:
    - master
  when: manual

only 可是使用正则表达式，还可能与 except 一同使用，用于排除分支


job:
  # use regexp
  only:
    - /^issue-.*$/
  # use special keyword
  except:
    - branches

使用关键字


job:
  # use special keywords
  only:
    - tags
    - triggers

only和except允许使用特殊的关键字：

  • branches 匹配所有 git 分支
  • tags 匹配所有 git tag
  • triggers

11.6.5.1. 匹配 feature / hotfix 分支


  only:  # 只对 feature/.* 开头 和 以 feature-.* 开头分支有效
    - /^feature\/.*$/
    - /^feature-.*$/
    - /^hotfix\/.*$/
    - /^hotfix-.*$/

匹配 feature / hotfix 分支



deploy-feature-job:
  stage: deploy
  variables:
    GIT_STRATEGY: none
    HOST: 192.168.30.14
    # DOCKER_HOST: unix:///var/run/docker.sock mvn clean install docker:build
  environment:
    name: feature
    url: https://api.netkiller.cn
  only:
    - /^feature\/.*/
  tags:
    - shell
  before_script:
    - mvn docker:build -DpushImage
    - rm -rf *.sql.gz
    - mysqldump -hmysql.netkiller.cn test | gzip > test.$(date -u +%Y-%m-%d.%H:%M:%S).sql.gz
  artifacts:
    name: "$CI_PROJECT_NAME"
    paths:
      - ./*.sql.gz
  script:
    - scp src/main/docker/docker-compose.yaml www@$HOST:/opt/netkiller.cn/api.netkiller.cn/
    - ssh www@$HOST "sudo docker-compose -f /opt/netkiller.cn/api.netkiller.cn/docker-compose.yaml up"
    - ssh www@$HOST "sudo docker-compose -f /opt/netkiller.cn/api.netkiller.cn/docker-compose.yaml restart"
  when: manual

deploy-hotfix-job:
  stage: deploy
  variables:
    GIT_STRATEGY: none
    HOST: 192.168.30.14
  environment:
    name: hotfix
    url: https://api.netkiller.cn
  only:
    - /^hotfix\/.*/
  tags:
    - shell
  before_script:
    - mvn docker:build -DpushImage
    - rm -rf *.sql.gz
    - mysqldump -hmysql.netkiller.cn test | gzip > test.$(date -u +%Y-%m-%d.%H:%M:%S).sql.gz
  artifacts:
    name: "$CI_PROJECT_NAME"
    paths:
      - ./*.sql.gz
  script:
    - scp src/main/docker/docker-compose.yaml www@$HOST:/opt/netkiller.cn/api.netkiller.cn/
    - ssh www@$HOST "sudo docker-compose -f /opt/netkiller.cn/api.netkiller.cn/docker-compose.yaml up"
    - ssh www@$HOST "sudo docker-compose -f /opt/netkiller.cn/api.netkiller.cn/docker-compose.yaml restart"
  when: manual

11.6.5.2. 监控文件变化


docker build:
  script: docker build -t netkiller:$CI_COMMIT_REF_SLUG .
  only:
    refs:
      - branches
    changes:
      - Dockerfile
      - dockerfiles/**/*
      - more_scripts/*.{rb,py,sh}
      - "**/*.json"

11.6.6. 构建物

保留 api.netkiller.cn/target/*.jar 文件


cache:
#   untracked: true
  paths:
    - api.netkiller.cn/target/

stages:
  - build
  - test
  - deploy
  - database

build-job:
  stage: build
  before_script:
    - wechat -t 1 api.netkiller.cn $CI_COMMIT_AUTHOR 在 $CI_COMMIT_BRANCH 分支提交了代码 $CI_COMMIT_MESSAGE 正在构建中
    - voice $(echo "$CI_COMMIT_AUTHOR" | cut -d ' ' -f1) 在 API 项目 $CI_COMMIT_BRANCH 分支提交了代码，正在构建中
    - if [ "$CI_PIPELINE_SOURCE" == "schedule" ]; then mvn clean; fi
  after_script:
    - wechat -t 1 api.netkiller.cn $CI_COMMIT_AUTHOR 在 $CI_COMMIT_BRANCH 分支代码完成编译和打包
  script:
    - mvn -T 1C -Dmaven.test.skip=true package
    - md5sum */target/*.jar
  artifacts:
    name: "$CI_PROJECT_NAME"
    paths:
      - api.netkiller.cn/target/*.jar

所有git没有追踪的文件视为构建物


artifacts:
  untracked: true

11.6.6.1. 禁止 job 下载构建物


job:
  stage: build
  script: make build
  dependencies: []

11.6.7. 允许失败

设置当一个job运行失败之后并不影响后续的CI构建过程


job1:
  stage: build
  script:
  - execute_script_that_will_fail

job2:
  stage: test
  script:
  - execute_script_that_will_succeed
  allow_failure: true

job3:
  stage: deploy
  script:
  - deploy_to_staging

11.6.8. 定义何时开始job

when: 可以是on_success，on_failure，always或者manual

when可以设置以下值：

  • on_success: 只有前面stages的所有工作成功时才执行。 这是默认值。
  • on_failure: 当前面stages中任意一个jobs失败后执行。
  • always: 无论前面stages中jobs状态如何都执行。
  • manual: 手动执行

11.6.9. services


services:
- mysql

variables:
  # Configure mysql service (https://hub.docker.com/_/mysql/)
  MYSQL_DATABASE: hello_world_test
  MYSQL_ROOT_PASSWORD: mysql

connect:
  image: mysql
  script:
  - echo "SELECT 'OK';" | mysql --user=root --password="$MYSQL_ROOT_PASSWORD" --host=mysql "$MYSQL_DATABASE"

11.6.10. tags

在 gitlab-runner register 的时候会提示：Please enter the gitlab-ci tags for this runner (comma separated):

如果你输入了标签就需要在 Pipeline 中设置 tags 否则 Pipeline 将不运行。


  only:
    - master
  tags:
    - ansible




# This file is a template, and might need editing before it works on your project.
# This is a sample GitLab CI/CD configuration file that should run without any modifications.
# It demonstrates a basic 3 stage CI/CD pipeline. Instead of real tests or scripts,
# it uses echo commands to simulate the pipeline execution.
#
# A pipeline is composed of independent jobs that run scripts, grouped into stages.
# Stages run in sequential order, but jobs within stages run in parallel.
#
# For more information, see: https://docs.gitlab.com/ee/ci/yaml/README.html#stages

stages:          # List of stages for jobs, and their order of execution
  - build
  - test
  - deploy

build-job:       # This job runs in the build stage, which runs first.
  stage: build
  tags:
    - neo
  script:
    - echo "Compiling the code..."
    - echo "Compile complete."

unit-test-job:   # This job runs in the test stage.
  stage: test    # It only starts when the job in the build stage completes successfully.
  tags:
    - neo
  script:
    - echo "Running unit tests... This will take about 60 seconds."
    - sleep 60
    - echo "Code coverage is 90%"

lint-test-job:   # This job also runs in the test stage.
  stage: test    # It can run at the same time as unit-test-job (in parallel).
  script:
    - echo "Linting code... This will take about 10 seconds."
    - sleep 10
    - echo "No lint issues found."

deploy-job:      # This job runs in the deploy stage.
  stage: deploy  # It only runs when *both* jobs in the test stage complete successfully.
  script:
    - echo "Deploying application..."
    - echo "Application successfully deployed."

11.6.11. rules 规则


job-name:
  script:
    - echo "i am potato"
  rules:
    - if: '$CI_COMMIT_BRANCH != "potato"'

11.6.11.1. 条件判断


workflow:
  rules:
    - if: '$CI_PIPELINE_SOURCE == "schedule"'
      when: never
    - if: '$CI_PIPELINE_SOURCE == "push"'
      when: never
    - when: always

job:
  script: "echo Hello, Rules!"
  rules:
    - if: '$CI_MERGE_REQUEST_TARGET_BRANCH_NAME == "master"'
      when: always
    - if: '$VAR =~ /pattern/'
      when: manual
    - when: on_success

11.6.12. include 包含


include:
  - local: '.gitlab-ci-development.yml'
    rules:
      - if: '$CI_COMMIT_BRANCH == "development"'
  - local: '.gitlab-ci-staging.yml'
    rules:
      - if: '$CI_COMMIT_BRANCH == "staging"'



include:
  - local: builds.yml
    rules:
      - exists:
          - file.md




include: 'configs/*.yml'

# This matches all `.yml` files in `configs` and any subfolder in it.
include: 'configs/**.yml'

# This matches all `.yml` files only in subfolders of `configs`.
include: 'configs/**/*.yml'

11.6.13. 模版


demo1-deploy-dev:
  extends: .deploy-dev
  only:
    variables: [ $flag == "true" ]
  variables:
    MODULE: demo1

demo2-deploy-dev:
  extends: .deploy-dev
  only:
    variables: [ $flag == "false" ]
  variables:
    MODULE: demo2

.deploy-dev:
image: testimage
environment: dev
tags:
  - kubectl
script:
  - kubectl apply -f ${MODULE} --record=true




cache:
  untracked: true

stages:
  - build
  # - test
  - deploy

build development:
  stage: build
  tags:
    - cloud
  only:
    - development
  except:
    - feature
  script:
    - mvn -T 1C -Dmaven.test.skip=true clean package
  # when: manual

# unit-test-job:
#   stage: test
#   script:
#     - echo "Running unit tests... This will take about 60 seconds."
#     - echo "Code coverage is 90%"

# lint-test-job:
#   stage: test
#   script:
#     - echo "Linting code... This will take about 10 seconds."
#     - echo "No lint issues found."

deploy development:
  stage: deploy
  tags:
    - cloud
  only:
    - development
  script:
    - \cp -f auth/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
    - \cp -f gateway/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
    - \cp -f modules/*/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
  after_script:
    - python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e experiment up
    - python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e experiment restart
  when: manual

gateway-dev:
  extends: .deploy-dev
  # only:
    # variables: [ $flag == "true" ]
  variables:
    MODULE: gateway
  environment:
    url: https://${MODULE}.netkiller.cn
  script:
    - \cp -f ${MODULE}/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn

auth-dev:
  extends: .deploy-dev
  variables:
    MODULE: auth
  script:
    - \cp -f ${MODULE}/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn

queue-dev:
  extends: .deploy-dev
  variables:
    MODULE: incar
  script:
    - \cp -f modules/queue/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn

ms-dev:
  extends: .deploy-dev
  variables:
    MODULE: ms
  script:
    - \cp -f modules/ms/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn

system-dev:
  extends: .deploy-dev
  variables:
    MODULE: system
  script:
    - \cp -f modules/system/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn

job-dev:
  extends: .deploy-dev
  variables:
    MODULE: job
  script:
    - \cp -f modules/job/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn


.deploy-dev:
  stage: deploy
  tags:
  - cloud
  only:
  - development
  environment:
    name: development
  when: manual
  # before_script:
    # - mvn -T 1C -Dmaven.test.skip=true clean package
    # - python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e experiment ps
  after_script:
    - python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e experiment up ${MODULE}
    - python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e experiment restart ${MODULE}

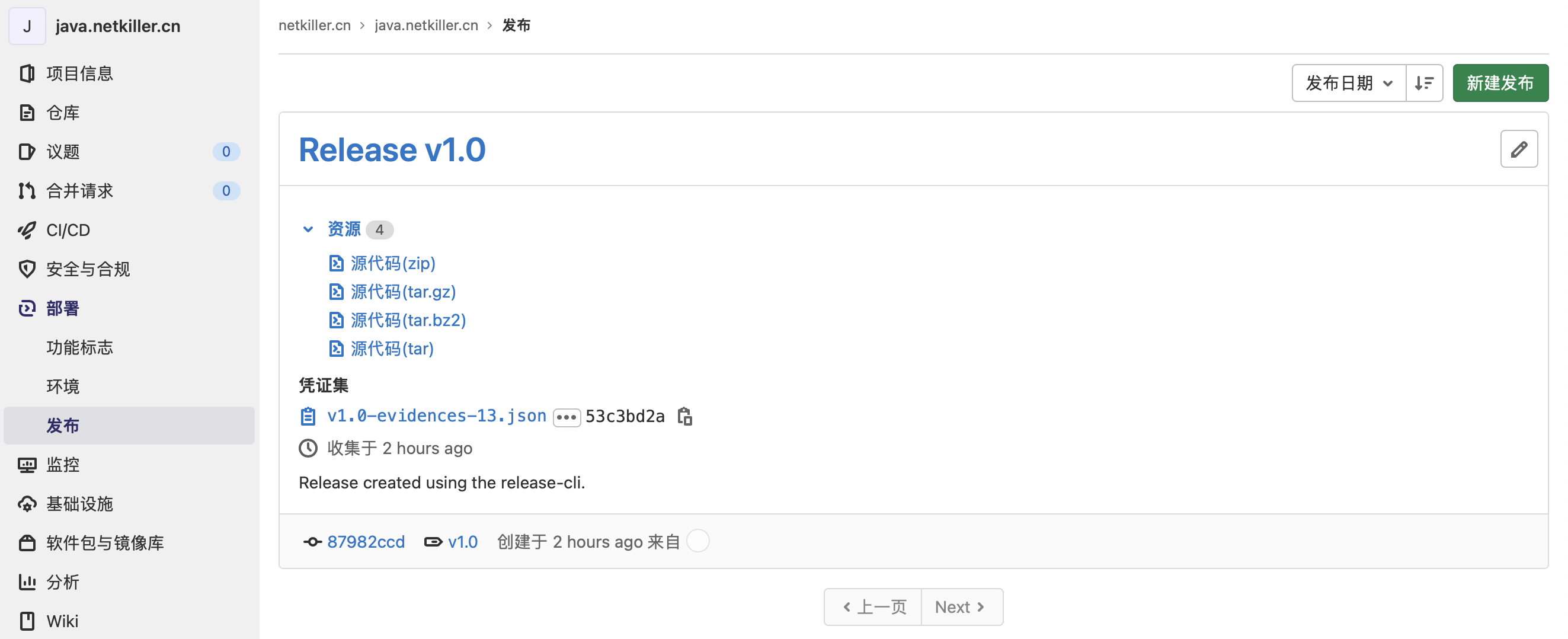

11.6.14. release


stages:
  - build
  - test
  - deploy
  - release

release_job:
  stage: release
  image: registry.gitlab.com/gitlab-org/release-cli:latest
  tags:
    - docker
  rules:
    - if: $CI_COMMIT_TAG                  # Run this job when a tag is created manually
  script:
    - echo 'Running the release job.'
  release:
    name: 'Release $CI_COMMIT_TAG'
    tag_name: '$CI_COMMIT_TAG'
    description: 'Release created using the release-cli.'

11.6.15. 应用案例

11.6.15.1. Java


before_script:
 - echo "Execute scripts which are required to bootstrap the application. !"

after_script:
 - echo "Clean up activity can be done here !."

stages:
 - build
 - test
 - package
 - deploy

variables:
 MAVEN_CLI_OPTS: "--batch-mode"
 MAVEN_OPTS: "-Dmaven.repo.local=.m2/repository"

cache:
 paths:
  - .m2/repository/
  - target/

build:
 stage: build
 image: maven:latest
 script:
  - mvn $MAVEN_CLI_OPTS clean compile

test:
 stage: test
 image: maven:latest
 script:
  - mvn $MAVEN_CLI_OPTS test

package:
 stage: package
 image: maven:latest
 script:
  - mvn $MAVEN_CLI_OPTS package
 artifacts:
  paths: [target/test-0.0.1.war]


deploy_test:
 stage: deploy
 script:
  - echo "########   To be defined   ########"
 environment: staging

deploy_prod:
 stage: deploy
 script:
  - echo "########   To be defined   ########"
 only:
  - master
 environment: production
使用 Docker 编译并收集构建物

#image: java:8
#image: maven:latest
image: maven:3.5.0-jdk-8

stages:
  - build
  - test
  - package

build:
  stage: build
  script: mvn compile

unittest:
  stage: test
  script: mvn test


package:
  stage: package
  script: mvn package
  artifacts:
    paths:
      - target/java-project-0.0.1-SNAPSHOT.jar
Shell 执行器，远程部署物理机/虚拟机

cache:
  untracked: true

stages:
  - build
  - test
  - deploy

build-job:
  stage: build
  tags:
    - shell
  script:
    - mvn clean package -Dmaven.test.skip=true
    - ls target/*.jar
  artifacts:
    name: "$CI_PROJECT_NAME"
    paths:
      - target/*.jar

test-job:
  stage: test
  variables:
    GIT_STRATEGY: none
  only:
    - tags
    - testing
  script:
    - mvn test

deploy-job:
  stage: deploy
  variables:
    GIT_STRATEGY: none
    HOST: 192.168.30.14
  environment:
    name: development
    url: https://api.netkiller.cn
  only:
    - development
  tags:
    - shell
  before_script:
    - rm -rf *.sql.gz
    - mysqldump -hmysql.netkiller.cn test | gzip > test.$(date -u +%Y-%m-%d.%H:%M:%S).sql.gz
  # after_script:
  artifacts:
    name: "$CI_PROJECT_NAME"
    paths:
      - ./*.sql.gz
  script:
    - rsync -auzv target/*.jar www@$HOST:/opt/netkiller.cn/api.netkiller.cn/
    - ssh -f -C -q www@$HOST "pkill java; sleep 5; java -jar /opt/netkiller.cn/api.netkiller.cn/alertmanager-0.0.1.jar >/dev/null 2>&1 &"
Shell 执行器，远程部使用容器启动项目

cache:
  untracked: true

stages:
  - build
  - test
  - deploy

build-job:
  stage: build
  tags:
    - shell
  script:
    - mvn clean package -Dmaven.test.skip=true
    - ls target/*.jar
  artifacts:
    name: "$CI_PROJECT_NAME"
    paths:
      - target/*.jar

test-job:
  stage: test
  variables:
    GIT_STRATEGY: none
  only:
    - tags
    - testing
  script:
    - mvn test

deploy-job:
  stage: deploy
  variables:
    GIT_STRATEGY: none
    HOST: 192.168.30.14
  environment:
    name: development
    url: https://api.netkiller.cn
  only:
    - development
  tags:
    - shell
  before_script:
    - rm -rf *.sql.gz
    - mysqldump -hmysql.netkiller.cn test | gzip > test.$(date -u +%Y-%m-%d.%H:%M:%S).sql.gz
  # after_script:
  artifacts:
    name: "$CI_PROJECT_NAME"
    paths:
      - ./*.sql.gz
  script:
    - rsync -auzv target/*.jar www@$HOST:/opt/netkiller.cn/api.netkiller.cn/
    - rsync -auzv src/main/docker/development/docker-compose.yaml www@$HOST:/opt/netkiller.cn/api.netkiller.cn/
    - ssh www@$HOST "sudo docker-compose -f /opt/netkiller.cn/api.netkiller.cn/docker-compose.yaml up -d api"
    - ssh www@$HOST "sudo docker-compose -f /opt/netkiller.cn/api.netkiller.cn/docker-compose.yaml restart api"
Docker 执行器

cache:
  untracked: true

stages:
  - build
  - test
  - deploy

build-job:
  image: maven:3.8.2-openjdk-17
  stage: build
  tags:
    - docker
  script:
    - mvn clean package -Dmaven.test.skip=true
    - ls target/*.jar
  artifacts:
    name: "$CI_PROJECT_NAME"
    paths:
      - target/*.jar

test-job:
  image: maven:3.8.2-openjdk-17
  stage: test
  variables:
    GIT_STRATEGY: none
  tags:
    - docker
  script:
    - mvn test

deploy-job:
  stage: deploy
  variables:
    GIT_STRATEGY: none
    HOST: 192.168.30.14
  environment:
    name: development
    url: https://api.netkiller.cn
  only:
    - development
  tags:
    - shell
  before_script:
    # - DOCKER_HOST=unix:///var/run/docker.sock mvn clean install docker:build
    - mvn docker:build -DpushImage
    # - mvn docker:push
    - rm -rf *.sql.gz
    - mysqldump -hmysql.netkiller.cn test | gzip > test.$(date -u +%Y-%m-%d.%H:%M:%S).sql.gz
  artifacts:
    name: "$CI_PROJECT_NAME"
    paths:
      - ./*.sql.gz
  script:
    - scp src/main/docker/docker-compose.yaml www@$HOST:/opt/netkiller.cn/api.netkiller.cn/
    - ssh www@$HOST "sudo docker-compose -f /opt/netkiller.cn/api.netkiller.cn/docker-compose.yaml up"
    - ssh www@$HOST "sudo docker-compose -f /opt/netkiller.cn/api.netkiller.cn/docker-compose.yaml restart"

11.6.15.2. Node


cache:
  paths:
    - node_modules
    # - dist

stages:
  - build
  # - test
  - deploy

build-job:
  stage: build
  script:
    - npm install
#     - yarn install
#     - yarn run build

# unit-test-job:
#   stage: test
#   script:
#     - yarn run test

# lint-test-job:
#   stage: test
#   script:
#     - yarn run lint

deploy-job:
  stage: deploy
  script:
    - rsync -auzv --delete * www@192.168.30.10:/opt/netkiller.cn/www.netkiller.cn/
    - ssh www@192.168.0.10 "sudo pm2 --update-env restart /opt/netkiller.cn/www.netkiller.cn/main.js"

11.6.15.3. vue.js android


build site:
  image: node:6
  stage: build
  script:
    - npm install --progress=false
    - npm run build
  artifacts:
    expire_in: 1 week
    paths:
      - dist

unit test:
  image: node:6
  stage: test
  script:
    - npm install --progress=false
    - npm run unit

deploy:
  image: alpine
  stage: deploy
  script:
    - apk add --no-cache rsync openssh
    - mkdir -p ~/.ssh
    - echo "$SSH_PRIVATE_KEY" >> ~/.ssh/id_dsa
    - chmod 600 ~/.ssh/id_dsa
    - echo -e "Host *\n\tStrictHostKeyChecking no\n\n" > ~/.ssh/config
    - rsync -rav --delete dist/ user@server.com:/your/project/path/

11.6.15.4. Python


cache:
  # key: $CI_COMMIT_REF_SLUG
  paths:
    - .pytest_cache
    - __pycache__

stages:
  - build
  - test
  - report

build-job:
  stage: build
  tags:
    - shell
  script:
    - pip3 install -r requirements.txt

unit-test-job:
  stage: test
  tags:
    - shell
  before_script:
    - wechat -t 2 开始接口自动化测试
  after_script:
    - wechat -t 2 接口自动化测试完成
  script:
    - cd api_test
    - pytest --no-header --tb=no --alluredir=/dev/shm/allure-results --clean-alluredir | wechat -t 2 --stdin
    # - wechat -t 2 "$(cat output.log)"

# lint-test-job:
#   stage: test
#   tags:
#     - shell
#   script:
#     - pip3 install pylint
#     - pylint -j 4 api_test/*

report-job:
  stage: report
  tags:
    - shell
  after_script:
    - wechat -t 2 测试报告 http://test.netkiller.cn/test/index.html
  script:
    - allure generate /dev/shm/allure-results -o /dev/shm/allure-report --clean
    - lrsync '/dev/shm/allure-report/*' www@test.netkiller.cn:/opt/netkiller.cn/test.netkiller.cn/test/

11.6.15.5. docker


cache:
  untracked: true

stages:
  - build
  - test
  - deploy

build-job:
  image: maven:3.8.2-openjdk-17
  stage: build
  tags:
    - docker
  script:
    - mvn clean package -Dmaven.test.skip=true
    - ls target/*.jar
  artifacts:
    name: "$CI_PROJECT_NAME"
    paths:
      - target/*.jar

test-job:
  image: maven:3.8.2-openjdk-17
  stage: test
  variables:
    GIT_STRATEGY: none
  tags:
    - docker
  script:
    - mvn test

deploy-job:
  stage: deploy
  variables:
    GIT_STRATEGY: none
    HOST: 192.168.30.14
    DOCKER_HOST: unix:///var/run/docker.sock mvn clean install docker:build
  environment:
    name: development
    url: https://api.netkiller.cn
  only:
    - development
  tags:
    - shell
  before_script:
    - mvn docker:build -DpushImage
    # - mvn docker:push
    - rm -rf *.sql.gz
    - mysqldump -hmysql.netkiller.cn test | gzip > test.$(date -u +%Y-%m-%d.%H:%M:%S).sql.gz
  artifacts:
    name: "$CI_PROJECT_NAME"
    paths:
      - ./*.sql.gz
  script:
    - scp src/main/docker/docker-compose.yaml www@$HOST:/opt/netkiller.cn/api.netkiller.cn/
    - ssh www@$HOST "sudo docker-compose -f /opt/netkiller.cn/api.netkiller.cn/docker-compose.yaml up"
    - ssh www@$HOST "sudo docker-compose -f /opt/netkiller.cn/api.netkiller.cn/docker-compose.yaml restart"

11.6.15.6. include 高级用法

.gitlab-ci.yml


cache:
  key: ${CI_COMMIT_REF_SLUG}
  # untracked: true
  paths:
    - dist

stages:
  - build
  # - test
  - deploy
  # - docker

build-job:
  stage: build
  tags:
    - feature
  only:
    - split
  except:
    - development
  script:
    # - mvn -T 1C -Dmaven.test.skip=true clean package
    - mvn -Dmaven.test.skip=true clean package

include:
  - '.gitlab-ci-docker.yml'
  - local: '.gitlab-ci-development.yml'
    rules:
      - if: '$CI_COMMIT_BRANCH == "development"'
  - local: '.gitlab-ci-staging.yml'
    rules:
      - if: '$CI_COMMIT_BRANCH == "staging"'

.gitlab-ci-development.yml


build development:
  stage: build
  # tags:
    # - cloud
  only:
    - development
  except:
    - feature
  before_script:
    - rm -rf dist && mkdir -p dist
  script:
    - mvn -T 1C -Dmaven.test.skip=true clean package
    # - mvnd clean package
  after_script:
    - find . \( ! -path "*/common/*" -a ! -path "*/lib/*" -a ! -path "./dist/*" -a ! -path "./api/*" \) -type f -name "*.jar" -exec \cp -af {} dist \;
    - find dist/ -type f -name "*.jar" -exec md5sum {} \;
  # when: manual

all-in-one:
  stage: deploy
  # tags:
    # - cloud
  only:
    - development
  script:
    # - \cp -af auth/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
    # - \cp -af gateway/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
    # - \cp -af modules/*/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
    # - \cp -af visual/*/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
    - \cp -af dist/*.jar /opt/netkiller.cn/cloud.netkiller.cn
  after_script:
    - python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e experiment up auth incar ms system job activiti chain gateway
    - python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e experiment restart up auth incar ms system job activiti chain gateway
  when: manual


gateway:
  extends: .deploy-dev
  # only:
    # variables: [ $flag == "true" ]
  variables:
    MODULE: gateway
  environment:
    url: https://${MODULE}.netkiller.cn
  script:
    - \cp -af dist/${MODULE}.jar /opt/netkiller.cn/cloud.netkiller.cn

auth:
  extends: .deploy-dev
  variables:
    MODULE: auth
  script:
    - \cp -af dist/${MODULE}.jar /opt/netkiller.cn/cloud.netkiller.cn

incar:
  extends: .deploy-dev
  variables:
    MODULE: incar
  script:
    - \cp -af modules/incar/src/main/resources/CFCA /opt/netkiller.cn/cloud.netkiller.cn/
    - \cp -af dist/incar.jar /opt/netkiller.cn/cloud.netkiller.cn

ms:
  extends: .deploy-dev
  variables:
    MODULE: ms
  script:
    - \cp -af dist/ms.jar /opt/netkiller.cn/cloud.netkiller.cn

system:
  extends: .deploy-dev
  variables:
    MODULE: system
  script:
    - \cp -af dist/system.jar /opt/netkiller.cn/cloud.netkiller.cn

job:
  extends: .deploy-dev
  variables:
    MODULE: job
  script:
    - \cp -af dist/job.jar /opt/netkiller.cn/cloud.netkiller.cn

activiti:
  extends: .deploy-dev
  variables:
    MODULE: activiti
  script:
    - \cp -af dist/activiti.jar /opt/netkiller.cn/cloud.netkiller.cn

chain:
  extends: .deploy-dev
  variables:
    MODULE: chain
  script:
    - \cp -af dist/chain.jar /opt/netkiller.cn/cloud.netkiller.cn

msg:
  extends: .deploy-dev
  variables:
    MODULE: msg
  script:
    - \cp -af dist/msg.jar /opt/netkiller.cn/cloud.netkiller.cn

xxl-job-admin:
  extends: .deploy-dev
  variables:
    MODULE: xxl-job-admin
  script:
    - \cp -af dist/xxl-job-admin.jar /opt/netkiller.cn/cloud.netkiller.cn

ev:
  extends: .deploy-dev
  variables:
    MODULE: ev
  script:
    - \cp -af dist/ev.jar /opt/netkiller.cn/cloud.netkiller.cn

sfapi:
  extends: .deploy-dev
  variables:
    MODULE: sfapi
  script:
    - \cp -af dist/sfapi.jar /opt/netkiller.cn/cloud.netkiller.cn

.deploy-dev:
  stage: deploy
  # tags:
  # - cloud
  only:
  - development
  environment:
    name: development
  when: manual
  # before_script:
    # - mvn -T 1C -Dmaven.test.skip=true clean package
  after_script:
    - python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e experiment up ${MODULE}
    - python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e experiment restart ${MODULE}
    - python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e experiment ps ${MODULE}

.gitlab-ci-staging.yml


staging build:
  stage: build
  only:
    - staging
  except:
    - feature
  before_script:
    - rm visual/report-platform/src/main/resources/bootstrap.yml
    - rm visual/report-platform/src/main/resources/bootstrap-stage.yml
    # - mv visual/report-platform/src/main/resources/bootstrap-stage.yml visual/report-platform/src/main/resources/bootstrap.yml
    - ls visual/report-platform/src/main/resources/
  script:
    - mvn -T 1C -Dmaven.test.skip=true clean package

staging:
  stage: deploy
  only:
    - staging
  script:
    - \cp -f auth/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
    - \cp -f gateway/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
    - \cp -f modules/*/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
    - \cp -f visual/*/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
  after_script:
    - python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e stage up
    - python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e stage restart
  when: manual

report:
  extends: .deploy-template
  variables:
    MODULE: report
  environment:
    url: https://report.netkiller.cn
  script:
    - wechat -t 3 report.netkiller.cn $CI_COMMIT_AUTHOR Stage 环境「正在部署」
    - rsync -auzv visual/report-platform/target/*.jar docker@$HOST:/opt/netkiller.cn/cloud.netkiller.cn/

gateway:
  extends: .deploy-template
  # only:
    # variables: [ $flag == "true" ]
  variables:
    MODULE: gateway
  environment:
    url: https://${MODULE}.netkiller.cn
  script:
    - \cp -f ${MODULE}/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn

auth:
  extends: .deploy-template
  variables:
    MODULE: auth
  script:
    - \cp -f ${MODULE}/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn

incar:
  extends: .deploy-template
  variables:
    MODULE: incar
  script:
    - \cp -f modules/incar/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn

ms:
  extends: .deploy-template
  variables:
    MODULE: ms
  script:
    - \cp -f modules/ms/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn

system:
  extends: .deploy-template
  variables:
    MODULE: system
  script:
    - \cp -f modules/system/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn

job:
  extends: .deploy-template
  variables:
    MODULE: job
  script:
    - \cp -f modules/job/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn


.deploy-template:
  stage: deploy
  variables:
    HOST: uat.netkiller.cn
  # tags:
  # - cloud
  only:
  - staging
  environment:
    name: staging
  when: manual
  before_script:
    - ssh docker@$HOST "sqldump stage -z"
    - wechat -t 3 ${MODULE}.netkiller.cn $CI_COMMIT_AUTHOR Stage 环境「备份数据库」
    # - ssh docker@$HOST "mdump stage -z"
    # - ssh docker@$HOST "cp /opt/netkiller.cn/api.netkiller.cn/admin.jar /opt/backup/admin.$(date +%Y-%m-%d.%H:%M:%S).jar"
    # - rm -rf *.json.gz
    # - redis-dump -h 192.168.30.10 -d '0' | gzip > redis.db0.$(date +%Y-%m-%d.%H:%M:%S).json.gz
    # - ssh docker@$HOST "sudo docker-compose -f /opt/netkiller.cn/ops.netkiller.cn/docker-compose.yaml exec -it redis redis-cli -n 0 flushdb"
  after_script:
    # - md5sum admin/target/*.jar
    - ssh docker@$HOST "md5sum /opt/netkiller.cn/cloud.netkiller.cn/*.jar"
    - ssh docker@$HOST "python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e stage up ${MODULE}"
    - ssh docker@$HOST "python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e stage restart ${MODULE}"
    - ssh docker@$HOST "python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e stage ps"
    - wechat -t 3 ${MODULE}.netkiller.cn $CI_COMMIT_AUTHOR Stage 环境「完成部署」

.gitlab-ci-feature.yml


build-feature-job:
  stage: build
  tags:
    - feature
  only:
    - feature
  except:
    - feature
  script:
    - mvn -T 1C -Dmaven.test.skip=true clean package
  # when: manual

# unit-test-job:
#   stage: test
#   script:
#     - echo "Running unit tests... This will take about 60 seconds."
#     - echo "Code coverage is 90%"

# lint-test-job:
#   stage: test
#   script:
#     - echo "Linting code... This will take about 10 seconds."
#     - echo "No lint issues found."

deploy-feature-job:
  stage: build
  tags:
    - cloud
  # variables:
    # HOST: 192.168.30.7
  environment:
    name: feature
    url: https://api.netkiller.cn
  only:
    # - /^feature\/.*/
    - feature
  before_script:
    - mvn -T 1C -Dmaven.test.skip=true clean package
  after_script:
    # - python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e experiment up
    - python3 /opt/netkiller.cn/ops.netkiller.cn/docker.py -e experiment restart
    - wechat -t 1 cloud.netkiller.cn $CI_COMMIT_AUTHOR 在 $CI_COMMIT_BRANCH 部署完毕
    # - voice 环境部署完成
  script:
    - \cp -f auth/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
    - \cp -f gateway/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
    - \cp -f modules/*/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
    - \cp -f visual/*/target/*.jar /opt/netkiller.cn/cloud.netkiller.cn
    # - cp -r admin/src/main/resources/CFCA /opt/netkiller.cn/api.netkiller.cn/
  # when: manual
上一页 上一级 下一页
11.5. CI / CD 起始页 11.7. 软件包与镜像库
